Removing, installing ADS control unit - AR32.32-P-0500GWX

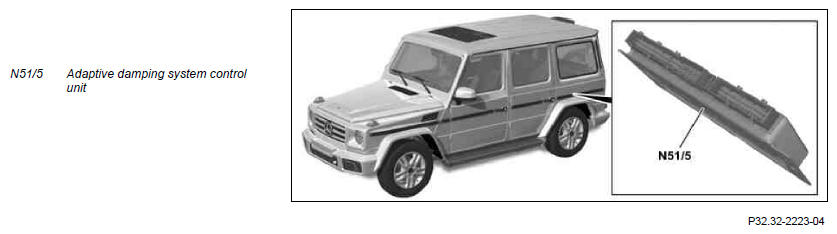

MODEL 463 with CODE A20 (Adjustable damping) with CODE ZQ0 (G 500 4x4 2 )
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of adaptive damping system control unit (N51/5) with XENTRY using software calibration number (SCN) | When replacing the adaptive damping system control unit (N51/5). | |
| Model 463 as of model year 2013 with code A20 (Adjustable damping) with code ZQ0 (G 500 4x42 ) |
AR54.21-P-0015GW | ||
| 2 | Switch off ignition and keep transmitter key at a location beyond transmitter range (at least 2 m) | ||

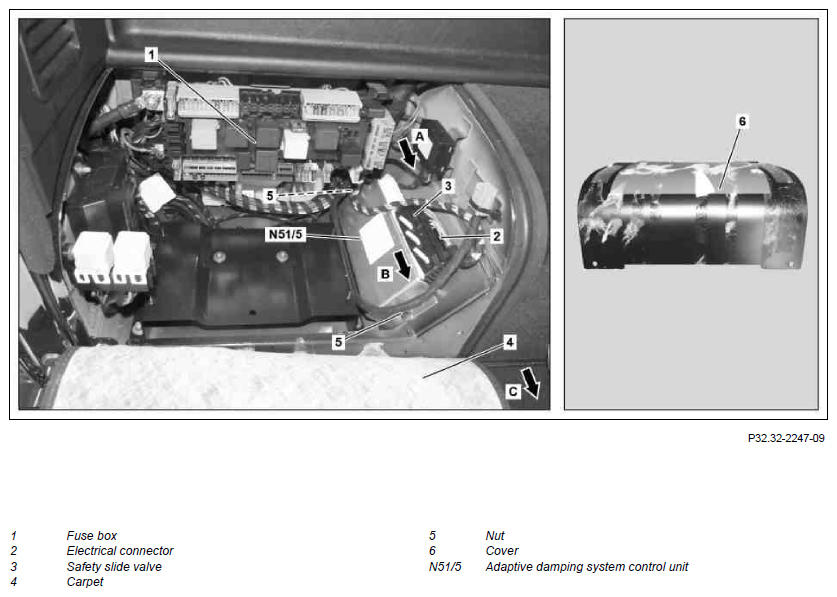

| 3 | Detach carpet (4) in direction of arrow (C) and fold back | ||
| 4 | Remove cover (6) | ||
| 5 | Unclip fuse box (1) | ||
| 6 | Pull fuse box (1) in direction of arrow (A) and place to one side with lines still connected | ||
| 7 | Push out retaining slider (3) at adaptive damping system control unit (N51/5) in direction of arrow (B) up to end stop and disconnect electrical connector (2) | ||
| 8 | Unscrew nuts (5) and remove ADS control unit (N51/5) | ||
| 9 | Install in the reverse order |
