Remove/install charge air temperature sensor - AR07.52-P-1466GW

ENGINES 157 in MODEL 463

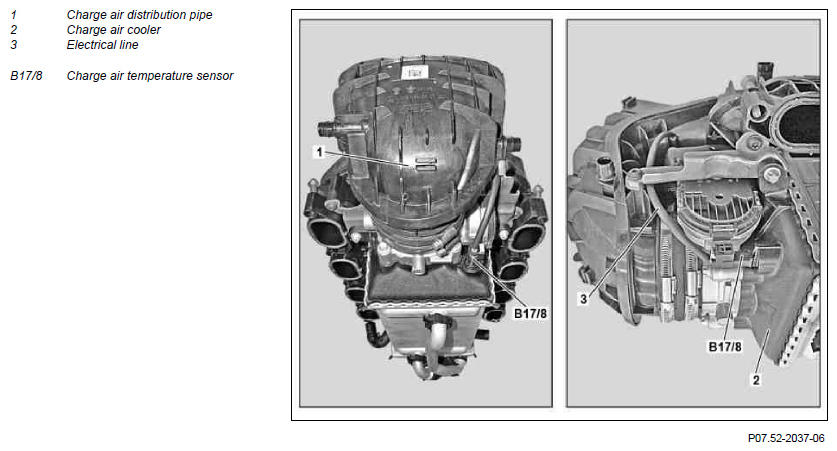

Fig 1: Charge Air Temperature Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove charge air manifold (1)		AR09.41-P-1310GW
2	Disconnect electrical line (3) from charge air temperature sensor (B17/8)
3	Remove charge air temperature sensor (B17/8)	Check for correct seating of sealing ring between charge air temperature sensor (B17/8) and charge air cooler (2).
4	Install in the reverse order
