Remove/install instrument cluster - AR54.30-P-6015GW
MODEL 463 as of model year 2013/facelift 2012
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Connect Star Diagnosis and perform initial startup of instrument cluster (A1) | When replacing the instrument cluster (A1) | AD00.00-P-2000-04A |
| 2 | Move steering wheel to rear and down | ||
| 3 | Switch off ignition | ||

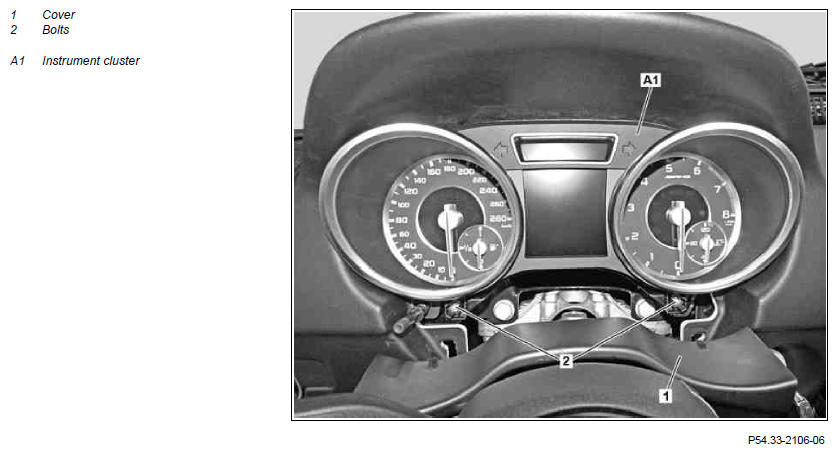

| 4 | Unclip cover (1) from instrument panel | Figure | |
| 5 | Remove bolts (2) | ||
| 6 | Unclip instrument cluster (A1) from instrument panel | ||
| 7 | Detach electrical connection from instrument cluster (A1) | ||
| 8 | Remove instrument cluster (A1) | ||
| 9 | Install in the reverse order |
