Remove/install front SAM control unit - AR54.21-P-1254GW
MODEL 463 as of model year 2013/facelift 2012
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Connect Star Diagnosis and perform initial startup of SAM control unit (N10) | When replacing SAM control unit (N10) | AD00.00-P-2000-04A |
| 2 | Switch off ignition | ||

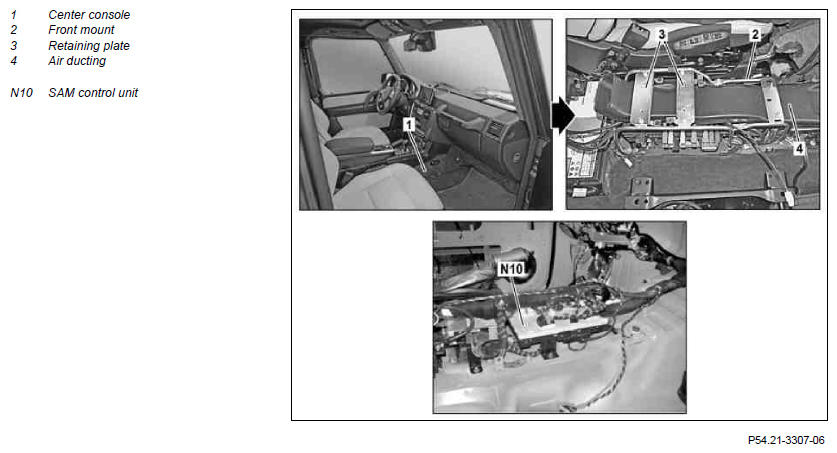

| 3 | Remove center console (1) | AR68.20-P-2000GW | |
| 4 | Remove front bracket (2) and retaining plates (3) | ||
| 5 | Pull air ducting (4) to rear and remove | ||
| 6 | Detach electrical connections from SAM control unit (N10) | ||
| 7 | Detach SAM control unit (N10) from bracket and remove | ||
| 8 | Install in the reverse order |
