Remove/install reading lamp in rear - AR82.20-P-1120GW

MODEL 463 (except 463.202) as of model year 2013/model refinement package 2012

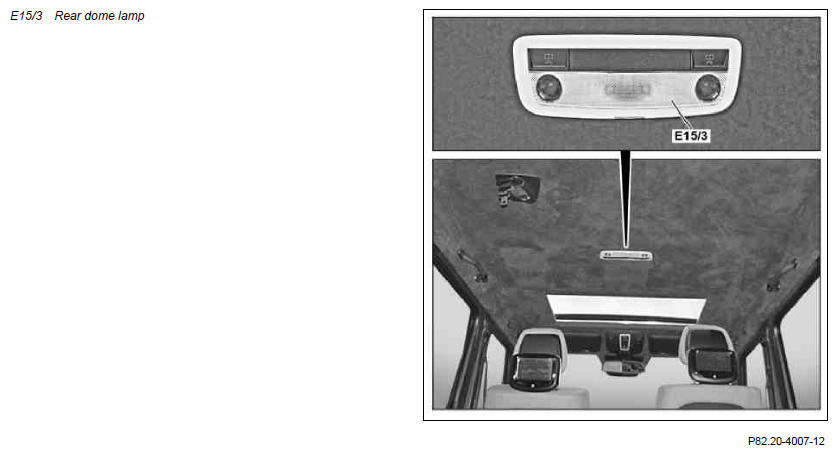

Fig 1: Rear Reading Lamp Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unclip rear dome lamp (E15/3) from headliner	Perform the unclipping and clipping with care. Otherwise the headliner and the rear dome lamp (E15/3) will be damaged.
			Figure
2	Disconnect electrical connector
3	Install in the reverse order

Fig 2: Identifying Assembly Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
