Remove/install ABS measuring ring - AR42.30-P-0160GW

MODEL 463 as of model year 2013/facelift 2012

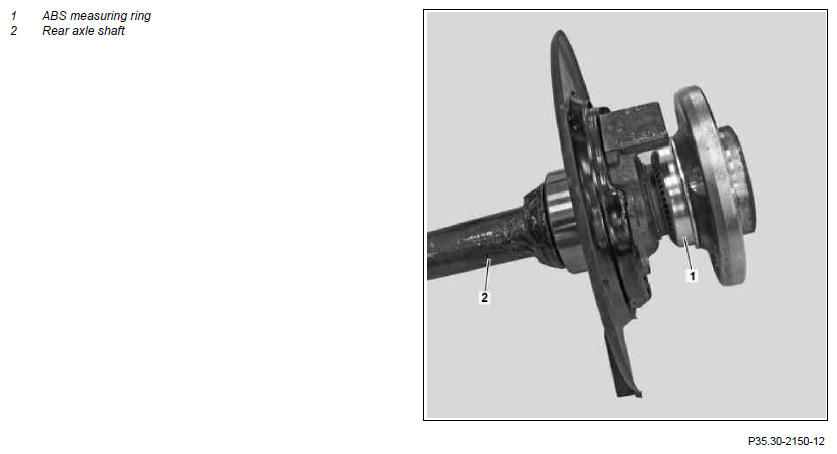

Fig 1: ABS Measuring Ring Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear-axle shaft (2)		AR35.30-P-0620GW
2	Disassemble rear axle shaft (2)		AR35.30-P-7351GW
3	Clamp in rear axle shaft (2)
4	Detach ABS measuring ring (1) using suitable tool from rear axle shaft	Heat new ABS measuring ring (1) up to approx. 80 °C and press on to rear axle shaft (2) using suitable tool.
5	Install in the reverse order
