Adjust parking brake - AR42.20-P-0540GI

MODEL 461 With disk brakes at the rear axle

MODEL 463 (except 463.270/271) up to model year 2013 with disk brakes at the rear axle

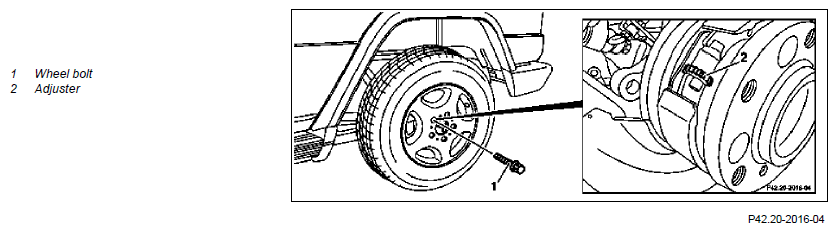

Fig 1: Adjust Parking Brake

Courtesy of MERCEDES-BENZ USA

	Adjust
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle		AR00.60-P-1000G
2	Screw out one lug bolt (1)	Wheel bolt to steel rim	*BA40.10-P-1001-01D
		Wheel bolt to light alloy rim	*BA40.10-P-1002-01D
3	Fully disengage parking brake and turn wheel so that the brake adjuster (2) is operated through the wheel bolt thread opening
4	Continue turning the adjuster (2) until the brake linings are resting against the drum surface
5	Turn brake adjuster (2) back three detents
6	Adjust parking brake on roller dynamometer	MODEL 461.302/304/332/334/342/344 With disk brakes at the rear axle MODEL 463.202/222/236/237/243/244/245/246/247/248/249/250/254/303/306/309/322/323/332/333/336/340/341/346 up to model year 2013 With disk brakes at the rear axle	AR42.20-P-0550GG
		MODEL 461.217/219/227/229/238/239/249/266/267/321/322/323/326/327/328/329/335/336/337/338/341/365/366/367/368/401/402/403/404/405/450/451/452/454/455/456/458/459 With disk brakes at the rear axle MODEL 463.204/206/207/208/209/220/221/224/225/227/228/230/231/232/233/240/241/300/304/307/308/320/321/324/325/327/328/330/331 up to model year 2013 With disk brakes at the rear axle	AR42.20-P-0550GX
