Remove/install guide tube for tilting/sliding roof control cable - AR77.20-P-1410GW

MODEL 463 (except 463.202) as of model year 2013/model refinement package 2012

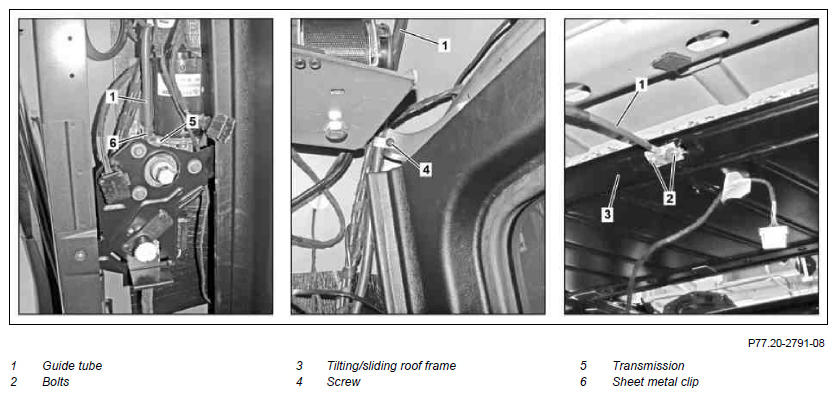

Fig 1: Tilting/Sliding Roof Control Cable Guide Tube Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove operating cable from tilting/sliding roof		AR77.20-P-1400GW
2	Remove headliner		AR68.30-P-4300GW
3	Remove bolts (2)
4	Remove bolt (4)
5	Pull guide tube (1) out of gear (5) and remove sheet metal clips (6) from bracket	When installing ensure that bead on pipe slides into groove on gear (5).
6	Remove guide tube (1)	The guide tube (1) for the control cable should not be bent when installing, otherwise the control cable will stick.
7	Install in the reverse order
8	Check for proper function
