Remove/install rear roof frame paneling - AR68.30-P-4470GW

MODEL 463 (except 463.202) as of model year 2013/model refinement package 2012

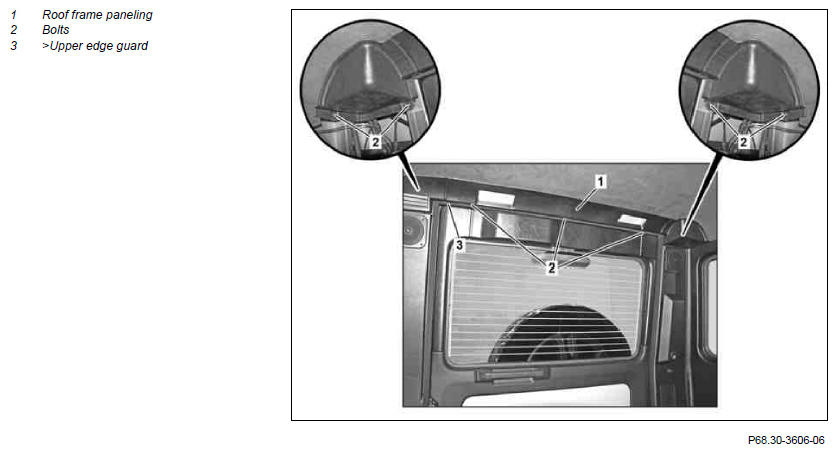

Fig 1: Rear Roof Frame Paneling Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear dome lamp		AR82.20-P-0113GW
2	Remove upper edge guard (3)
3	Remove paneling on left and right rear pillar		AR68.30-P-4505GW
4	Remove left and right side wall lining		AR68.30-P-1450GW
5	Remove bolts (2)
6	Remove roof frame paneling (1)	Carefully remove roof frame paneling (1) toward rear. Otherwise the plastic guides can break off.
7	Install in the reverse order
