Remove/install bottom engine compartment paneling - AR61.20-P-1105GW
MODEL 463 as of model year 2016 except CODE ZQ0 (G 500 4x4 2 )
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Lift vehicle on vehicle lift | AR00.60-P-1000G | |

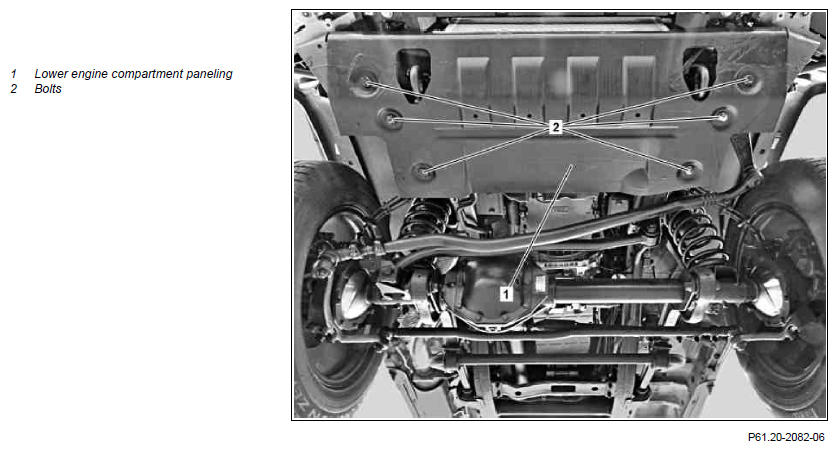

| 2 | Remove screws (2) | ||
| 3 | Remove lower engine compartment paneling (1) | ||
| 4 | Install in the reverse order |
