Remove/install lower control panel control unit - AR54.21-P-1263GW
MODEL 463 as of model year 2013/facelift 2012
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove electronic selector lever module | AR27.60-P-0901GW | |

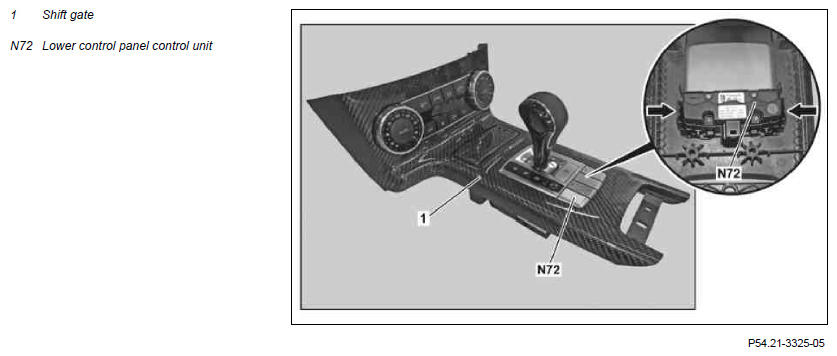

| 2 | Unclip lower control panel control unit (N72) from shift gate (1) (arrows) | ||
| 3 | Install in the reverse order | ||
| 4 | Read out and erase the fault memory using Star Diagnosis |
AD00.00-P-2000-04A |
