Remove/install front central operating unit - AR54.21-P-0500GW

MODEL 463 as of model year 2013/facelift 2012

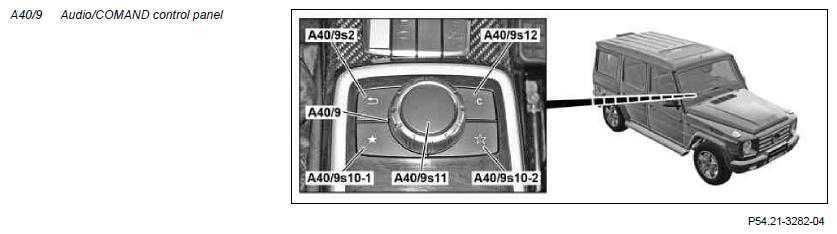

Fig 1: Front Central Operating Unit Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove upper section of center console	Place upper section of center console with connected lines to one side	AR68.20-P-2000GW
2	Detach electrical connection from Audio/COMAND control panel (A40/9)
3	Remove bolts from Audio/COMAND control panel (A40/9)	There are 4 bolts in total.
4	Remove Audio/COMAND control panel (A40/9)
5	Install in the reverse order
6	Read out and erase the fault memory using Star Diagnosis		AD00.00-P-2000-04A
