Remove/install battery sensor - AR54.10-P-0002GW

MODEL 463 as of model year 2013/facelift 2012

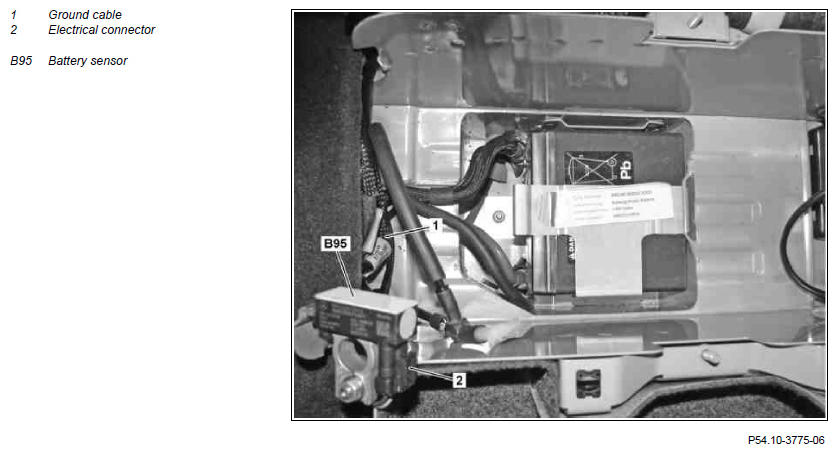

Fig 1: Battery Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove battery		AR54.10-P-0005GW
2	Detach ground line (1) from on-board electrical system battery ground point to body	Check for correct routing of ground line (1). The battery sensor (B95) is permanently connected to the ground line (1) and it can only be removed with it together.
3	Install in the reverse order
