Remove/install backup camera - AR54.65-P-0030GW

MODEL 463 (except 463.202) with CODE (FR8) Backup camera as of model year 2013/facelift 2012

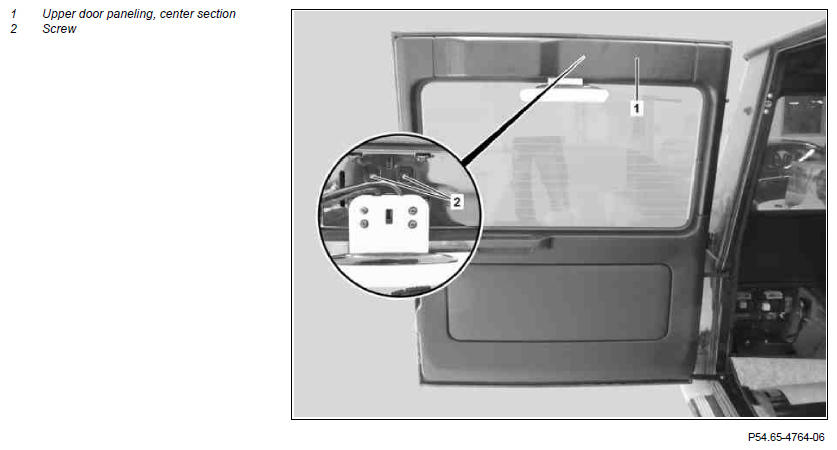

Fig 1: Backup Camera Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

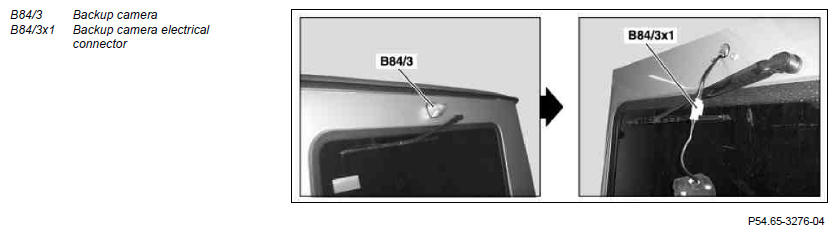

Fig 2: Backup Camera Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition
2	Detach upper door trim center piece (1) from rear-end door		Figure
3	Remove bolts (2)
4	Detach reversing camera (B84/3)
5	Disconnect electrical connector for backup camera (B84/3x1)	To do so pull the connection line carefully out of the rear-end door, until the reversing camera electrical connection (B84/3x1) is accessible.
6	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
