Remove/install additional battery - AR54.10-P-0007GW
MODEL 463 with CODE (MJ7) Stop/start function as of model year 2013/facelift 2012
| Remove/install | |||
| Risk of explosion caused by escaping oxyhydrogen gas. Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries caused by short circuit. Risk of poisoning caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices | No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only pour liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on AGM battery | AH54.10-P-0002-01A | ||
| 1 | Remove on-board electrical system battery | AR54.10-P-0005GW | |

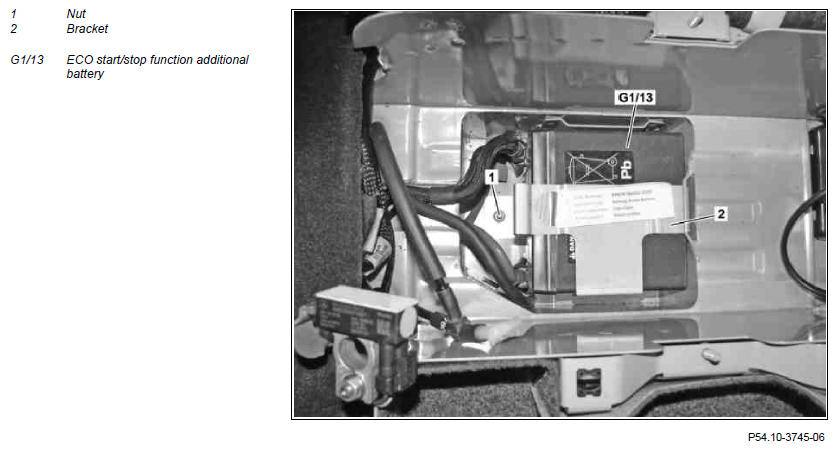

| 2 | Unscrew nut (1) | ||
| 3 | Remove bracket (2) from additional battery for ECO start/stop function (G1/13) | ||
| 4 | Remove ECO start/stop function additional battery (G1/13) | ||
| 5 | Install in the reverse order |
