Check lamps in instrument cluster and interior illumination - AP54.30-P-5453D
MODEL 463 with CODE XZ2 (Model year 2013)
MODEL 463 with CODE XZ3 (Model year 2014)
MODEL 463 with CODE XZ4 (Model year 2015)
MODEL 463 with CODE XZ5 (Model year 2016)
Shown on model 463 with code XZ2 (Modification year 2012)

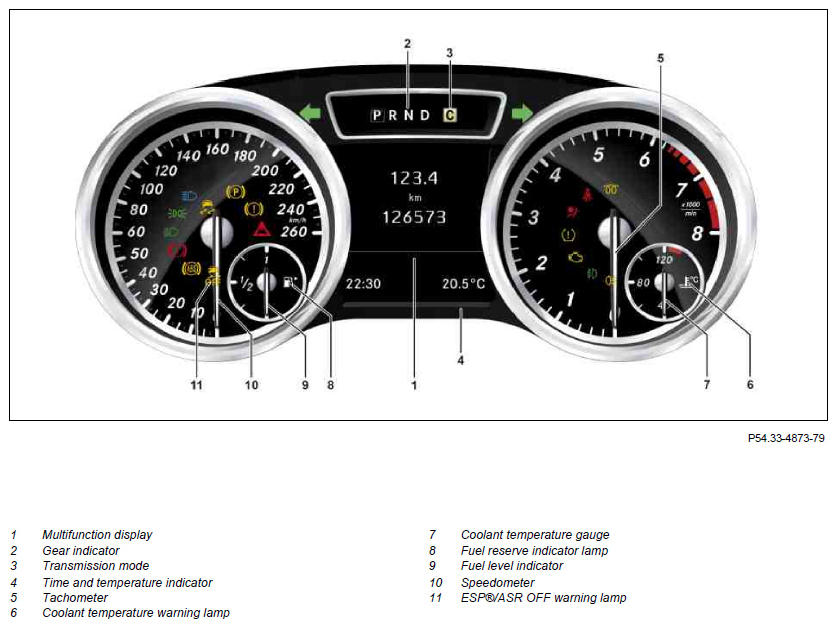

Fig 1: Lamps In Instrument Cluster And Interior Illumination - Shown On Model 463 With Code XZ2 (Modification Year 2012)
| Preparatory activity | |||
| 1 | Switch electronic ignition lock control unit to position "2" (circuit 15) | ||
| Check | |||
| 3 | Check coolant temperature gauge (7) and coolant temperature warning lamp (6) | If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 4 | Check ESP®/ASR OFF warning lamp (11) | If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 5 | Check fuel level indicator (9) and fuel reserve warning lamp (8) | If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 6 | Check multifunction display (1) and its display elements (2, 3, 4) for visible pixel errors, vertical stripes, missing segments or black dots. | If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 7 | Manually switch on the exterior lights | ||
| 8 | Check instrument illumination | If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 9 | Actuate instrument illumination brightness control | If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 10 | Manually switch off exterior lights | ||
| 11 | Switch on lamps in passenger compartment and check for proper operation | If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 12 | Switch off lamps in passenger compartment | ||
| Finishing activity | |||
| 13 | Switch electronic ignition lock control unit to position "0" |
