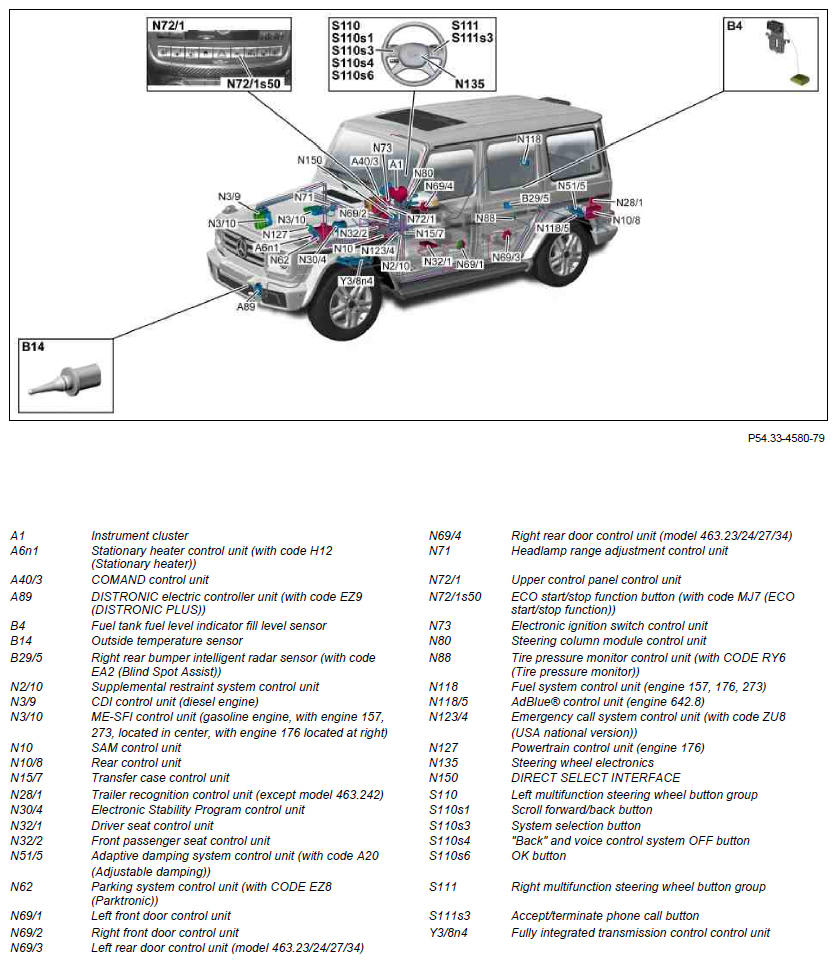

Overview of system components, instrument cluster (IC) component description - GF54.30-P-9996GW
MODEL 463 as of model year 2013
Shown on model 463.23

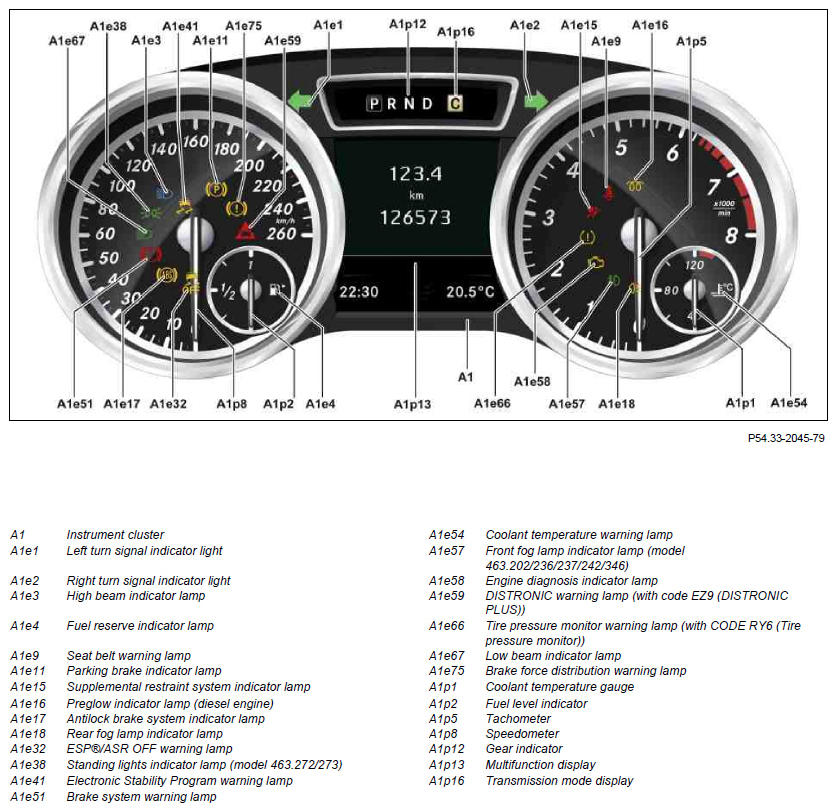

The following components integrated in the instrument cluster are not shown:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)
| Component description for instrument cluster | A1 | GF54.30-P-6000GW | |
| Stationary heater control unit, component description | Model 463 as of model year 2013 with code H12 (Auxiliary heater) A6n1 |
GF83.70-P-4066GW | |
| Component description for COMAND controller unit | A40/3 | GF82.85-P-3136GW | |
| Component description for DISTRONIC electric controller unit | Model 463 as of model year 2013 with code EZ9 (DISTRONIC PLUS) A89 |
GF30.30-P-3213GW | |
| Component description for intelligent radar sensor control unit | Model 463 as of model year 2013 with code EA2 (Blind Spot Assist) B29/5 |
GF30.30-P-3305GW | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GW | |
| Component description for CDI control unit | Model 463 with engine 642.8 as of model year 2013 N3/9 |
GF07.16-P-6000OGT | |
| Component description for ME-SFI (ME) control unit | Model 463 with engine 273.9 as of model year 2013 N3/10 |
GF07.61-P-6000MLJ | |
| Model 463 with engine 157.9 as of model year 2013 N3/10 |
GF07.61-P-6000MMJ | ||
| Model 463 with engine 176.9 as of model year 2016 N3/10 |
GF07.61-P-6000MNF | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GW | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GW | |
| Component description of transfer case control unit | Model 463 with transmission 722.9 as of model year 2013 N15/7 |
GF28.19-P-3200VGE | |
| Component description for trailer recognition control unit | Model 463 (except 463.242) as of model year 2013 N28/1 |
GF31.19-P-4050GW | |
| Component description for Electronic Stability Program control unit |
N30/4 | GF42.45-P-5119GW | |
| Component description for driver seat control unit | N32/1 | GF91.29-P-5231GW | |
| Component description for front passenger seat control unit | N32/2 | GF91.29-P-5241GW | |
| Component description for adaptive damping system control unit | Model 463 as of model year 2016 with code A20 (Adjustable damping) N51/5 |
GF32.32-P-1010GW | |
| Parking system control unit component description | Model 463 as of model year 2013 with code EZ8 (PARKTRONIC) N62 |
GF54.65-P-5002GW | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GW | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GW | |
| Component description for rear door control unit | Model 463.23/24/27/34 as of model year 2013 N693, N694 |
GF72.29-P-6021GW | |
| Component description of headlamp range adjustment control unit | N71 | GF82.10-P-2112GW | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GW | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GW | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GW | |
| Component description for tire pressure monitor control unit | Model 463 as of model year 2013 with code RY6 (Tire pressure monitoring system) N88 |
GF40.15-P-5124GW | |
| Component description for fuel pump control unit | Model 463 with engine 273.9 as of model year 2013 N118 |
GF47.40-P-2001MLJ | |
| Model 463 with engine 176.9 as of model year 2016 N118 |
GF47.40-P-2001MNF | ||
| Component description for exhaust aftertreatment control unit | Model 463 with engine 642.8 as of model year 2013 N118/5 |
GF14.40-P-3030OGT | |
| Component description for emergency call system control unit | Model 463 as of model year 2013 with code ZU8 (National version for USA) N123/4 |
GF82.95-P-3212GWU | |
| Drivetrain control unit, component description | Model 463 with engine 176.9 as of model year 2016 N127 |
GF54.21-P-2141MNF | |
| DIRECT SELECT interface, component description | Model 463 with transmission 722.9 as of model year 2013 N150 |
GF27.19-P-1300AHG | |
| Component description for fully integrated transmission control unit | Model 463 with transmission 722.9 as of model year 2013 Y38n4 |
GF27.60-P-5165AHG | |
| Table of contents for function description of instrument cluster (IC) | GF54.30-P-0997GW |
