Overview of system components of parking assistance systems - GF54.00-P-9997GW
MODEL 463 as of model year 2013 with CODE EZ8 (PARKTRONIC)
MODEL 463 as of model year 2013 with CODE FR8 (Rear view camera)

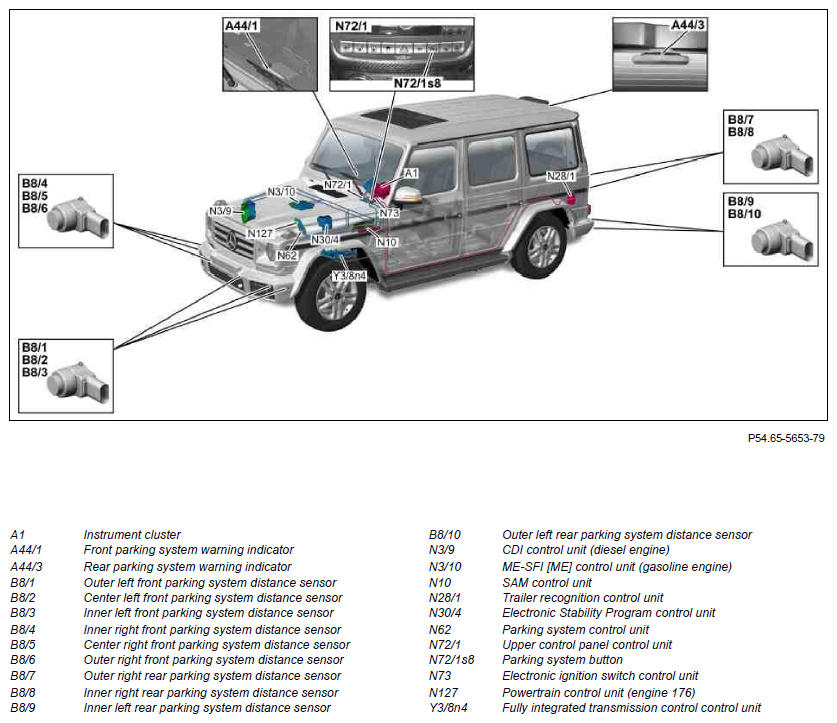

Parking system (with CODE EZ8 (Parktronic)), shown on model 463.23

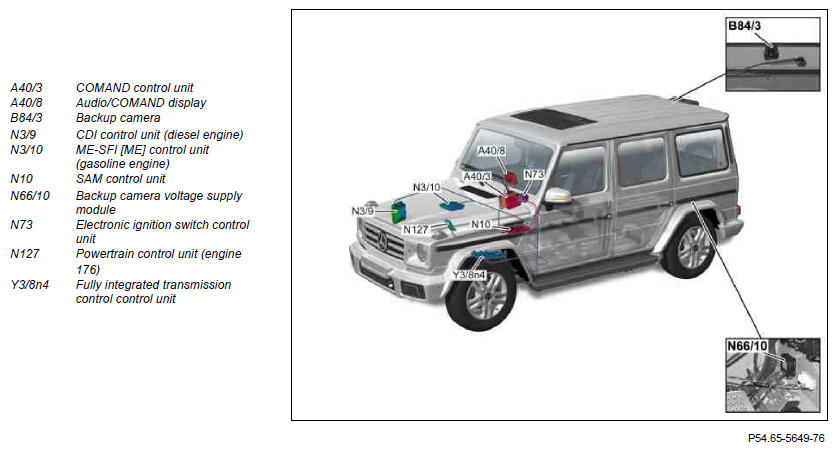

Reversing camera (with CODE FR8 (Reversing camera)), shown on model 463.23
| Component description for instrument cluster | A1 | GF54.30-P-6000GW | |
| Component description for COMAND controller unit | A40/3 | GF82.85-P-3136GW | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150GW | |
| Component description for CDI control unit | Model 463 with engine 642.8 as of model year 2013 with code EZ8 (PARKTRONIC) Model 463 with engine 642.8 as of model year 2013 with code FR8 (Rear view camera) N3/9 |
GF07.16-P-6000OGT | |
| Component description for ME-SFI (ME) control unit | Model 463 with engine 157.9 as of model year 2013 with code EZ8 (PARKTRONIC) Model 463 with engine 157.9 as of model year 2013 with code FR8 (Rear view camera) N3/10 |
GF07.61-P-6000MMJ | |
| Model 463 with engine 273.9 as of model year 2013 with code EZ8 (PARKTRONIC) Model 463 with engine 273.9 as of model year 2013 with code FR8 (Rear view camera) N3/10 |
GF07.61-P-6000MLJ | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GW | |
| Component description for trailer recognition control unit | Model 463 (except 463.242) as of model year 2013 with code EZ8 (PARKTRONIC) N28/1 |
GF31.19-P-4050GW | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GW | |
| Parking system control unit component description | Model 463 as of model year 2013 with code EZ8 (PARKTRONIC) N62 |
GF54.65-P-5002GW | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GW | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GW | |
| Drivetrain control unit, component description | Model 463 with engine 176.9 as of model year 2016 with code EZ8 (PARKTRONIC) with code FR8 (Rear view camera) N127 |
GF54.21-P-2141MNF | |
| Component description for fully integrated transmission control unit | Model 463 with transmission 722.9 as of model year 2013 with code EZ8 (PARKTRONIC) Model 463 with transmission 722.9 as of model year 2013 with code FR8 (Rear view camera) Y3/8n4 |
GF27.60-P-5165AHG | |
| Table of contents for function description of parking assistance systems | GF54.00-P-0997GW |
