Overview of system components for driver assistance systems - GF54.00-P-9998GW
MODEL 463 as of model year 2013

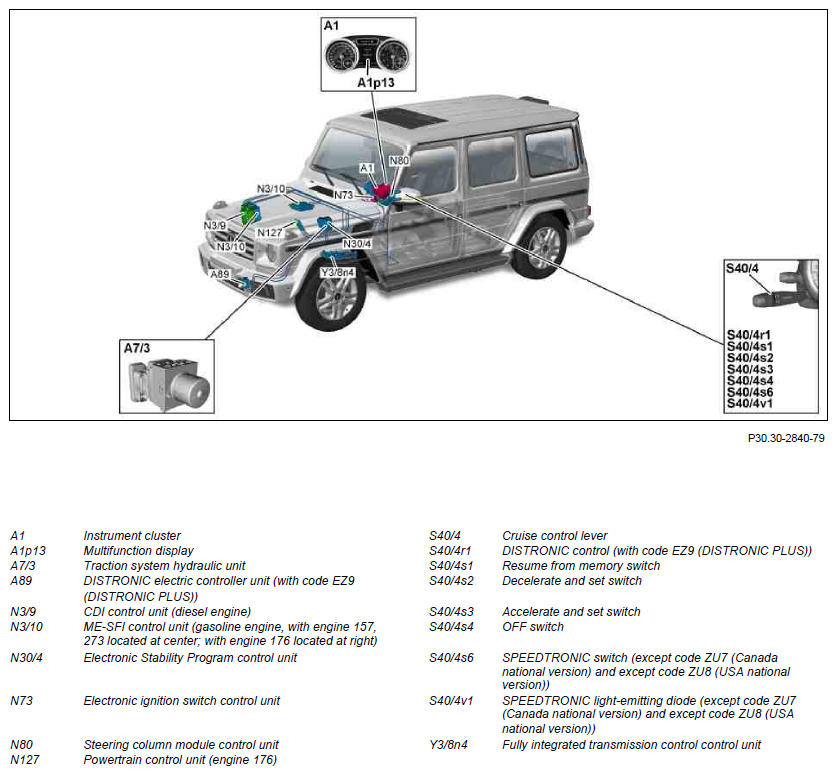

CRUISE CONTROL, shown on model 463.23

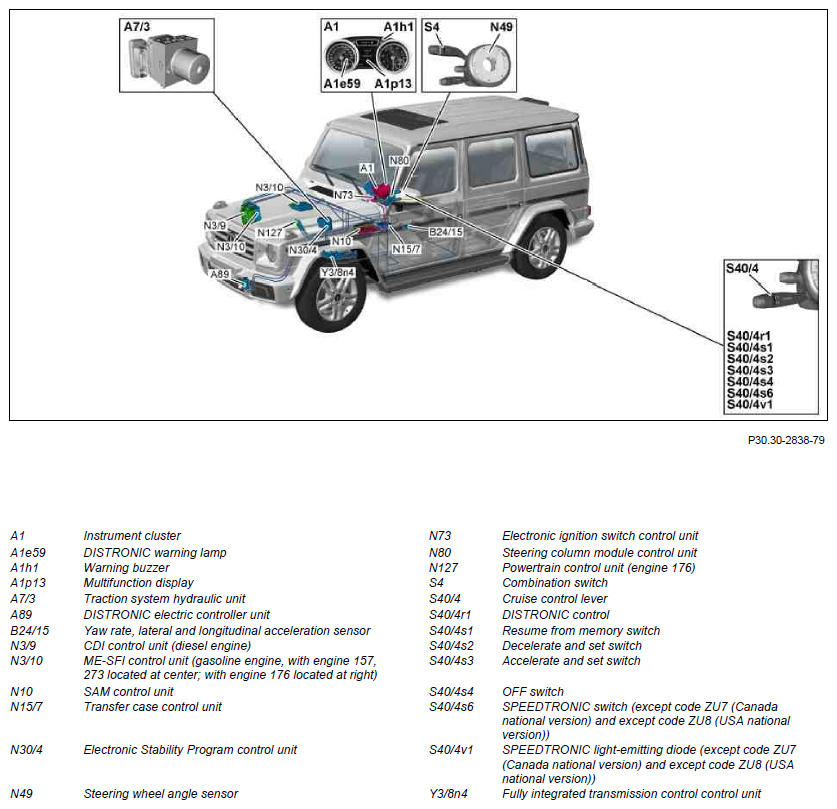

DISTRONIC (with code EZ9 (DISTRONIC PLUS)); illustration shows model 463.23

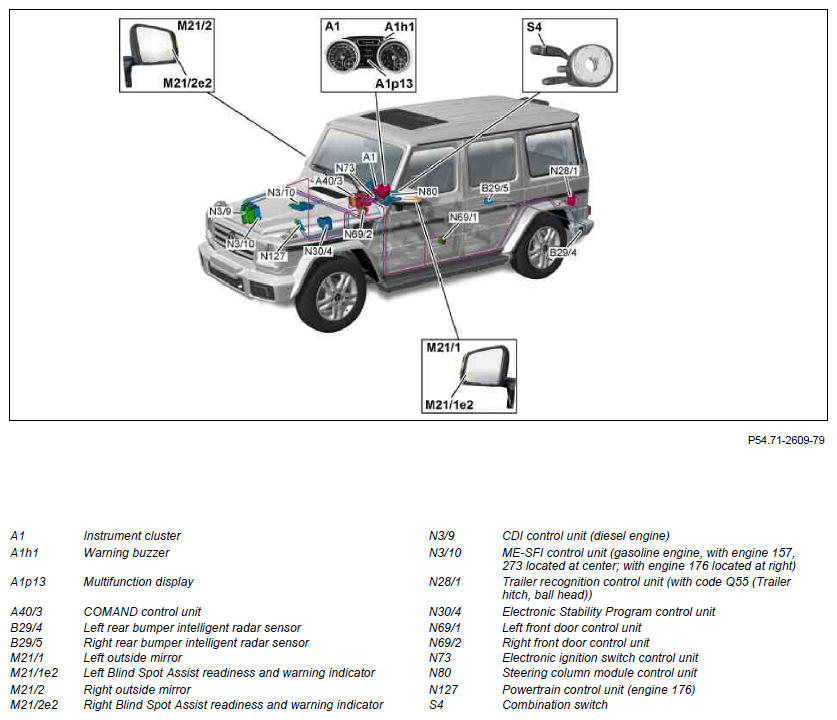

Blind Spot Assist (with code EA2 (Blind Spot Assist)); illustration shows model 463.23
| Component description for instrument cluster | A1 | GF54.30-P-6000GW | |
| Component description for COMAND controller unit | A40/3 | GF82.85-P-3136GW | |
| Component description for DISTRONIC electric controller unit | Model 463 as of model year 2013 with code EZ9 (DISTRONIC PLUS) A89 |
GF30.30-P-3213GW | |
| Component description for intelligent radar sensor control unit | Model 463 as of model year 2013 with code EA2 (Blind Spot Assist) B29/4, B29/5 |
GF30.30-P-3305GW | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | B24/15 | GF42.45-P-4810GW | |
| Component description for CDI control unit | Model 463 with engine 642.8 as of model year 2013 N3/9 |
GF07.16-P-6000OGT | |
| Component description for ME-SFI (ME) control unit | Model 463 with engine 273.9 as of model year 2013 N3/10 |
GF07.61-P-6000MLJ | |
| Model 463 with engine 157.9 as of model year 2013 N3/10 |
GF07.61-P-6000MMJ | ||
| Model 463 with engine 176.9 as of model year 2016 N3/10 |
GF07.61-P-6000MNF | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GW | |
| Component description of transfer case control unit | Model 463 with transmission 722.9 as of model year 2013 N15/7 |
GF28.19-P-3200VGE | |
| Component description for trailer recognition control unit | Model 463 (except 463.242) as of model year 2013 with code Q55 (Trailer coupl., reinforced, ball head, low,) N28/1 |
GF31.19-P-4050GW | |
| Component description for Electronic Stability Program control unit |
N30/4 | GF42.45-P-5119GW | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GW | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GW | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GW | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GW | |
| Drivetrain control unit, component description | Model 463 with engine 176.9 as of model year 2016 N127 |
GF54.21-P-2141MNF | |
| Component description for fully integrated transmission control unit | Model 463 with transmission 722.9 as of model year 2013 Y38n4 |
GF27.60-P-5165AHG | |
| Table of contents for function description of driver assistance systems | GF54.00-P-0998GW |
