Component Description For Tire Pressure Monitor Control Unit - GF40.15-P-5124GW

Model 463

as of model year 2013

with code RY6 (Tire pressure monitoring system)

Shown on model 463.234

Location

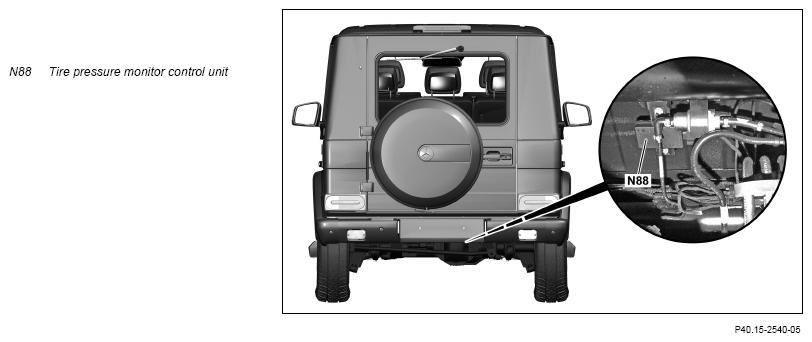

The tire pressure monitoring control unit is located on the vehicle floor above the rear axle differential.

Tasks

The tire pressure monitoring system control unit has the following tasks:

• Reading in of signals
• Evaluation of input factors
• Transmission of information

Reading in of signals

The input factors are read in via the following connections:

• Two-way radio
• Suspension CAN 2 (CAN E2) (up to model year 2019) or user interface CAN (CAN HMI) (as of model year 2019)

Two-way radio

The tire pressure monitor control unit reads in the signals of the following components via radio:

• Left front tire pressure sensor (A69/1)
• Right front tire pressure sensor (A69/2)
• Left rear tire pressure sensor (A69/3)
• Right rear tire pressure sensor (A69/4)

Suspension CAN 2 (up to model year 2019) or user interface CAN (as of model year 2019)

The tire pressure monitoring system control unit also reads in the following signals over suspension CAN 2 or over the user interface CAN:

• Terminal status of terminal 15
• Vehicle speed signal
• Outside temperature
• Kilometer reading

Evaluation of input factors

The integrated microprocessor evaluates the input factors read in.

Transmission of information

The tire pressure monitoring system control unit sends information about the displays and warning messages shown, over suspension CAN 2 (up to model year 2019) or the user interface CAN (as of model year 2019) to the instrument cluster.

Structure

The central antenna is integrated into the housing of the tire pressure monitoring system control unit.

	Wiring diagram for tire pressure monitor control unit year 2019 with code RY6 (Tire pressure monitoring system)	Model 463 as of model year 2013 up to model year 2019	PE40.15-P-2101-97ZGA
		Model 463 as of model year 2019 with code RY6 (Tire pressure monitoring system)	PE40.15-P-2101-97ZHA
