Remove/Install Steering Wheel - AR46.10-P-0100GW

Model 463

as of model year 2013 up to model year 2019

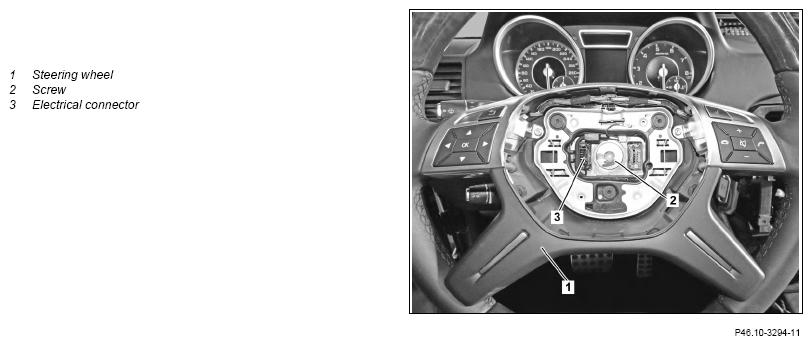

Fig 1: Steering Wheel Components Location - Model 463 Up To Model Year 2019

G13658446

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Turn steering wheel (1) into center position	Front wheels in straight-ahead position.
2	Remove airbag unit	Model 463 as of model year 2013 up to model year 2019	AR91.60-P-0660GW
3	Remove screw (2), counterhold steering wheel (1) when doing so	: Replace bolt (2).
		Bolt, steering wheel to steering shaft	*BA46.10-P-1001-02A
4	Mark position of steering wheel (1) relative to steering shaft
5	Disconnect electrical connector (3)
6	Remove steering wheel (1)
7	Install in the reverse order
8	Conduct a road test	Carry out the following tests:

STEERING WHEEL

Number	Designation		Model 463 as of model year 2019 Model 463 up to model year 2019
BA46.10-P-1001-02A	Bolt, steering wheel to steering shaft	Nm	80
