Remove/Install Front Seat Frame Covers - AR91.10-P-1200XG
Model 463
as of model year 2019
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Remove front seat. | When removing trim (3, 5, 6). | |
| 1.2 | Move front seat to foremost and uppermost position | When removing trim (1, 2, 4). | |
| 2 | Cover up door sill. | With front seat installed. | |
| 3 | Unclip trim (4) upwards ad remove downwards. | Fig 2 | |

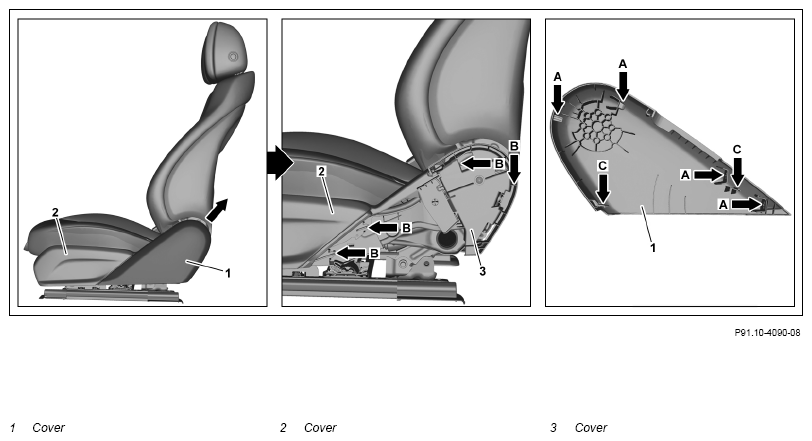

| 4 | Unclip trim (1) in direction of arrow and remove. | ||
| 5 | Push trim (2) inwards and unhook from catch hook (7). | ||
| 6 | Push trim (2) downwards and unhook from catch hook (8). | ||
| 7 | Unhook catch hook (9) from trim (3). | ||
| 8 | Push lock (11) to side and pull trim (2) outwards over the catch (10). | ||

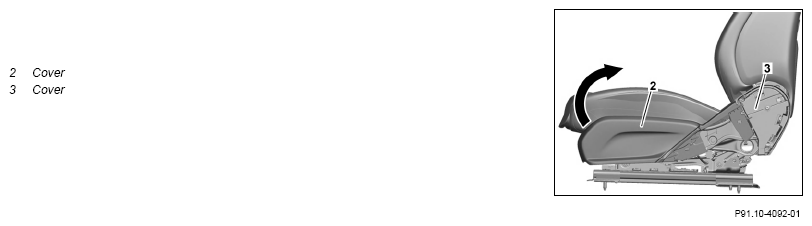

| 9 | Unhook trim at front (2) from trim (3) in direction of arrow and swivel upwards and remove. | ||
| 10 | Drill out rivets (14). | ||
| 11 | Release lock (15) and remove trim (3). | ||

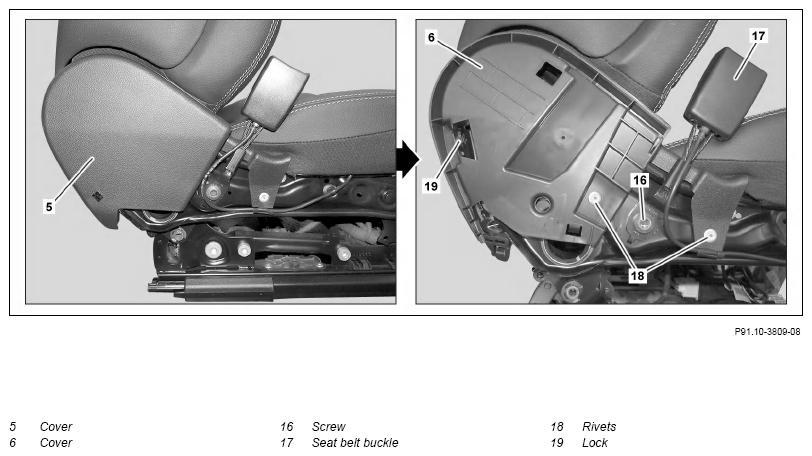

| 12 | Unclip trim (5). | Fig 2 | |
| 13 | Unscrew bolt (16) and place seat belt buckle (17) to one side. | *BA91.40-P-1003-01C | |
| 14 | Unhook electrical wiring harness of seat belt buckle (17) from trim (6). | ||
| 15 | Drill out rivets (18). | ||
| 16 | Release lock (19) and remove trim (6). | ||
| 17 | Install in reverse order. |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 463 up to model year 2019 | Model 463 as of model year 2019 | |
|---|---|---|---|---|
| BA91.40-P-1003-01C | Bolt, front belt buckle | Nm | 35 | 35 |
