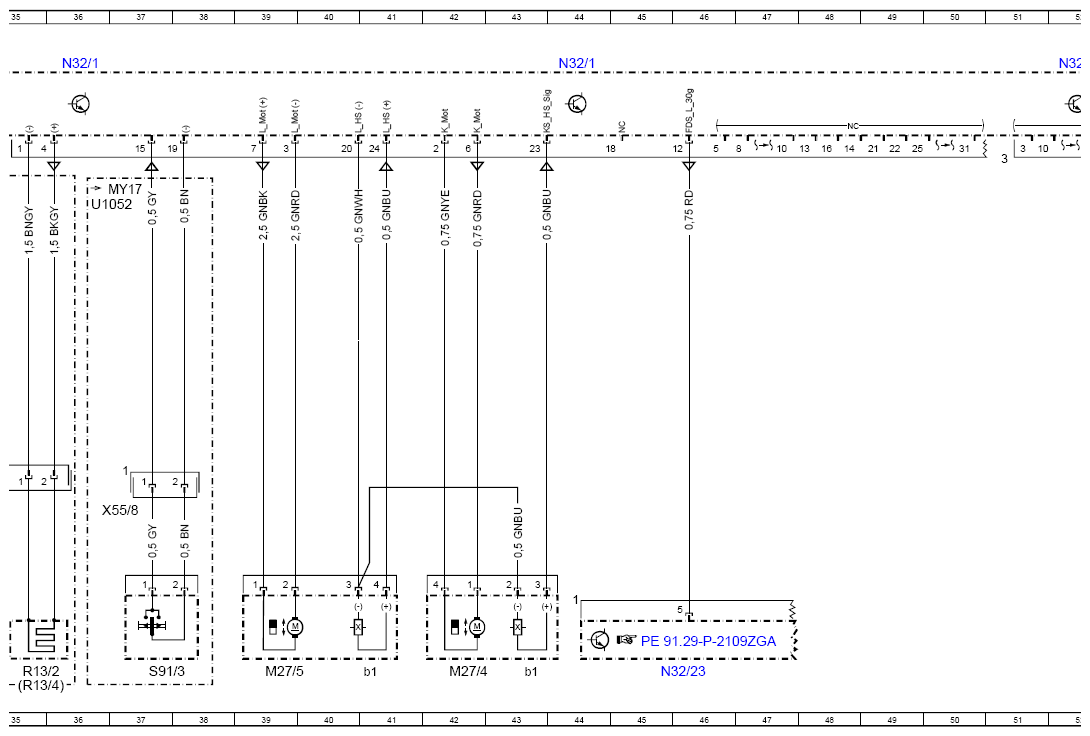

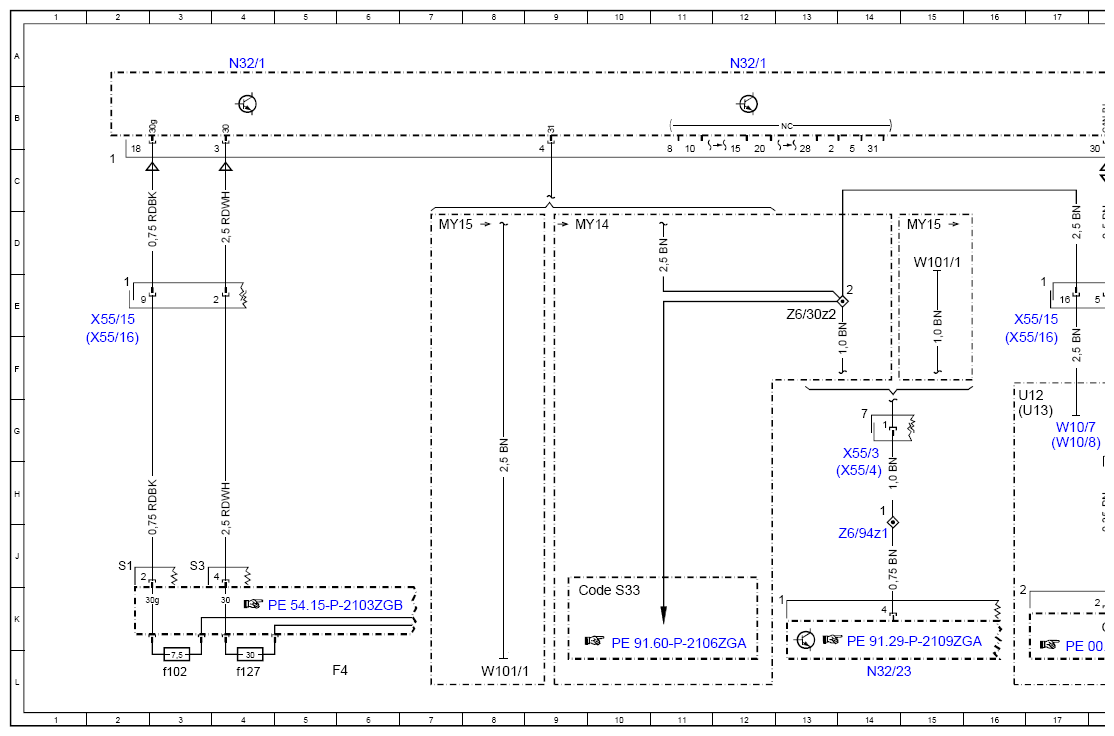

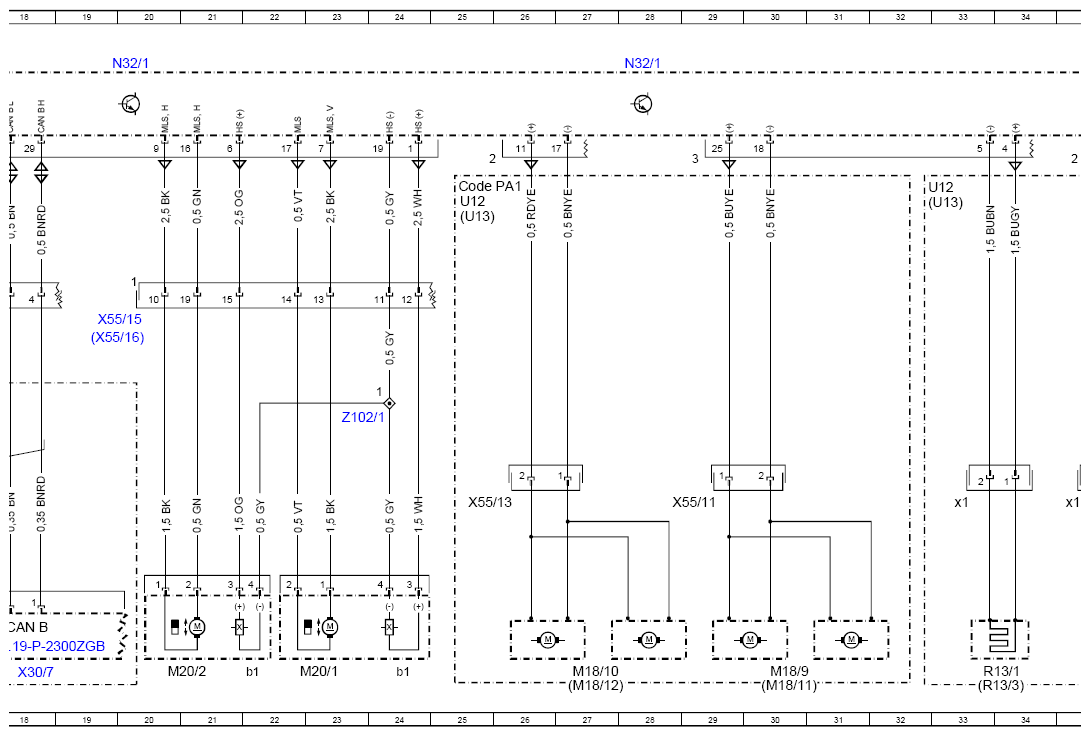

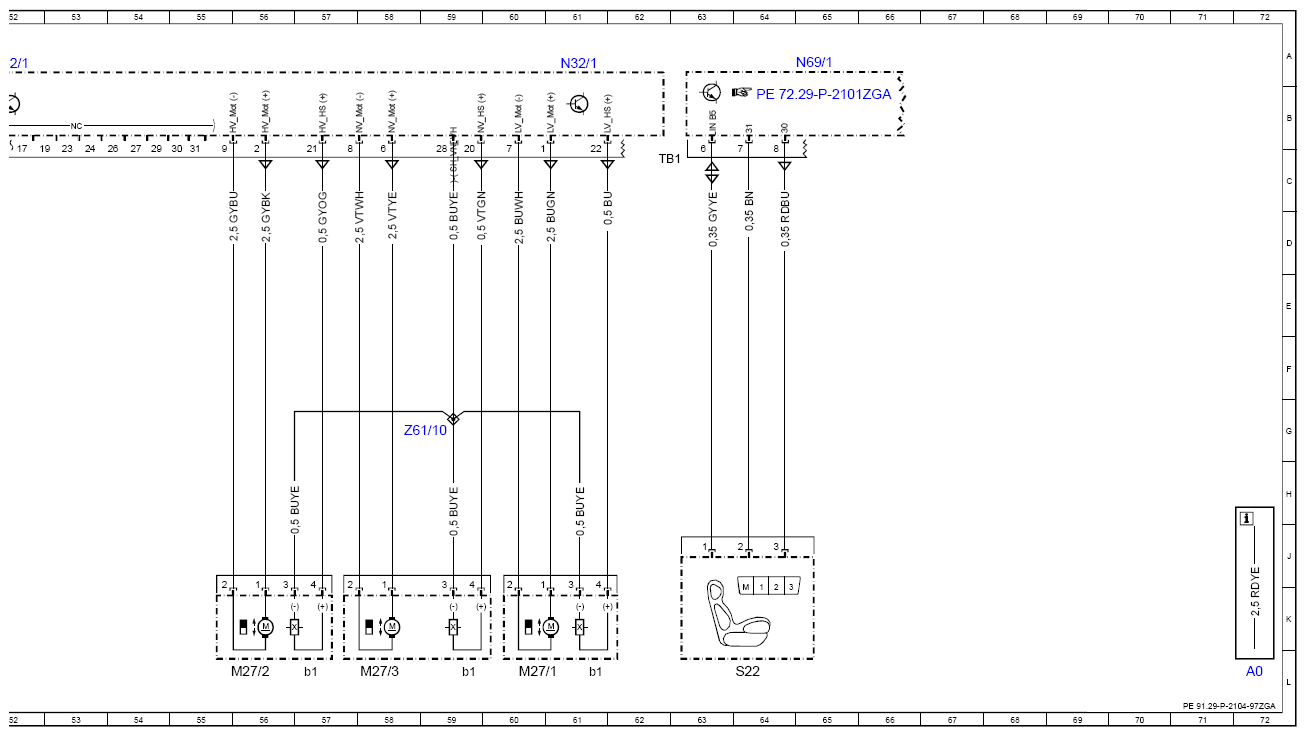

Wiring Diagram Of Driver-Side Seat Control Module - PE91.29-P-2104-97ZGA
Model 463 as of model year 2013 up to model year 2019 /year model 2012 facelift up to year model 2018 facelift, control unit N32/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| CAN B | Interior CAN | 18K |
| Code PA1 | Seating comfort package | 25C |
| Code S33 | Head restraint, crash-active | 9K |
| F4 | Rear fuse and relay module | 5L |
| F4f102 | Fuse 102 | 3L |
| F4f127 | Fuse 127 | 4L |
| M18/10 | Left front backrest seat ventilation motors | 27L |
| M18/11 | Right front seat cushion seat ventilation motors | 30L |
| M18/12 | Right front backrest seat ventilation motors | 27L |
| M18/9 | Left front seat cushion seat ventilation motors | 30L |
| M20/1 | Steering column in/out adjustment motor | 23L |
| M20/1b1 | Steering column in/out Hall sensor | 24L |
| M20/2 | Steering column up/down adjustment motor | 20L |
| M20/2b1 | Steering column up/down Hall sensor | 22L |
| M27/1 | Driver seat fore/aft adjustment motor | 60L |
| M27/1b1 | Seat fore/aft adjustment Hall sensor, driver seat | 61L |
| M27/2 | Driver seat height adjustment motor | 56L |
| M27/2b1 | Driver seat, seat height adjustment Hall sensor, | 57L |
| M27/3 | Driver seat inclination adjustment motor | 58L |
| M27/3b1 | Inclination adjustment Hall sensor, driver seat | 59L |
| M27/4 | Driver seat head restraint adjustment motor | 42L |
| M27/4b1 | Head restraint adjustment Hall sensor, driver seat | 43L |
| M27/5 | Driver seat backrest inclination adjustment motor | 39L |
| M27/5b1 | Backrest inclination Hall sensor, driver seat | 41L |
| N32/1 | Driver seat control unit | 12A |
| N32/1 | Driver seat control unit | 20A |
| N32/1 | Driver seat control unit | 28A |
| N32/1 | Driver seat control unit | 36A |
| N32/1 | Driver seat control unit | 44A |
| N32/1 | Driver seat control unit | 61A |
| N32/1 | Driver seat control unit | 4A |
| N32/1 | Driver seat control unit | 52A |
| N32/23 | Driver seat lumbar support adjustment control unit | 45L |
| N32/23 | Driver seat lumbar support adjustment control unit | 14L |
| N69/1 | Left front door control unit | 65A |
| R13/1 | Left front seat sitting surface heated cushion | 33L |
| R13/1x1 | Left front seat sitting surface heater pad electrical connector | 35H |
| R13/2 | Left front backrest heated cushion | 35L |
| R13/2x1 | Left front backrest heater pad electrical connector | 33H |
| R13/3 | Right front seat sitting surface heated cushion | 33L |
| R13/4 | Right front backrest heated cushion | 35L |
| S22 | Left front seat adjustment switch group | 64L |
| S91/3 | Left front seat backrest release microswitch | 37L |
| U1052 | Valid for vehicles with short wheelbase | 36C |
| U12 | Valid for left-hand drive vehicles | 16G |
| U12 | Valid for left-hand drive vehicles | 25C |
| U12 | Valid for left-hand drive vehicles | 32C |
| U13 | Valid for right-hand drive vehicles | 16G |
| U13 | Valid for right-hand drive vehicles | 25D |
| U13 | Valid for right-hand drive vehicles | 32C |
| W10/7 | Left battery recess ground point | 17G |
| W10/8 | Right battery recess ground point | 17G |
| W101/1 | Driver seat ground point | 8L |
| W101/1 | Driver seat ground point | 15D |
| X30/7 | Interior CAN 2 (CAN B) potential distributor electrical connector | 18L |
| X55/11 | Right seat cushion seat ventilation motor electrical connector | 29H |
| X55/13 | Left backrest seat ventilation motor electrical connector | 25H |
| X55/15 | Driver seat electrical connector | 20E |
| X55/15 | Driver seat electrical connector | 17E |
| X55/15 | Driver seat electrical connector | 2E |
| X55/16 | Front passenger seat electrical connector | 17F |
| X55/16 | Front passenger seat electrical connector | 19F |
| X55/16 | Front passenger seat electrical connector | 2F |
| X55/3 | Driver seat connector block | 14G |
| X55/4 | Front passenger seat connector block | 14H |
| X55/8 | Backrest lock electrical connector | 37H |
| Z102/1 | Steering column adjustment electric motor connector sleeve | 23G |
| Z6/30z2 | Front passenger seat ground line connector sleeve | 13E |
| Z6/94z1 | Driver seat circuit 31 connector sleeve 1 | 14J |
| Z61/10 | Driver seat backrest and head restraint adjustment motor connector sleeve | 59G |
