Remove/Install Passenger Airbag Unit - AR91.60-P-0680XG

Model 463

as of model year 2019

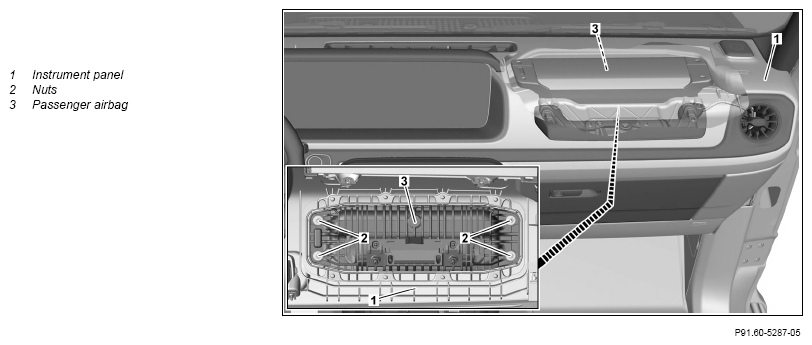

Fig 1: Passenger Airbag Unit Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmitter range (at least 2 m).
2	Disconnect ground line from battery.		AR54.10-P-0003XG
3	Remove instrument panel (1) until the front passenger airbag (3) is accessible and disconnect electrical connector of front passenger airbag (3).		AR68.10-P-1000XG
4	Unscrew nuts (2).	Bolt/nut, front passenger airbag to instrument panel	*BA91.60-P-1002-01B
5	Remove front passenger airbag (3).
6	Install in reverse order.
	Check
7	Check Supplemental Restraint System (SRS) using vehicle diagnosis system.	When replacing the front passenger airbag (3).
			AD00.00-P-2000-04B

AIRBAG

Number	Designation		Model 463 up to 11/30/00 up to model year 2019	Model 463 as of 12/1/00 up to model year 2019
BA91.60-P-1002-01B	Bolt/nut, front passenger airbag to instrument panel	Nm	8	8

AIRBAG

Number	Designation		Model 463 as of model year 2019
BA91.60-P-1002-01B	Bolt/nut, front passenger airbag to instrument panel	Nm	5
