Remove/Install Heated Seats Control Unit - AR91.30-P-0030XG
Model 463
as of model year 2019

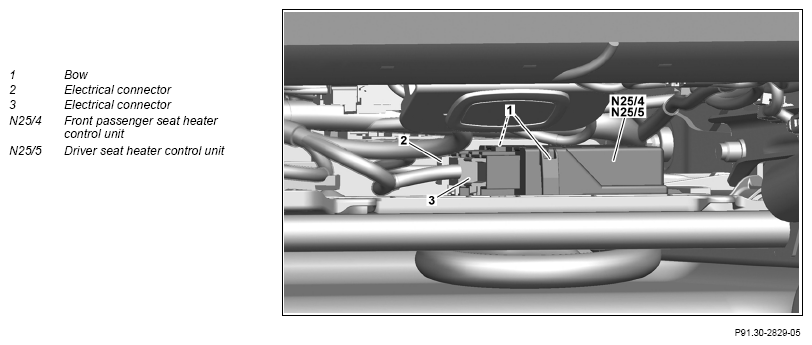

Shown on driver side

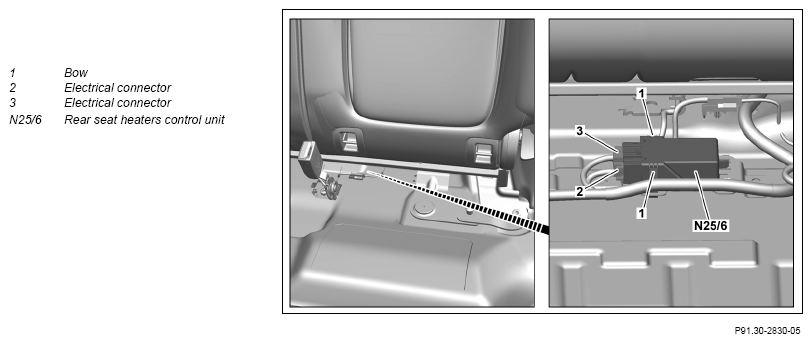

Shown on rear seat
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Perform commissioning of front passenger seat heater control unit (N25/4) or of driver seat heater control unit (N25/5) with vehicle diagnosis system. | When replacing the front passenger seat heater control unit (N25/4) or the driver seat heater control unit (N25/5). | |
| AD00.00-P-2000-04B | |||
| 1.2 | Perform commissioning of rear seat heater control unit (N25/6) with vehicle diagnosis system. | When replacing the rear seat heater control unit (N25/6). | |
| AD00.00-P-2000-04B | |||
| 2.1 | Move driver or front passenger seat all the way forward and all the way up. | When removing the front passenger seat heater control unit (N25/4) or the driver seat heater control unit (N25/5). | |
| 2.2 | In rear passenger compartment, fold left seat cushion forwards. | When removing the rear seat heater control unit (N25/6). | |
| 3 | Fold floor covering in rear passenger compartment forwards. | When removing the rear seat heater control unit (N25/6). | |
| 4 | Disconnect electrical connectors (2, 3). | ||
| 5.1 | Squeeze bracket (1) and remove front passenger seat heater control unit (N25/4) or driver seat heater control unit (N25/5). | When removing the front passenger seat heater control unit (N25/4) or the driver seat heater control unit (N25/5). |
|
| 5.2 | Squeeze bracket (1) and remove rear seat heater control unit (N25/6). | When removing the rear seat heater control unit (N25/6). |
|
| 6 | Install in reverse order. |
