(Remove/Install Front Seat (Seat Backrest) Adjusting Motors - AR91.29-P-1430G)
Model 463
up to model year 2000
with code SB5 (Electrically adjustable left front seat)
with code SB6 (Electrically adjustable right front seat)
| Remove/install | |||

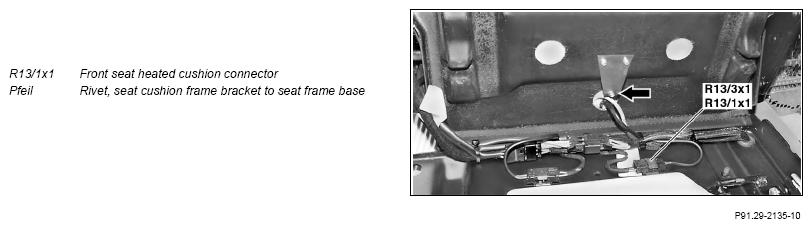

| 1 | Drill out rivet connecting seat cushion frame bracket to seat frame base (arrow) | ||
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 2 | Disconnect ground line from battery | Model 463.202/237/346 up to model year 2000 with code SB5 (Electrically adjustable left front seat) with code SB6 (Electrically adjustable right front seat) Model 463.204/206/207/208/209/220/221/222/224/225/227/228/230/231/232/233/240/243/244/245/246/247/249/250/254/270/271/300/303/304/306/307/308/309/320/321/322/323/324/325/327/328/330/331/332/333/336/340/341 up to model year 2000 with code SB5 (Electrically adjustable left front seat) with code SB6 (Electrically adjustable right front seat) Model 463.236 up to model year 2000 with code SB5 (Electrically adjustable left front seat) with code SB6 (Electrically adjustable right front seat) except code 979 (Special protection MB Guard) Model 463.241/248 up to model year 2000 with code SB5 (Electrically adjustable left front seat) with code SB6 (Electrically adjustable right front seat) except code 979 (Special protection MB Guard) Model 463.241 up to model year 2000 with code 979 (Special protection MB Guard) with code E26 (Auxiliary battery) with code SB5 (Electrically adjustable left front seat) with code SB6 (Electrically adjustable right front seat) with code ZS4 (Special protection version FB4) |
AR54.10-P-0003G |
| Notes on battery | AH54.10-P-0001-01A | ||
| Model 463.241 up to model year 2000 with code 979 (Special protection MB Guard) with code E26 (Auxiliary battery) with code SB5 (Electrically adjustable left front seat) with code SB6 (Electrically adjustable right front seat) with code ZS6 (Special protection version FB6) Model 463.241 up to model year 2000 with code 979 (Special protection MB Guard) with code E26 (Auxiliary battery) with code SB5 (Electrically adjustable left front seat) with code SB6 (Electrically adjustable right front seat) with code ZS7 (Special protection version FB7) |
AR54.10-P-0003PV | ||
| 3 | Remove drive for seat height adjustment | Model 463.200/204/206/207/208/209/220/221/224/225/227/228/230/231/232/233/240/241/300/304/307/308/320/321/324/325/327/328/330/331 up to model year 2000 with code SB5 (Electrically adjustable left front seat) with code SB6 (Electrically adjustable right front seat) |
AR91.29-P-1421G |
| 4 | Remove seat adjustment switch unit from front seat | Model 463.200/204/206/207/208/209/220/221/224/225/227/228/230/231/232/233/240/241/300/304/307/308/320/321/324/325/327/328/330/331 up to model year 2000 with code SB5 (Electrically adjustable left front seat) with code SB6 (Electrically adjustable right front seat) |
AR91.29-P-0003G |
| 5 | Remove switch for multicontour seat | Model 463.200/204/206/207/208/209/220/221/224/225/227/228/230/231/232/233/240/241/300/304/307/308/320/321/324/325/327/328/330/331 up to model year 2000 with code SB5 (Electrically adjustable left front seat) with code SB6 (Electrically adjustable right front seat) with code SK2 (Left electrically adjustable front seat with orthopedic backrest) with code SK3 (Right electrically adjustable front seat with orthopedic backrest) |
AR91.25-P-1720G |
| 6 | Remove the seat cushion | ||

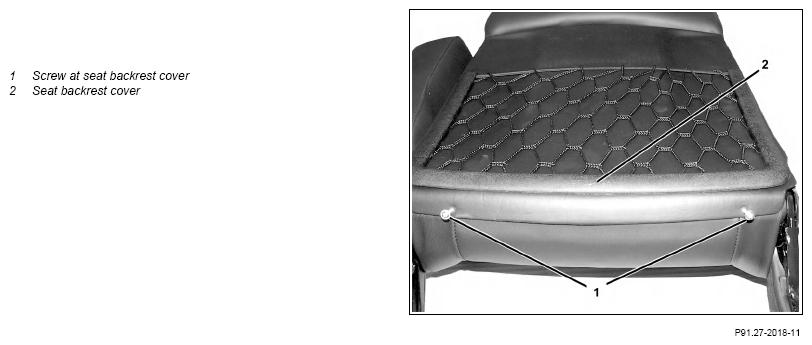

| 7 | Remove screws from seat backrest cover (1) and remove cover (2). | ||

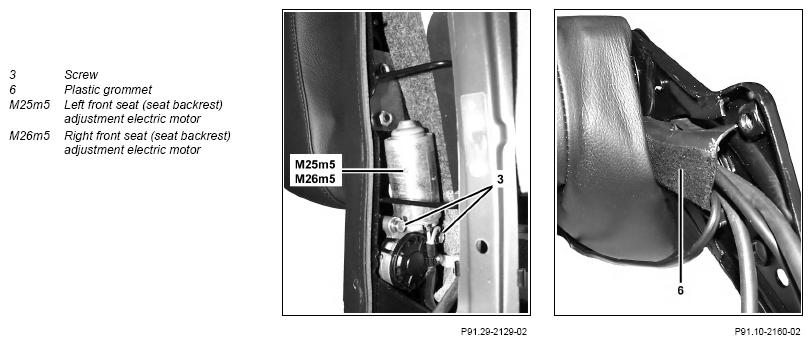

| 8 | Remove screws (3) at front seat (seat backrest) adjustment electric motor at left and right (M25m5, M26m5) | ||
| 9 | Remove front seat (seat backrest) adjustment electric motor at left and right (M25m5, M26m5) and remove electric line from plug housing | The head restraint motor electric line is coupled with the electric line of the front seat (seat backrest) adjustment electric motor in a plug housing. Remove electric lines from plug housing. |
|
| 10 | Remove plastic grommet (6) | ||
| 11 | Remove front seat (seat backrest) adjustment electric motor at left and right (M25m5, M26m5) with electric line | ||
| 12 | Install in the reverse order | ||
| 13 | Check function of multicontour seat |
