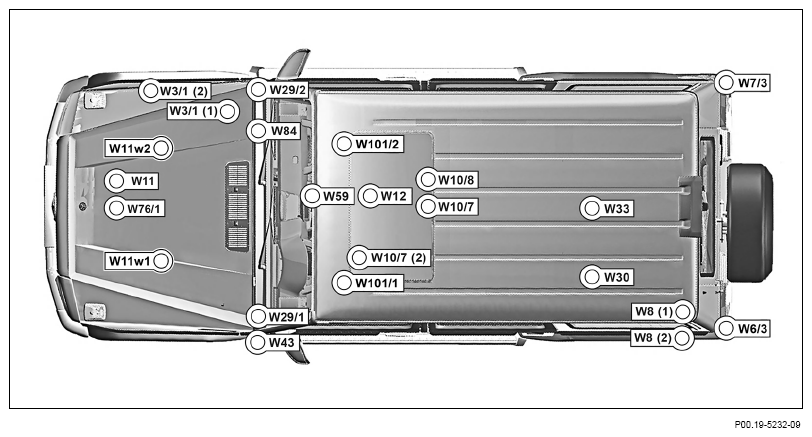

Location And Assignment Of Ground Points - GF00.19-P-2000ZGA
Model 463
as of model year 2013 up to model year 2019
/YoM 12 model refinement package up to YoM 18 model refinement package
| W3 | Left front wheel arch ground point | Assignment for right-hand drive vehicle | PE00.19-P-2800ZGE |
| W3/1 (1) | Ground point (right front wheel well) | Location | GF00.19-P-2001-02ZGA |
| Assignment | PE00.19-P-2800ZGA | ||
| W3/1 (2) | Ground point (right front wheel well) | Location | GF00.19-P-2001-02ZGA |
| Assignment | PE00.19-P-2800ZGA | ||
| W3/2 | Left front wheel arch ground point | Assignment for right-hand drive vehicle | PE00.19-P-2800ZGE |
| W6/3 | Left tail lamp ground point | Location | GF00.19-P-2000-21ZGA |
| Assignment | PE00.19-P-2800ZGA | ||
| W7/3 | Right tail lamp ground point | Location | GF00.19-P-2000-21ZGA |
| Assignment | PE00.19-P-2800ZGA | ||
| W8 (1) | Liftgate ground point | Location | GF00.19-P-2001-06ZGA |
| Assignment | PE00.19-P-2800ZGA | ||
| W8 (2) | Liftgate ground point | Location | GF00.19-P-2001-06ZGA |
| Assignment | PE00.19-P-2800ZGA | ||
| W10 | Front right on-board electrical system battery ground point | Location | GF00.19-P-2001-04ZGA |
| Assignment | PE15.00-P-2103ZGA | ||
| W10/1 | Electronics ground point | Location for M279 | GF00.19-P-2001-02ZGA |
| Assignment for M279 | PE07.61-P-2101ZGE | ||
| W10/7 | Left battery recess ground point | Location | GF00.19-P-2001-04ZGA |
| Assignment | PE00.19-P-2800ZGA | ||
| W10/7 (2) | Left battery recess ground point | Location with surround sound system | GF00.19-P-2001-04ZGA |
| Assignment | PE00.19-P-2800ZGA | ||
| W10/8 | Right battery recess ground point | Location | GF00.19-P-2001-05ZGA |
| Assignment | PE00.19-P-2800ZGB | ||
| W11 | Combustion engine ground point | Location for OM642 | GF00.19-P-2001-02ZGA |
| Location for M157 | GF00.19-P-2001-02ZGA | ||
| Assignment for M157, OM642 | PE00.19-P-2800ZGD | ||
| W11w1 | Left cylinder bank ground point (engine) | Location for M176 | GF00.19-P-2001-22ZGA |
| Location for M273 | GF00.19-P-2001-02ZGA | ||
| Assignment for M273 | PE00.19-P-2800ZGC | ||
| Assignment for M176 | PE07.08-P-2101ZGE | ||
| W11w2 | Right cylinder bank ground point (engine) | Location for M176 | GF00.19-P-2001-02ZGA |
| Location for M273 | GF00.19-P-2001-02ZGA | ||
| Assignment for M273 | PE00.19-P-2800ZGC | ||
| Assignment for M176 | PE07.08-P-2101ZGE | ||
| W12 | Ground point (center console) | Location | GF00.19-P-2001-05ZGA |
| Assignment | PE00.19-P-2800ZGB | ||
| W15/3 | Electronics ground point | Location for M279 | GF00.19-P-2001-02ZGA |
| Assignment for M279 | PE07.61-P-2101ZGE | ||
| W18 | Left front seat crossmember ground point | Assignment for special protection | PE00.19-P-2800ZGE |
| W26 | Supplemental restraint system control unit ground point | Location | GF00.19-P-2001-04ZGA |
| Assignment | PE91.60-P-2106ZGA | ||
| W29/1 | A-pillar ground connection, left | Location | GF00.19-P-2001-04ZGA |
| Assignment | PE00.19-P-2800ZGC | ||
| W29/2 | Right A-pillar ground connection | Location | GF00.19-P-2001-05ZGA |
| Assignment | PE00.19-P-2800ZGD | ||
| W30 | Frame ground point | Location | GF00.19-P-2001-08ZGA |
| Assignment | PE00.19-P-2800ZGE | ||
| W33 | Tank access ground point | Location | GF00.19-P-2001-08ZGA |
| Assignment | PE00.19-P-2800ZGE | ||
| W43 | Ground point (firewall) | Location | GF00.19-P-2001-04ZGA |
| Assignment | PE00.19-P-2800ZGC | ||
| W59 | Windshield frame ground point | Location | GF00.19-P-2001-05ZGA |
| Assignment | PE00.19-P-2800ZGB | ||
| Assignment | PE00.19-P-2800ZGD | ||
| W76/1 | Ground point for fuel filter with heating element | Location | GF00.19-P-2001-02ZGA |
| Assignment | PE07.16-P-2101ZGC | ||
| W84 | Controller Area Network (CAN) ground point | Location | GF00.19-P-2001-05ZGA |
| Assignment | PE00.19-P-2800ZGD | ||
| W94 | Rear air conditioning ground point | Assignment for special protection | PE00.19-P-2800ZGE |
| W101/1 | Driver seat ground point | Location | GF00.19-P-2001-04ZGA |
| Assignment | PE91.60-P-2106ZGA | ||
| W101/2 | Front passenger seat ground point | Location | GF00.19-P-2001-04ZGA |
| Assignment | PE91.60-P-2106ZGA | ||
| Location and assignment of ground points - Rear end | GF00.19-P-2000-21ZGA | ||
| Location of ground points - engine compartment, right | GF00.19-P-2001-02ZGA | ||
| Location of ground points - interior compartment, left | GF00.19-P-2001-04ZGA | ||
| Location of ground points - interior compartment, right | GF00.19-P-2001-05ZGA | ||
| Location of ground points - trunk, left | GF00.19-P-2001-06ZGA | ||
| Location of ground points - frame | GF00.19-P-2001-08ZGA | ||
| Location of ground points - engine compartment, left | GF00.19-P-2001-22ZGA |
