Remove/Install Purge Valve - AR47.30-P-8252GW

MODEL 463 as of model year 2013/facelift 2012

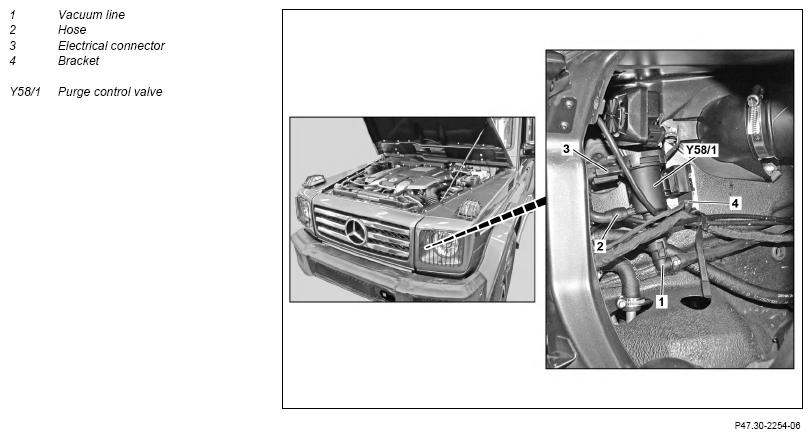

Fig 1: Purge Valve Components Location - Model 463 As Of Model Year 2013/Facelift 2012

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left headlamp unit		AR82.10-P-4730GW
2	Disconnect electrical plug connector (3) on purge switchover valve (Y58/1)
3	Detach hose (2)
4	Detach vacuum line (1)
5	Remove purging switchover valve (Y58/1) from bracket (4)
6	Install in the reverse order
