Remove/Install Expansion Reservoir - AR20.30-P-4950MNA
Engine 176 in model 463
up to model year 2019
Engine 177 in model 205
Engine 279, 642.887 in model 463
Shown on model 205

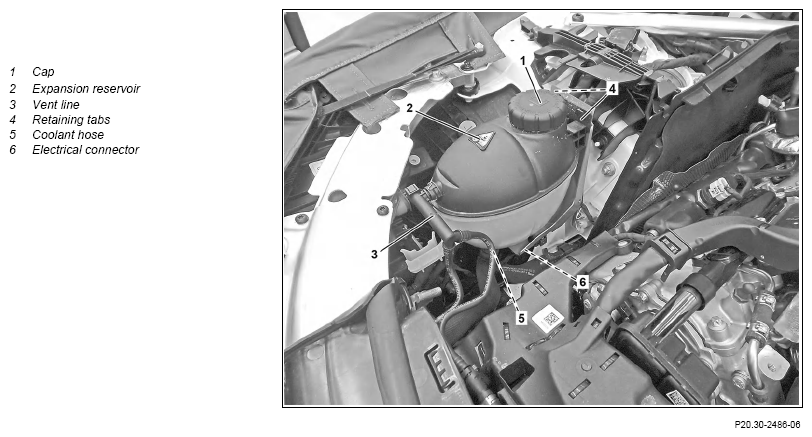

Fig 1: Expansion Reservoir Components Location - Engine 176 In Model 463 Up To Model Year 2019 (Shown On Model 205)
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove/install | |||
| 1 | Unscrew cap (1) on expansion reservoir (2) | ||
| 2 | Suction coolant out of expansion reservoir (2) | Fig 2 | |
| 3 | Detach vent line (3) at expansion reservoir (2) | AR20.20-P-7441-01RQ | |
| 4 | Unlock retaining tabs (4) and pull out expansion reservoir (2) upwards | ||
| 5 | Detach coolant hose (5) on expansion reservoir (2). | Fig 3 | |
| 6 | Disconnect electrical connection (6) from coolant level switch | ||
| 7 | Remove expansion reservoir (2) upwards | ||
| 8 | Install in the reverse order | ||
| Check | |||
| 9 | Check coolant level and correct if necessary | *BF20.00-P-1001-02GA | |
| *BF20.00-P-1001-02W | |||
| *BF20.00-P-1001-06A | |||
| *BF20.00-P-1001-02LA | |||
| 10 | Check engine cooling system for leaktightness | Engine 176 in model 463 up to model year 2019 Engine 279, 642.887 in model 463 |
AR20.00-P-1010MNF |
| Engine 177 in model 205 | AR20.00-P-1010LW | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Perform an engine test run and check engine cooling system for proper operation |
COOLING SYSTEM
| Number | Designation | Engine 279 in model 463 | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-02GA | Cooling system | Workshop replacement amount | Main circuit | Liter | ≈ 14, 0 |
| Low-temperature circuit | Liter | ≈ 5, 0 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | ||
| -38°C and below | % | 55/45 | |||
| Specifications for Operating Fluids | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids | BB00.40-P-0325-06A | ||||
| Specifications for Operating Fluids | BB00.40-P-0326-06A | ||||
COOLING SYSTEM
| Number | Designation | Engine 177 in model 205 | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-02LA | Cooling system | Workshop replacement amount | Main circuit | Liter | ≈ 11, 1 |
| Low-temperature circuit | Liter | ≈ 4, 6 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | ||
| -38°C and below | % | 55/45 | |||
| Specifications for Operating Fluids | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids | BB00.40-P-0325-06A | ||||
| Specifications for Operating Fluids | BB00.40-P-0326-06A | ||||
COOLING SYSTEM
| Number | Designation | Engine 642 in model 463 (except 463.348) | Engine 642 in model 463.348 | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02W | Cooling system | Workshop replacement amount | Main circuit | I | ≈ 10, 5 | ≈ 8, 6 |
| Low-temperature circuit | I | - | ≈ 1, 2 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | 50/50 | ||
| -38°C and below | % | 55/45 | 55/45 | |||
| Specification | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Specification | BB00.40-P-0325-00A | BB00.40-P-0325-06A | ||||
| Specification | BB00.40-P-0326-00A | BB00.40-P-0326-06A | ||||
COOLING SYSTEM
| Number | Designation | Engine 176 in model 463 up to model year 2019 | Engine 176 in model 463 as of model year 2019 | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-06A | Cooling system | Workshop replacement amount | Main circuit | Liter | ≈ 6, 4 | ≈ 13 |
| Low-temperature circuit | Liter | ≈ 1, 5 | ≈ 4, 6 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | 50/50 | ||
| -38°C and below | % | 55/45 | 55/45 | |||
| Specifications for Operating Fluids | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids | BB00.40-P-0325-06A | BB00.40-P-0325-06A | ||||
| Specifications for Operating Fluids | BB00.40-P-0326-06A | BB00.40-P-0326-06A | ||||
