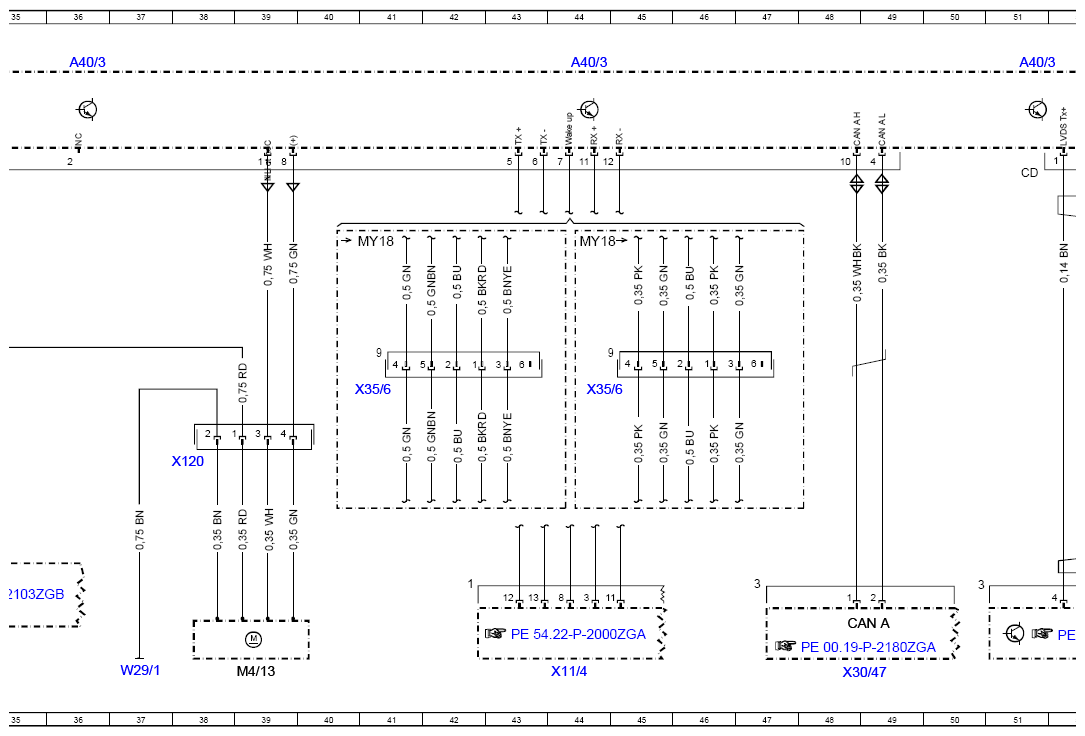

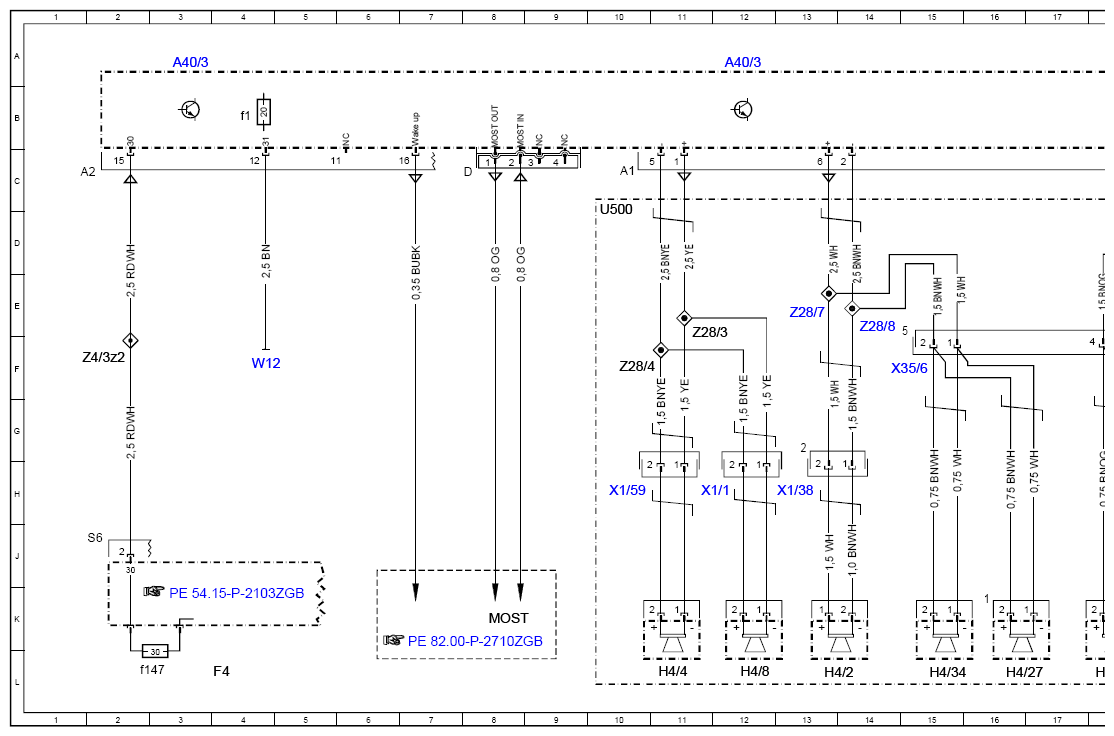

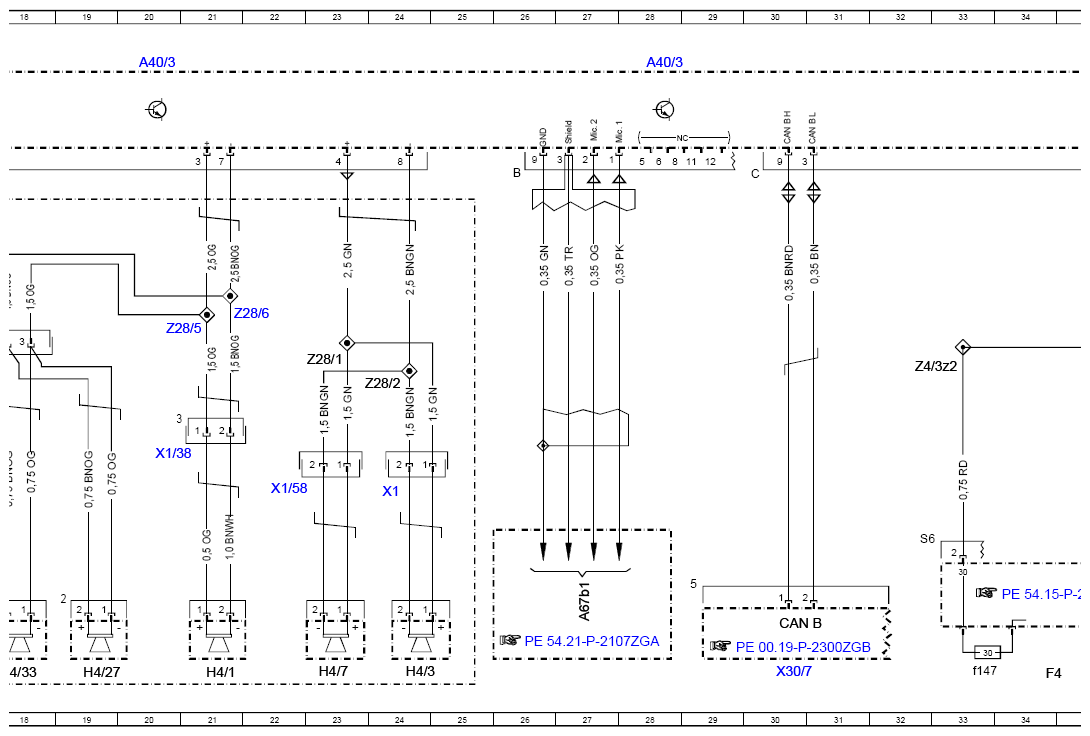

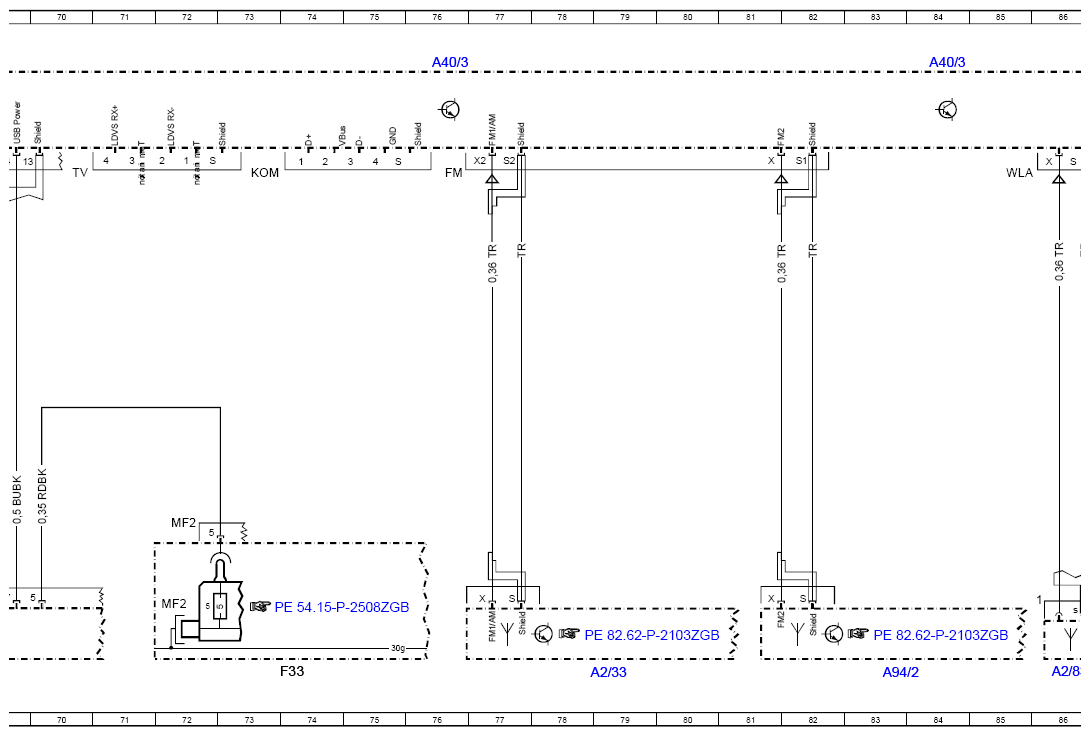

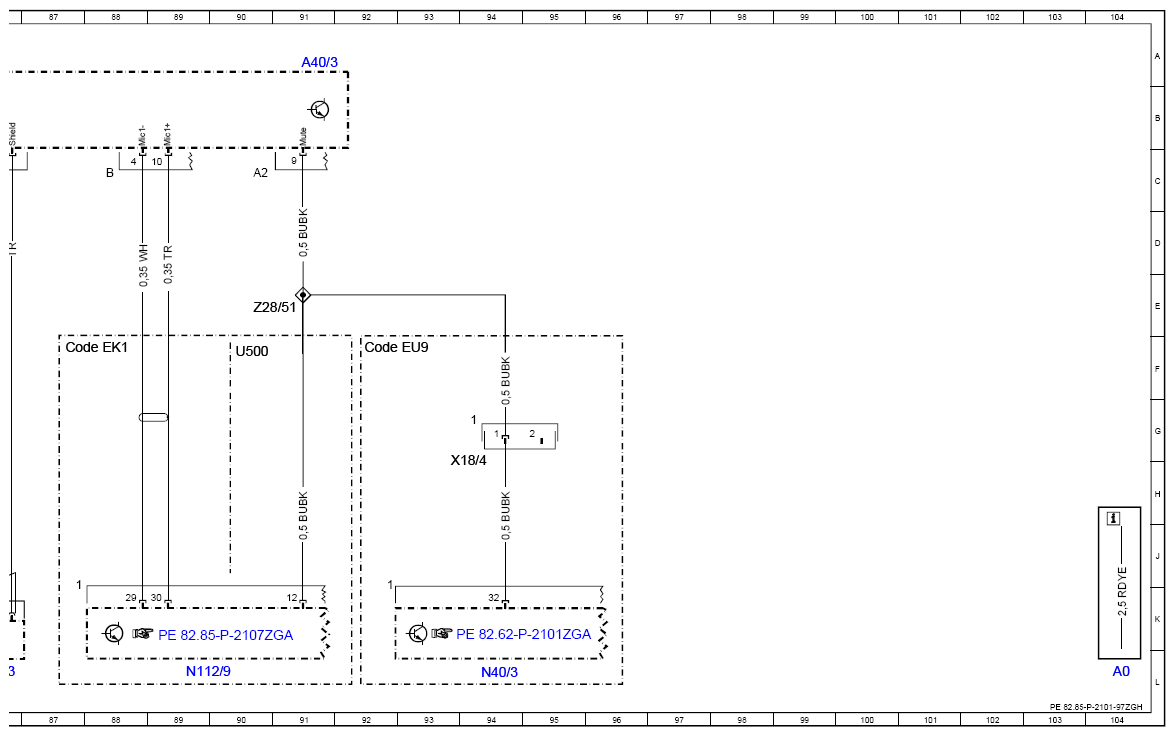

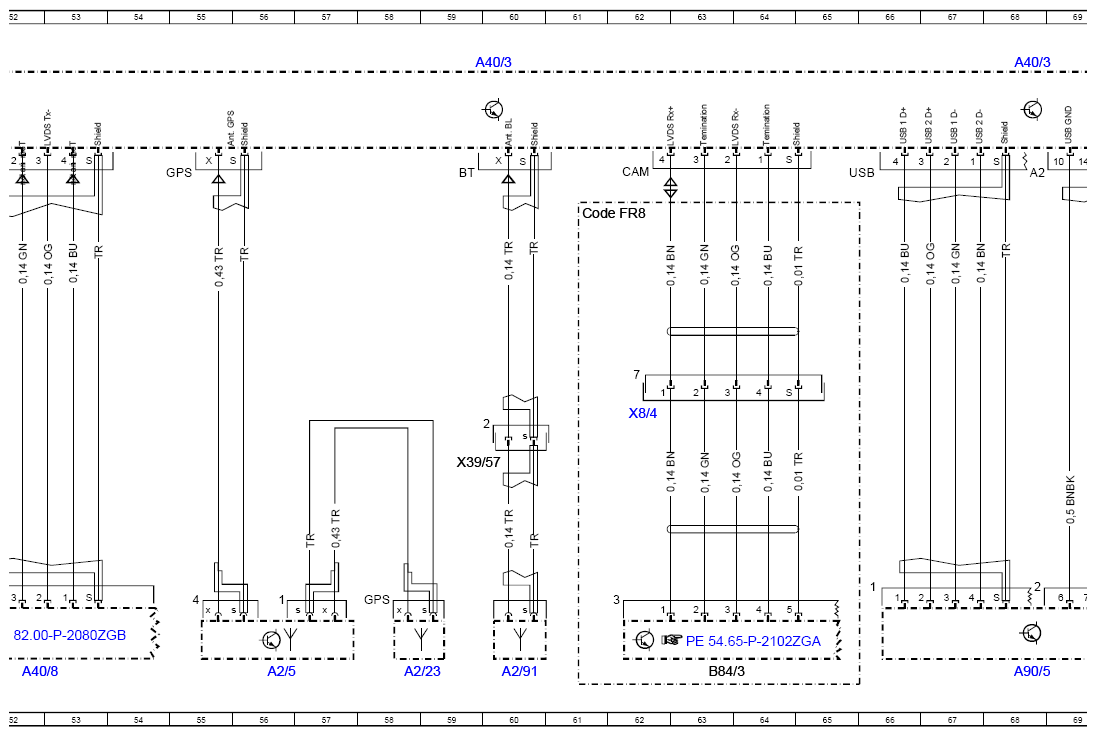

Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram - PE82.85-P-2101-97ZGH
Model 463
as of model year 2017 up to model year 2019
with code ZU8 (National version for USA)
except code ZJ1 (Local version for Japan)
Control unit A40/3
| Code: | Designation: | Position: |
|---|---|---|
| A2/23 | Left front GPS antenna | 58L |
| A2/33 | AM and FM antenna amplifier | 79L |
| A2/5 | Global positioning system antenna splitter | 56L |
| A2/83 | WLAN antenna | 86L |
| A2/91 | Bluetooth® antenna | 60L |
| A40/3 | COMAND control unit | 3A |
| A40/3 | COMAND control unit | 12A |
| A40/3 | COMAND control unit | 20A |
| A40/3 | COMAND control unit | 28A |
| A40/3 | COMAND control unit | 36A |
| A40/3 | COMAND control unit | 44A |
| A40/3 | COMAND control unit | 51A |
| A40/3 | COMAND control unit | 60A |
| A40/3 | COMAND control unit | 68A |
| A40/3 | COMAND control unit | 76A |
| A40/3 | COMAND control unit | 84A |
| A40/3 | COMAND control unit | 91A |
| A40/3f1 | COMAND electrical fuse | 4B |
| A40/8 | Audio/COMAND display | 52L |
| A67b1 | Hands-free system microphone | 27J |
| A90/5 | Multimedia connection unit | 68L |
| A94/2 | TV 2 antenna amplifier | 83L |
| B84/3 | Backup camera | 63L |
| CAN A | Telematics CAN | 48K |
| CAN B | Interior CAN | 30K |
| Code EK1 | HERMES LTE communications module | 87F |
| Code EU9 | Surround sound system (Harman/Kardon Logic 7) | 92F |
| Code FR8 | Backup camera | 61D |
| F33 | Battery compartment prefuse box | 74L |
| F33MF2 | Multiple fuse 2 | 72K |
| F4 | Rear fuse and relay module | 4L |
| F4 | Rear fuse and relay module | 34L |
| F4f147 | Fuse 147 | 3L |
| F4f147 | Fuse 147 | 33L |
| H4/1 | Left front door midrange speaker | 21L |
| H4/2 | Right front door midrange speaker | 13L |
| H4/27 | Center instrument panel speaker | 16L |
| H4/27 | Center instrument panel speaker | 19L |
| H4/3 | Left rear door midrange speaker | 24L |
| H4/33 | Left instrument panel tweeter | 18L |
| H4/34 | Right instrument panel tweeter | 15L |
| H4/4 | Right rear door midrange speaker | 11L |
| H4/7 | Left rear surround speaker | 23L |
| H4/8 | Right rear surround speaker | 12L |
| M4/13 | COMAND fan motor | 39L |
| MOST | Media Oriented System Transport | 8K |
| N112/9 | HERMES control unit | 89L |
| N40/3 | Sound system amplifier control unit | 94L |
| U500 | Not valid for sound system | 10D |
| U500 | Not valid for sound system | 90F |
| W12 | Ground point (center console) | 4F |
| W29/1 | A-pillar ground connection, left | 37L |
| X1 | Left rear speaker electrical connector | 24H |
| X1/1 | Right rear speaker electrical connector | 12H |
| X1/38 | Left front door sound system electrical connector | 13H |
| X1/38 | Left front door sound system electrical connector | 20G |
| X1/58 | Left rear door speaker electrical connector | 22H |
| X1/59 | Right rear door speaker electrical connector | 10H |
| X11/4 | Diagnostic connector | 44L |
| X120 | Radio fan electrical connector | 38H |
| X18/4 | Electrical connector, sound system | 94H |
| X30/47 | Telematics CAN (CAN A) potential distributor electrical connector | 48L |
| X30/7 | Interior CAN 2 (CAN B) potential distributor electrical connector | 30L |
| X35/6 | Instrument panel and module box electrical connector | 15F |
| X35/6 | Instrument panel and module box electrical connector | 41F |
| X35/6 | Instrument panel and module box electrical connector | 44F |
| X39/57 | Bluetooth® module electrical connector | 59H |
| X8/4 | Tailgate electrical connector | 62G |
| Z28/1 | Left rear speaker group connector sleeve (+ signal) | 23F |
| Z28/2 | Left rear speaker group connector sleeve (- signal) | 24F |
| Z28/3 | Right rear speaker group connector sleeve (+ signal) | 11F |
| Z28/4 | Right rear speaker group connector sleeve (- signal) | 10F |
| Z28/5 | Left front door speaker group connector sleeve (+ signal) | 21E |
| Z28/51 | Telephone mute connector sleeve | 91E |
| Z28/6 | Left front door speaker group connector sleeve (- signal) | 21E |
| Z28/7 | Right front door speaker group connector sleeve (+ signal) | 13E |
| Z28/8 | Right front door speaker group connector sleeve (- signal) | 14E |
| Z4/3z2 | Circuit 30 connector sleeve 2 | 2F |
| Z4/3z2 | Circuit 30 connector sleeve 2 | 33F |
