Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram - PE82.85-P-2101-97ZGG
Model 463
as of model year 2017 up to model year 2019
except code ZJ1 (Local version for Japan)
except code ZU8 (National version for USA)

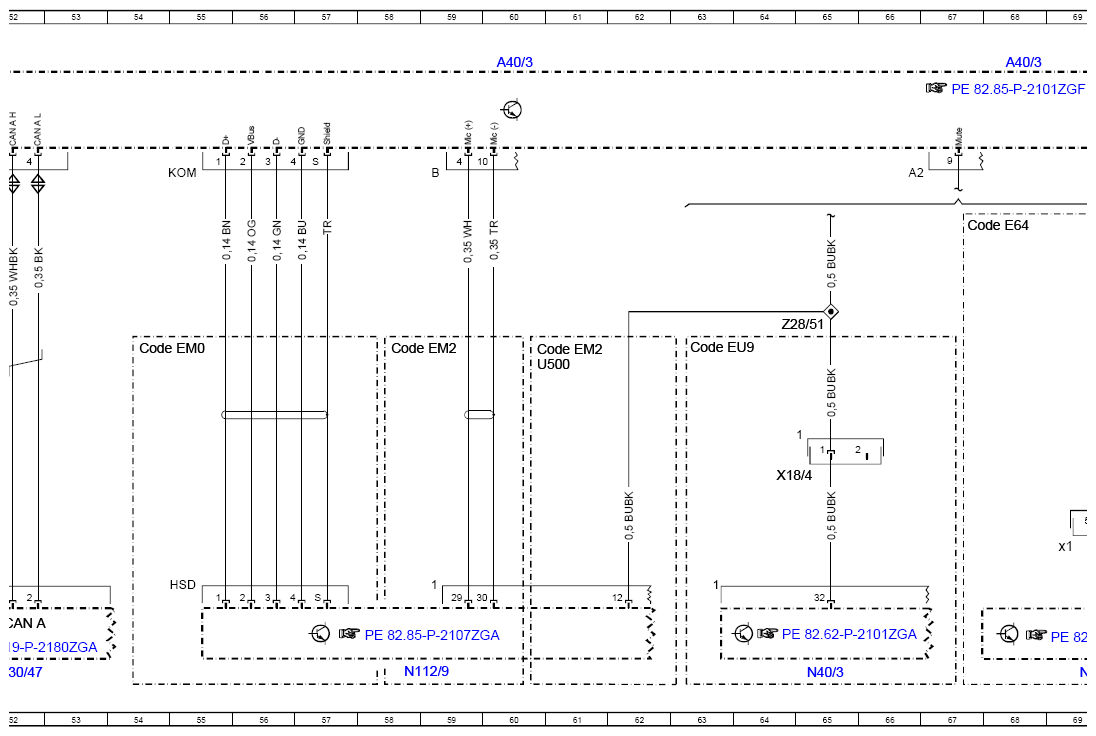

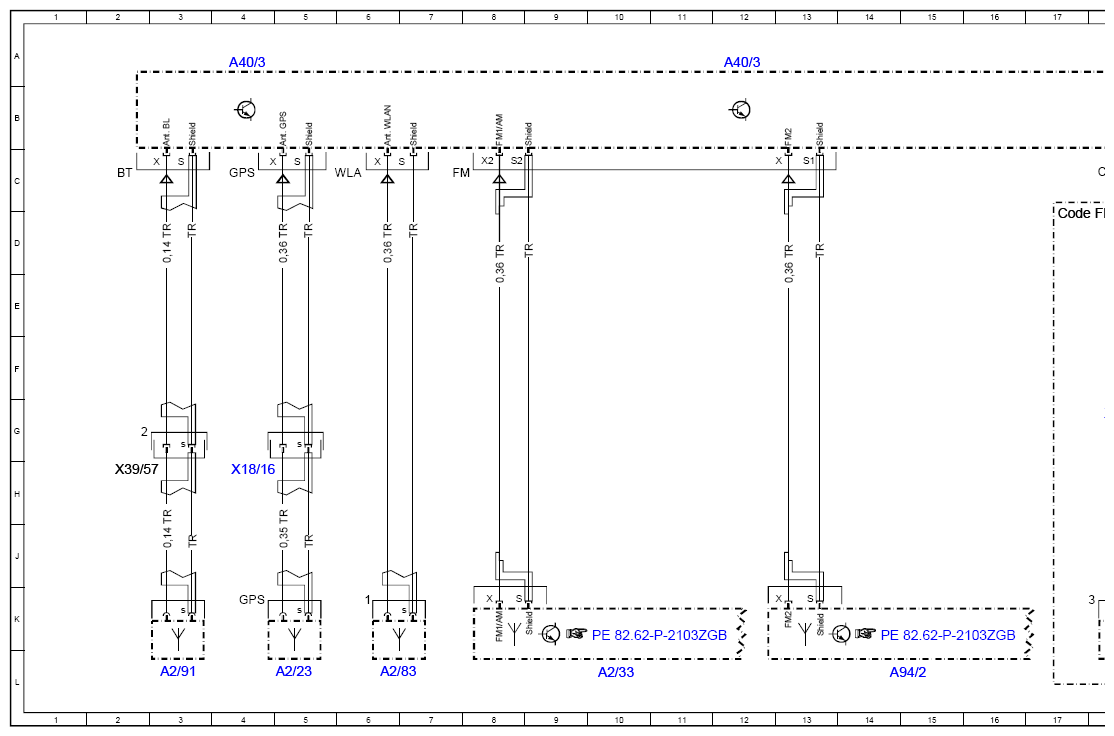

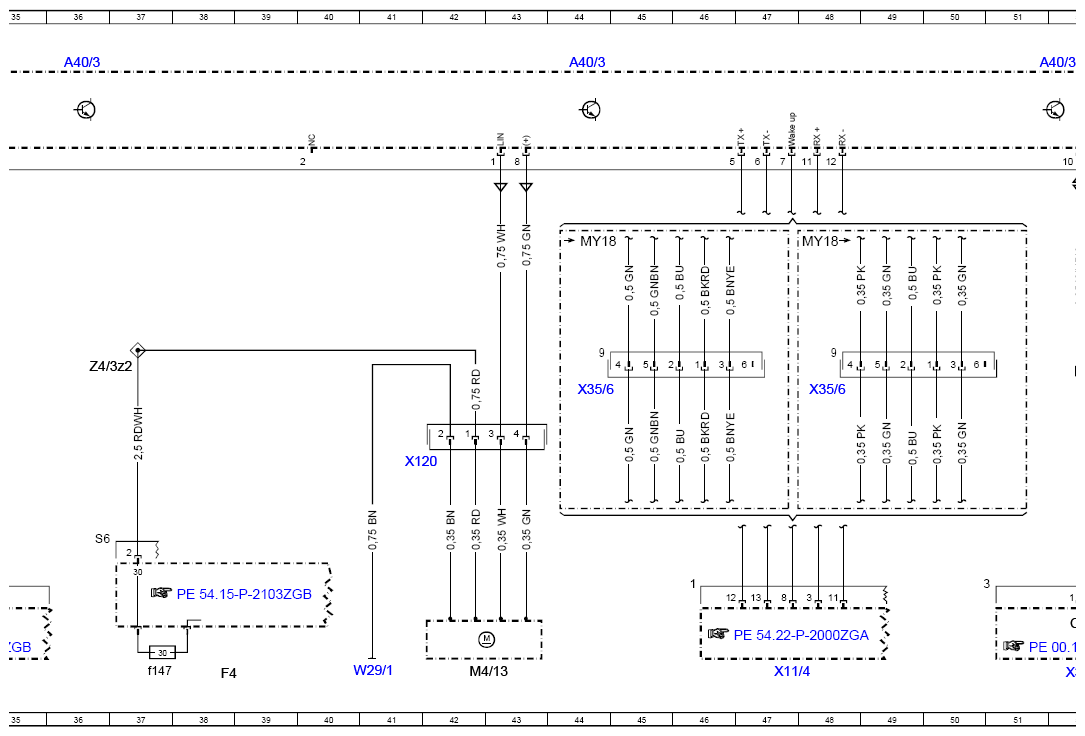

Control unit A40/3, Sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A2/23 | Left front GPS antenna | 5L |
| A2/33 | AM and FM antenna amplifier | 10L |
| A2/83 | WLAN antenna | 6L |
| A2/91 | Bluetooth® antenna | 3L |
| A40/3 | COMAND control unit | 4A |
| A40/3 | COMAND control unit | 12A |
| A40/3 | COMAND control unit | 20A |
| A40/3 | COMAND control unit | 28A |
| A40/3 | COMAND control unit | 36A |
| A40/3 | COMAND control unit | 44A |
| A40/3 | COMAND control unit | 52A |
| A40/3 | COMAND control unit | 60A |
| A40/3 | COMAND control unit | 68A |
| A90/5 | Multimedia connection unit | 24L |
| A94/2 | TV 2 antenna amplifier | 14L |
| B84/3 | Backup camera | 19L |
| CAN A | Telematics CAN | 52K |
| CAN B | Interior CAN | 34K |
| Code E64 | ECALL RUSSIA (GLONASS) | 67D |
| Code EM0 | Live Traffic capability (HERMES) | 54F |
| Code EM2 | HERMES UMTS communications module | 58F |
| Code EM2 | HERMES UMTS communications module | 60F |
| Code EU9 | Surround sound system (Harman/Kardon Logic 7) | 63F |
| Code FR8 | Backup camera | 17D |
| F33 | Battery compartment prefuse box | 29L |
| F33MF2 | Multiple fuse 2 | 28K |
| F4 | Rear fuse and relay module | 38L |
| F4f147 | Fuse 147 | 37L |
| M4/13 | COMAND fan motor | 42L |
| N112/9 | HERMES control unit | 58L |
| N167 | E-Call Russia (GLONASS) control unit | 69L |
| N167x1 | E-Call Russia (GLONASS) control unit electrical connector 1 | 69J |
| N40/3 | Sound system amplifier control unit | 65L |
| U500 | Not valid for sound system | 60F |
| W29/1 | A-pillar ground connection, left | 41L |
| X11/4 | Diagnostic connector | 47L |
| X120 | Radio fan electrical connector | 42H |
| X18/16 | Navigation system interior wiring harness electrical connector | 4H |
| X18/4 | Electrical connector, sound system | 64H |
| X30/47 | Telematics CAN (CAN A) potential distributor electrical connector | 52L |
| X30/7 | Interior CAN 2 (CAN B) potential distributor electrical connector | 34L |
| X35/6 | Instrument panel and module box electrical connector | 44F |
| X35/6 | Instrument panel and module box electrical connector | 48F |
| X39/57 | Bluetooth® module electrical connector | 2H |
| X8/4 | Tailgate electrical connector | 18G |
| Z28/51 | Telephone mute connector sleeve | 65E |
| Z4/3z2 | Circuit 30 connector sleeve 2 | 37F |
