Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram - PE82.85-P-2101-97ZGA
Model 463
as of model year 2013 up to model year 2017
except code ZJ1 (Local version for Japan)
except code ZU8 (National version for USA)
/YoM 12 model refinement package, control unit A40/3, sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |

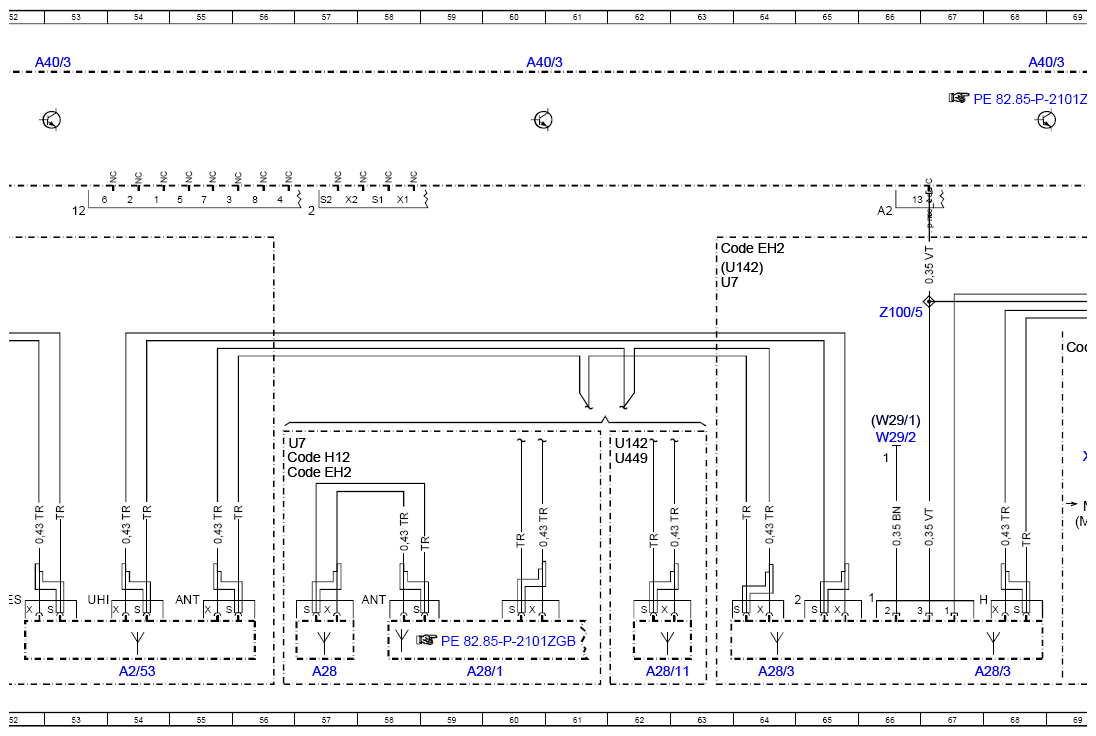

| A2/53 | Mobile phone and stationary heater radio remote control antenna splitter | 54L |
| A28 | Radio and portable CTEL antenna | 57L |
| A28/1 | Radio and portable CTEL antenna splitter | 59L |
| A28/11 | Multifunction antenna | 62L |
| A28/11 | Multifunction antenna | 47L |
| A28/3 | Cellular telephone system antenna amplifier/compensator | 64L |
| A28/3 | Cellular telephone system antenna amplifier/compensator | 67L |

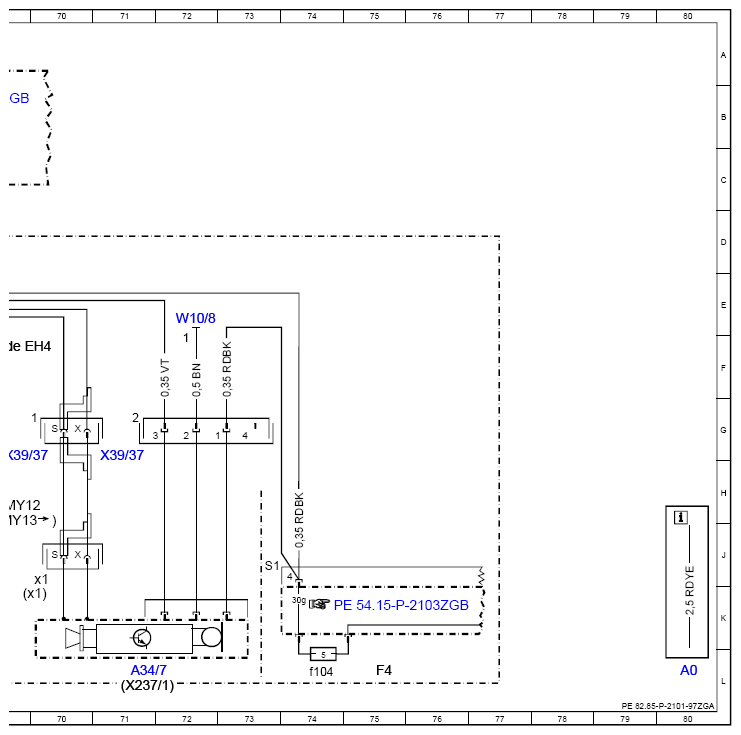

| A34/7 | Bluetooth module | 71L |
| A34/7x1 | Bluetooth® module electrical connector 1 | 70J |

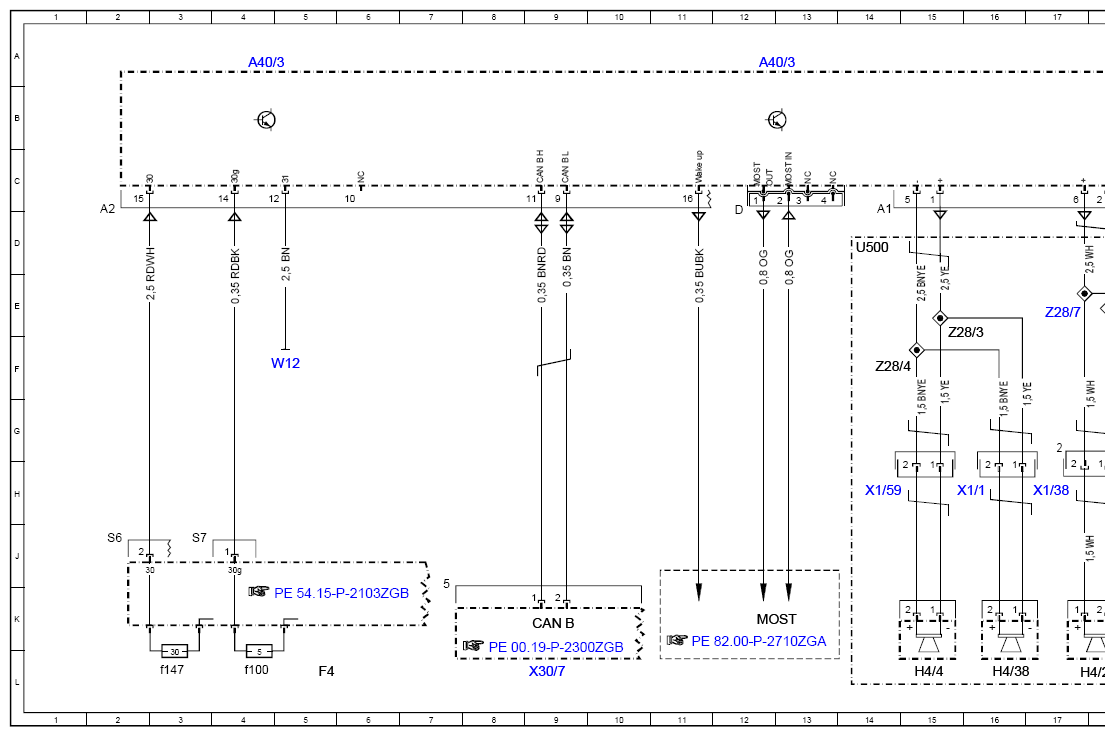

| A40/3 | COMAND operating, display and control unit | 4A |
| A40/3 | COMAND operating, display and control unit | 12A |
| A40/3 | COMAND operating, display and control unit | 20A |
| A40/3 | COMAND operating, display and control unit | 60A |
| A40/3 | COMAND operating, display and control unit | 68A |
| A40/3 | COMAND operating, display and control unit | 28A |
| A40/3 | COMAND operating, display and control unit | 36A |
| A40/3 | COMAND operating, display and control unit | 44A |
| A40/3 | COMAND operating, display and control unit | 52A |
| A40/8 | Audio/COMAND display | 44L |
| A6/1 | STH radio remote control receiver | 50L |
| A67b1 | Hands-free system microphone | 30J |

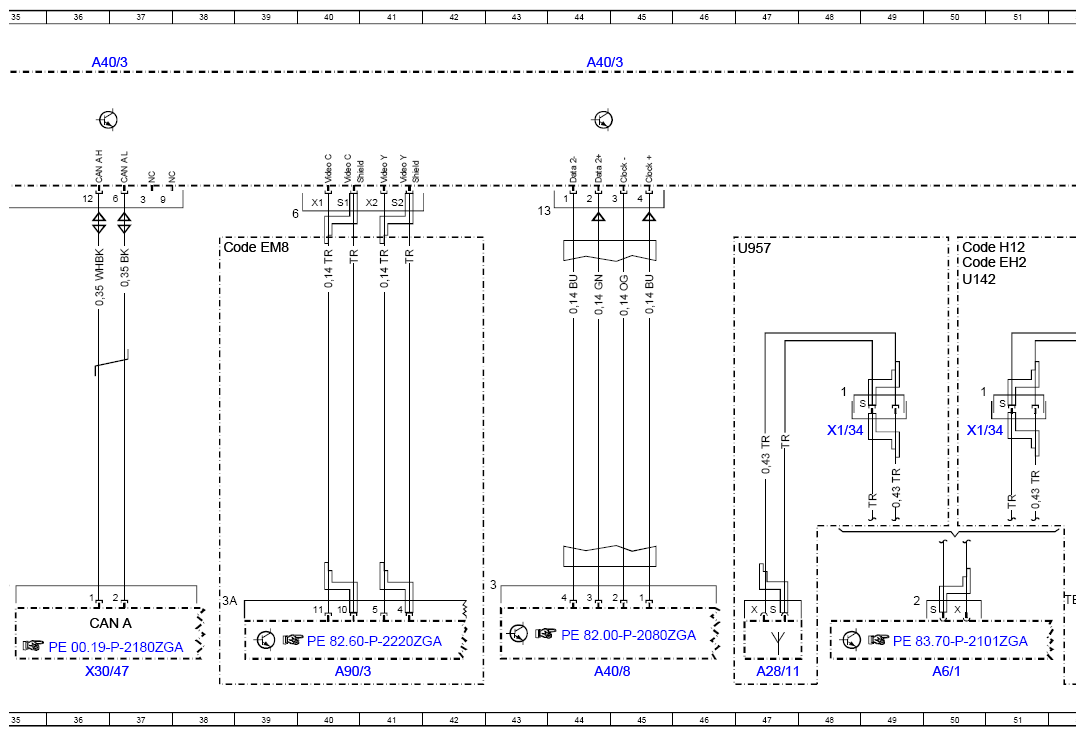

| A90/3 | TV digital tuner | 40L |
| CAN A | Telematics CAN | 36K |
| CAN B | Interior CAN | 9K |
| Code EH2 | Comfort telephony | 50D |
| Code EH2 | Comfort telephony | 56H |
| Code EH2 | Comfort telephony | 63D |
| Code EH4 | Telephone module with Bluetooth® SAP | 69F |
| Code EM8 | TV tuner | 38D |
| Code H12 | Auxiliary heater | 50D |
| Code H12 | Auxiliary heater | 56G |
| F4 | Rear fuse and relay module | 5L |
| F4 | Rear fuse and relay module | 75L |
| F4f100 | Fuse 100 | 4L |
| F4f104 | Fuse 104 | 74L |
| F4f147 | Fuse 147 | 3L |

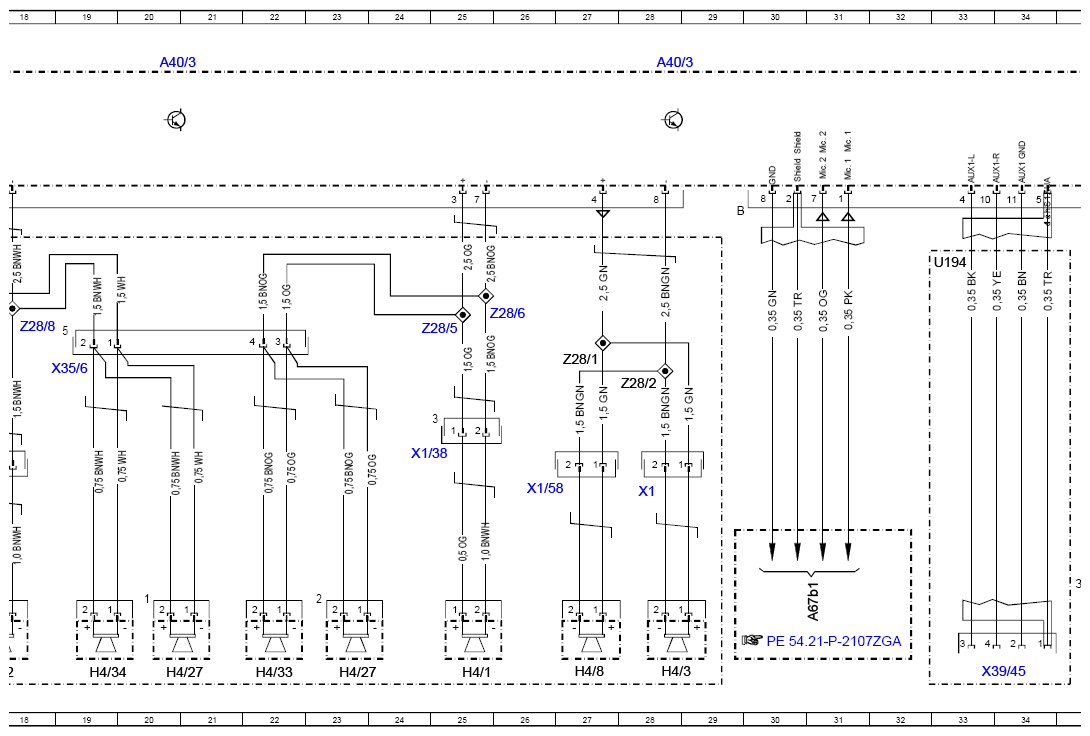

| H4/1 | Left front door midrange speaker | 25L |
| H4/2 | Right front door midrange speaker | 17L |
| H4/27 | Center cockpit speaker (centerfill) | 20L |
| H4/27 | Center cockpit speaker (centerfill) | 23L |
| H4/3 | Left rear door midrange speaker | 28L |
| H4/33 | Left cockpit tweeter | 22L |
| H4/34 | Right cockpit tweeter | 19L |
| H4/38 | Right rear door tweeter | 16L |
| H4/4 | Right rear door midrange speaker | 15L |
| H4/8 | Right rear speaker | 27L |
| MOST | Media Oriented System Transport | 12K |
| U142 | Not valid for convertible | 62G |
| U142 | Not valid for convertible | 50E |
| U142 | Not valid for convertible | 63D |
| U194 | Valid for AUX jack | 33D |
| U449 | Not valid for code H12 Auxiliary heater | 62H |
| U500 | Not valid for Sound System | 14D |
| U7 | Valid for convertibles | 56G |
| U7 | Valid for convertibles | 63E |
| U957 | Valid without mobile phone | 47D |
| W10/8 | Ground (right battery recess) | 72E |
| W12 | Ground point (center console) | 5F |
| W29/1 | A-pillar ground connection, left | 66G |
| W29/2 | Ground (right A-pillar) | 66G |
| X1 | Left rear speaker connector | 28H |
| X1/1 | Right rear speaker connector | 16H |
| X1/34 | Roof antenna connector | 50G |
| X1/34 | Roof antenna connector | 48G |
| X1/38 | Left front door sound system electrical connector | 17H |
| X1/38 | Left front door sound system electrical connector | 24G |
| X1/58 | Left rear door speaker connector | 26H |
| X1/59 | Right rear door speaker connector | 14H |
| X237/1 | Mobile phone contact plate | 71L |
| X237/1x1 | Mobile phone contact plate electrical connection | 70K |
| X30/47 | Telematics CAN (CAN A) potential distributor electrical connector | 36L |
| X30/7 | Interior CAN 2 (CAN B) potential distributor electrical connector | 9L |
| X35/6 | Cockpit/module box separation point | 19F |
| X39/37 | CTEL separation point | 69G |
| X39/37 | CTEL separation point | 71G |
| X39/45 | AUX jack electrical connector | 33L |
| Z100/5 | Wake-up signal connector sleeve 2 | 66E |
| Z28/1 | Left rear speaker group connector sleeve (+ signal) | 27F |
| Z28/2 | Left rear speaker group connector sleeve (- signal) | 28F |
| Z28/3 | Right rear speaker group connector sleeve (+ signal) | 15F |
| Z28/4 | Right rear speaker group connector sleeve (- signal) | 14F |
| Z28/5 | Left front door speaker group connector sleeve (+ signal) | 25E |
| Z28/6 | Left front door speaker group connector sleeve (- signal) | 25E |
| Z28/7 | Right front door speaker group connector sleeve (+ signal) | 17E |
| Z28/8 | Right front door speaker group connector sleeve (- signal) | 18E |
