Remove/Install Overhead Control Panel Control Unit - AR82.20-P-1000GW
Model 463
as of model year 2013 up to model year 2019

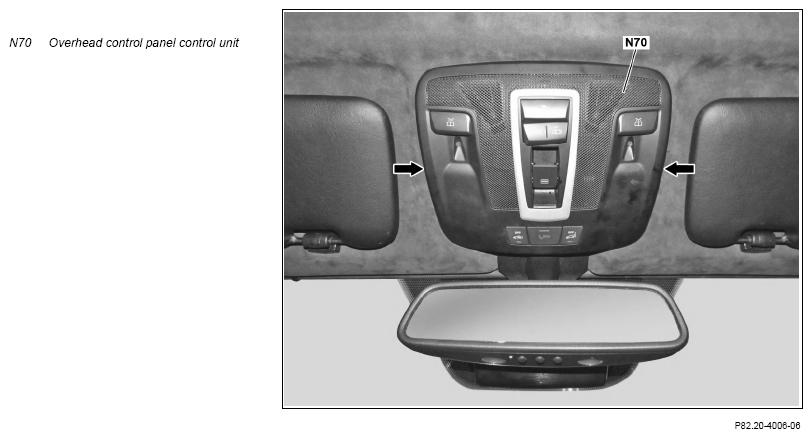

Fig 1: Overhead Control Panel Control Unit Components Location - Model 463 As Of Model Year 2013 Up To Model Year 2019
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove ground line at battery. | Model 463 (except 463.234/236/241/242/248) as of model year 2013 up to model year 2019 |
AR54.10-P-0003GW |
| 2 | Pry side covers (arrows) out of overhead control panel control unit (N70). | ||
| 3 | Unclip overhead control panel control unit (N70) in direction of vehicle interior. | ||
| 4 | Disconnect electrical connectors from overhead control panel control unit (N70). | ||
| 5 | Install in reverse order. | ||
| Check | |||
| 6 | Check all functions of overhead control panel control unit (N70). | ||
| 7 | Read out and clear fault memory with XENTRY Diagnosis. | ||
| AD00.00-P-2000-04A |
