Wiring Diagram For Front Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2114-97ZHA
Model 463 (except 463.342) as of model year 2019 Control unit N10/6
| Code: | Designation: | Position: |
|---|---|---|

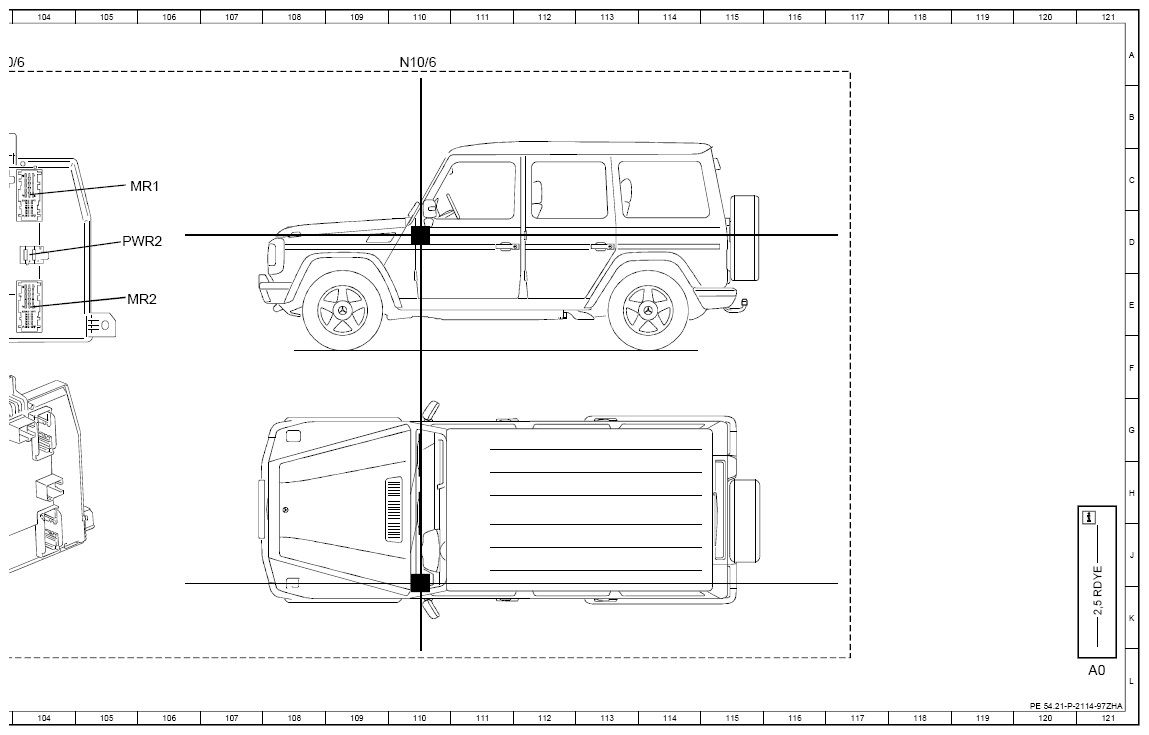

| A0 | Use of wiring diagrams | 121L |
| A50/6 | Dedicated Short-Range Communications control unit | 20L |
| A70/1 | Analog clock | 59L |
| B14 | Outside temperature sensor | 75L |
| B38/2 | Rain and light sensor with extended function | 29L |
| B95 | Battery sensor | 31L |
| CAN B | Interior CAN | 13K |
| Code PA3 | Exterior stainless steel package | 25J |
| Code ZJ1 | Japan national version | 20J |
| E1 | Left front lamp unit | 79L |
| E13/1 | Glove box lamp | 56L |
| E17/15 | Right front footwell lamp | 54L |
| E17/15 | Right front footwell lamp | 57J |
| El 7/16 | Left front footweII I amp | 54L |
| El 7/16 | Left front footweII I amp | 57J |
| El 7/17 | Left rear footwell lamp | 35L |
| E17/18 | Right rear footwell lamp | 35L |
| E17/47 | Left front illuminated door sill molding | 25L |
| E17/48 | Right front illuminated door sill molding | 26L |
| E17/51 | Left rear illuminated door sill molding | 33L |
| E17/52 | Right rear illuminated door sill molding | 34L |
| E2 | Right front lamp unit | 92L |
| E43/18 | Driver-side outside ambient lighting | 57J |
| E43/19 | Passenger-side interior ambiance illumination | 57K |
| E43/20 | Passenger-side exterior ambiance illumination | 57K |
| E43/25 | Inner upper digital instrument cluster display ambient lighting | 57K |
| E43/26 | Outer upper digital instrument cluster display ambient lighting | 57K |
| E43/27 | Inner lower digital instrument cluster full display ambient lighting | 57L |
| E43/28 | Outer lower digital instrument cluster display ambient lighting | 57L |
| E6/1 | Left turn signal lamp | 79L |
| E6/2 | Right turn signal lamp | 92L |
| G1 | On-board electrical system battery | 31L |

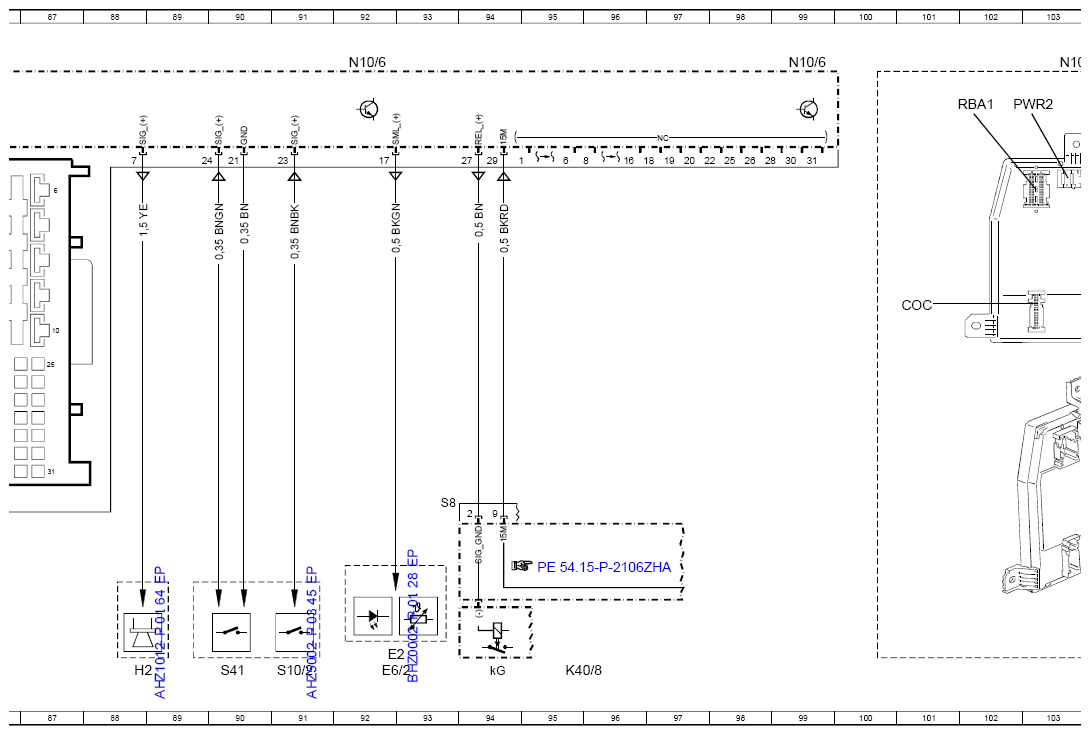

| H2 | Horn 1 | 88L |
| H2/1 | Horn 2 | 68L |

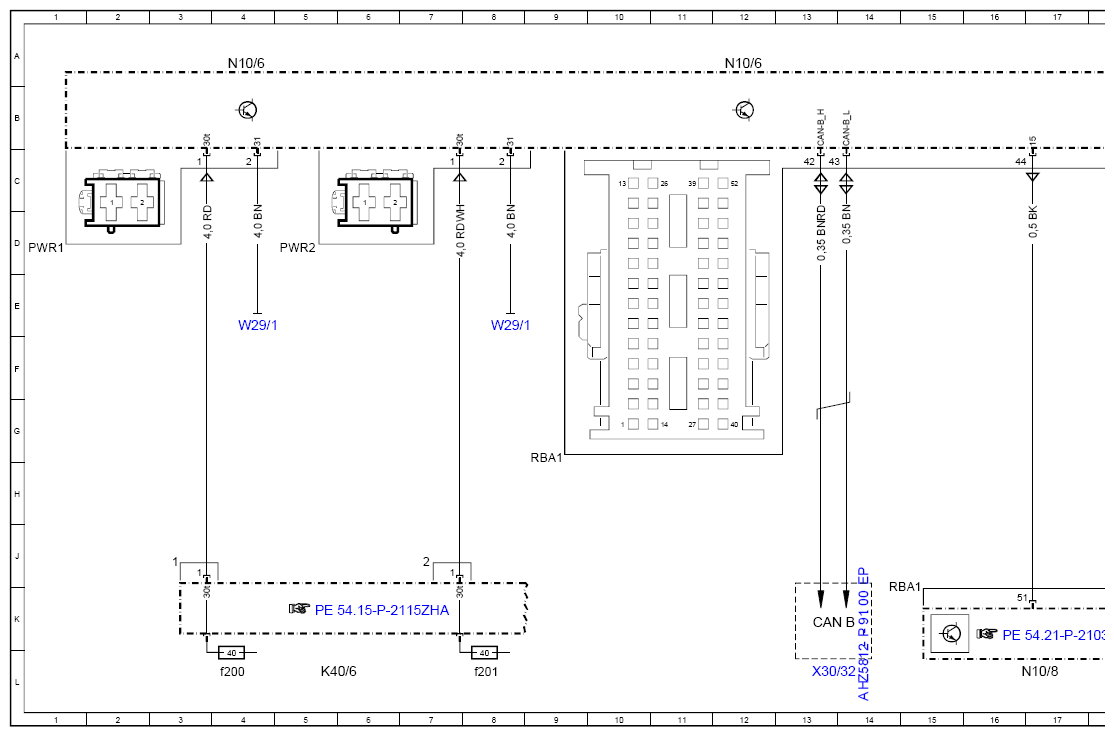

| K40/6 | Left fuse and relay module | 5L |
| K40/6f200 | Fuse 200 | 4L |
| K40/6f201 | Fuse 201 | 8L |
| K40/8 | Engine fuse and relay module | 95L |
| K40/8kG | Engine compartment terminal 15 relay | 94L |
| K57/6 | Starter battery prefuse box battery disconnect switch relay | 23L |
| K57/7 | Engine compartment prefuse box battery disconnect switch relay | 23L |
| LIN 1 | Instrument panel LIN | 59J |
| LIN B15 | Battery sensor LIN | 31J |
| LIN B16 | Rain and light sensor LIN | 29K |
| LIN B16 | Rain and light sensor LIN | 76K |

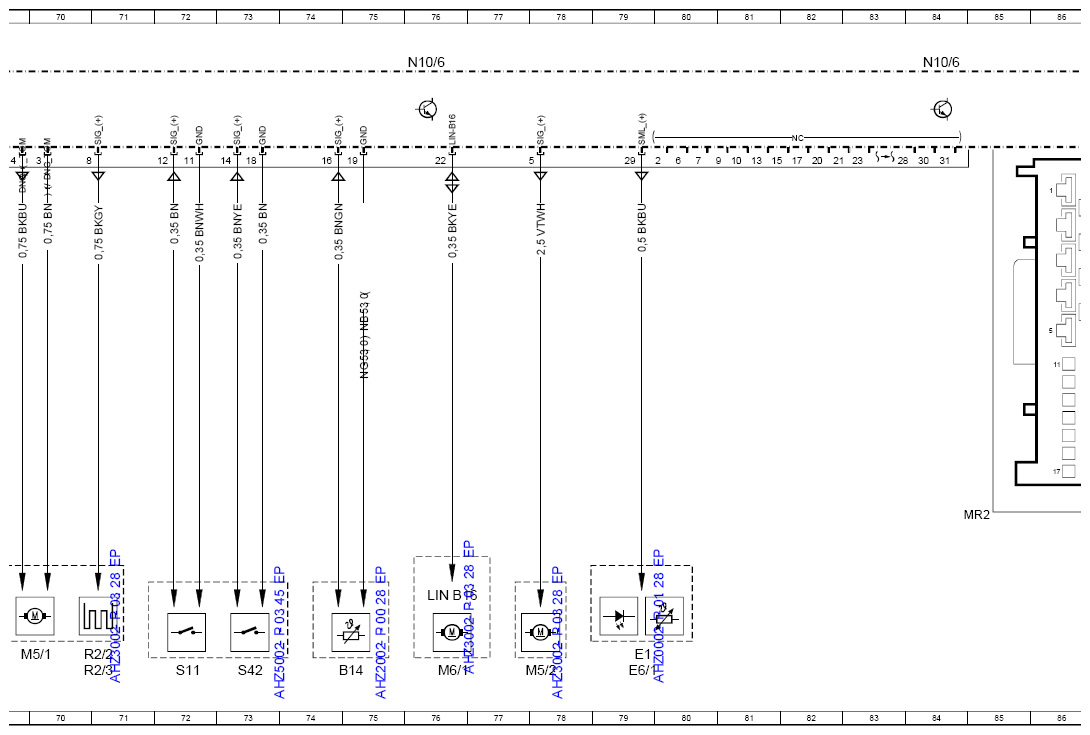

| M5/1 | Windshield washer system pump | 69L |
| M5/2 | Headlamp cleaning system pump | 78L |
| M6/1 | Wiper motor | 76L |
| N10/6 | Front SAM control unit | 4A |
| N10/6 | Front SAM control unit | 12A |
| N10/6 | Front SAM control unit | 20A |
| N10/6 | Front SAM control unit | 28A |
| N10/6 | Front SAM control unit | 36A |
| N10/6 | Front SAM control unit | 52A |
| N10/6 | Front SAM control unit | 44A |
| N10/6 | Front SAM control unit | 60A |
| N10/6 | Front SAM control unit | 99A |
| N10/6 | Front SAM control unit | 68A |
| N10/6 | Front SAM control unit | 76A |
| N10/6 | Front SAM control unit | 84A |
| N10/6 | Front SAM control unit | 92A |
| N10/6 | Front SAM control unit | 103A |
| N10/6 | Front SAM control unit | 110A |
| N10/8 | Rear SAM control unit | 17L |

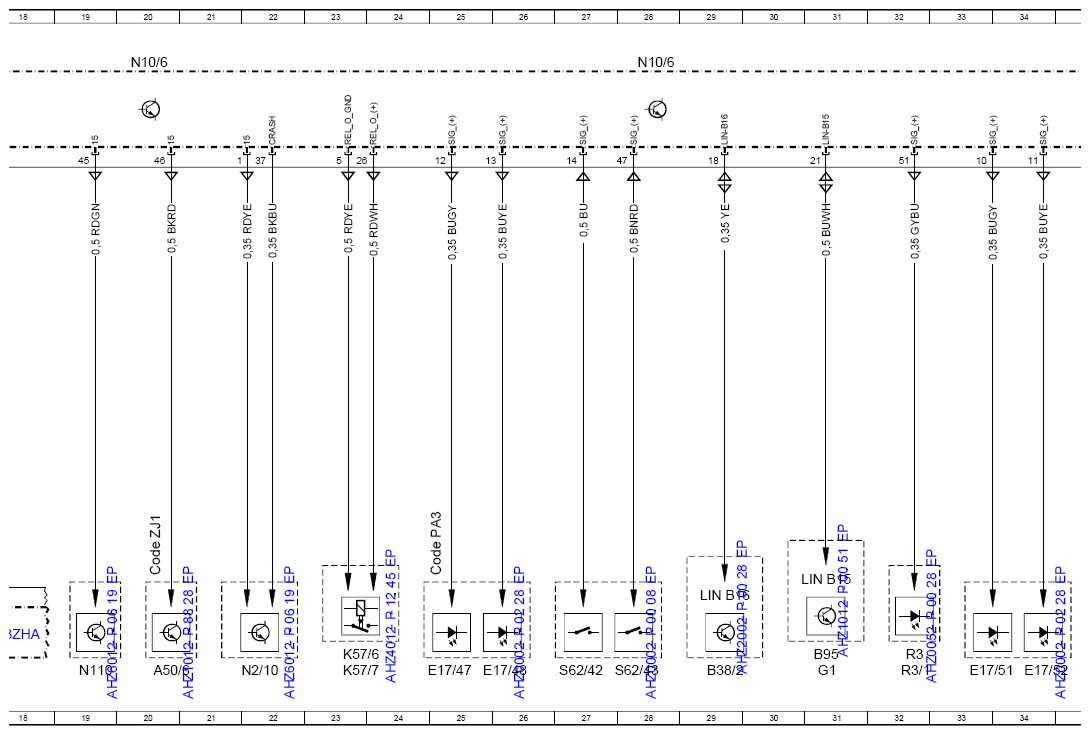

| N110 | Weight classification control unit | 19L |
| N2/10 | Supplemental restraint system control unit | 22L |

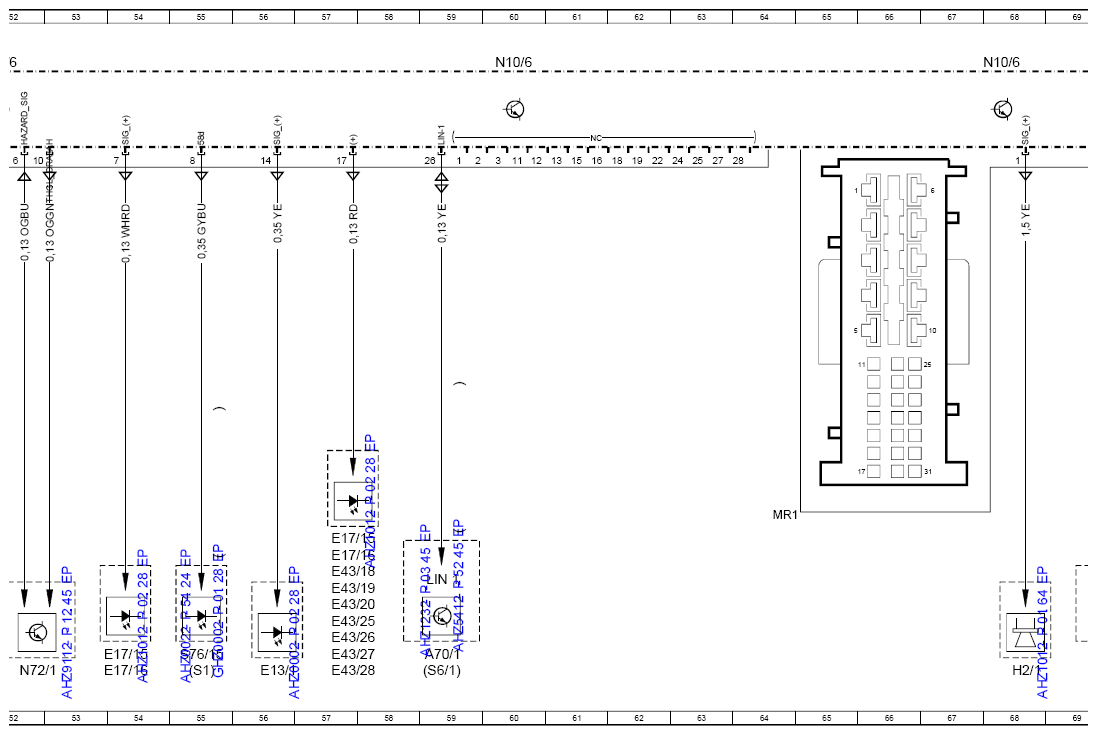

| N72/1 | Upper control panel control unit | 52L |
| R2/2 | Left spray nozzle heater | 70L |
| R2/3 | Right spray nozzle heater | 70L |
| R3 | Front cigarette lighter with ashtray illumination | 32L |
| R3/1 | Cigarette lighter with ashtray illumination, rear | 32L |

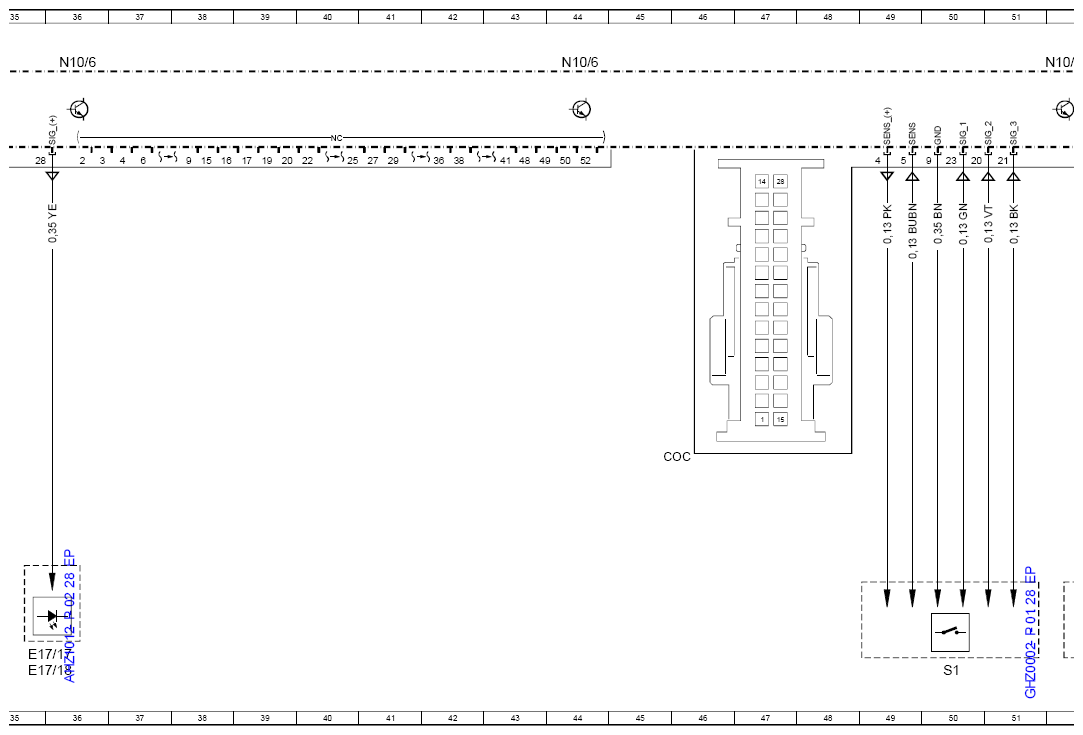

| S1 | Exterior lights switch | 50L |
| S1 | Exterior lights switch | 55L |
| S10/2 | Right front brake wear sensor | 91L |
| S11 | Brake fluid level switch | 72L |
| S41 | Coolant level switch | 90L |
| S42 | Windshield washer system washer fluid level switch | 73L |
| S6/1 | Driver-side instrument panel button group | 59L |
| S62/42 | Right engine hood contact switch | 27L |
| S62/43 | Left engine hood contact switch | 28L |
| S76/15 | Electric parking brake switch | 55L |
| W29/1 | Left A-pillar ground point | 4E |
| W29/1 | Left A-pillar ground point | 8E |
| X30/32 | Interior CAN (CAN B) potential distributor, left | 13L |
