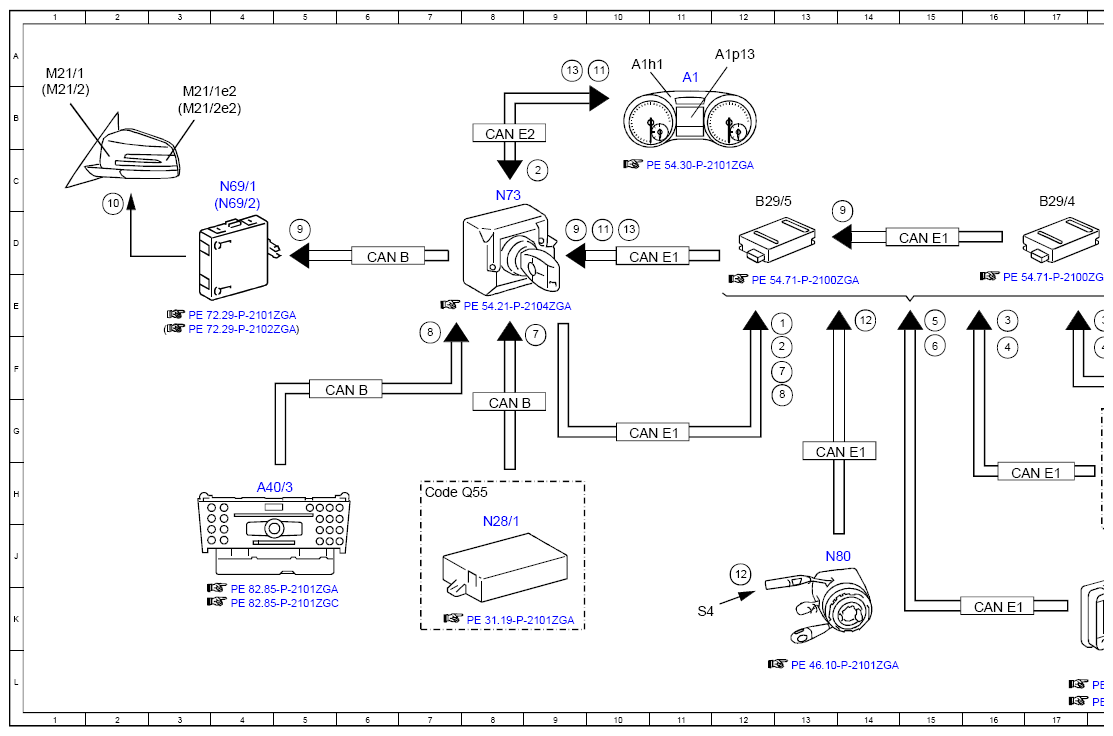

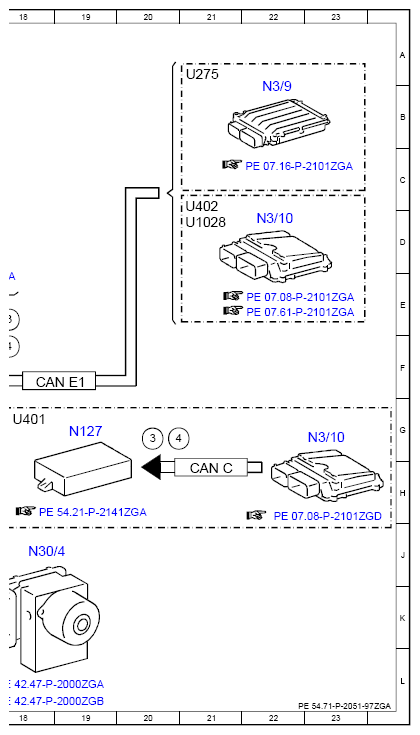

Electrical Function Schematic, Blind Spot Assistant - PE54.71-P-2051-97ZGA
Model 463 as of model year 2013 up to model year 2019 with code EA2 (Blind Spot Monitoring)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 13E |
| 10 | Blind Spot Assist readiness and warning indicator, actuation | 2C |
| 11 | Instrument cluster message, request | 10A |
| 11 | Instrument cluster message, request | 10D |
| 12 | Combination switch, status | 12J |
| 12 | Combination switch, status | 14E |
| 13 | Warning tone, request | 9A |
| 13 | Warning tone, request | 10D |
| 2 | Blind spot assist, status | 13E |
| 2 | Blind spot assist, status | 9C |
| 3 | Engine running, signal | 18E |
| 3 | Engine running, signal | 16E |
| 3 | Engine running, signal | 20G |
| 4 | Drivetrain operational, signal | 18E |
| 4 | Drivetrain operational, signal | 16E |
| 4 | Drivetrain operational, signal | 21G |
| 5 | Wheel rotation direction, signal | 15E |
| 6 | Wheel speed, signal | 15F |
| 7 | Trailer recognition, status | 13E |
| 7 | Trailer recognition, status | 9E |
| 8 | GPS, signal | 7E |
| 8 | GPS, signal | 13F |
| 9 | Blind Spot Assist readiness and warning indicator, request | 14D |
| 9 | Blind Spot Assist readiness and warning indicator, request | 9D |
| 9 | Blind Spot Assist readiness and warning indicator, request | 5D |
| A1 | Instrument cluster | 11A |
| A1h1 | Warning buzzer | 10A |
| A1p13 | Multifunction display | 12A |
| A40/3 | COMAND operating, display and control unit | 4H |
| B29/4 | Left rear bumper intelligent radar sensor | 17C |
| B29/5 | Right rear bumper intelligent radar sensor | 12C |
| CAN B | Interior CAN | 6D |
| CAN B | Interior CAN | 6F |
| CAN B | Interior CAN | 8G |
| CAN C | Drive train CAN | 21H |
| CAN E1 | Chassis CAN 1 | 10D |
| CAN E1 | Chassis CAN 1 | 10G |
| CAN E1 | Chassis CAN 1 | 15D |
| CAN E1 | Chassis CAN 1 | 18F |
| CAN E1 | Chassis CAN 1 | 16K |
| CAN E1 | Chassis CAN 1 | 13G |
| CAN E1 | Chassis CAN 1 | 17H |
| CAN E2 | Chassis CAN 2 | 8B |
| Code Q55 | Trailer hitch ball head, high | 7H |
| M21/1 | Left electrically adjustable and heated outside mirror | 1A |
| M21/1e2 | Left Blind Spot Assist readiness and warning indicator | 3B |
| M21/2 | Right electrically adjustable and heated outside mirror | 1B |
| M21/2e2 | Right Blind Spot Assist readiness and warning indicator | 3B |
| N127 | Drivetrain control unit | 19G |
| N28/1 | Trailer recognition control unit | 8J |
| N3/10 | ME-SFI [ME] control unit | 22D |
| N3/10 | ME-SFI [ME] control unit | 23G |
| N3/9 | CDI control unit | 22B |
| N30/4 | ESP control unit | 18J |
| N69/1 | Left front door control unit | 4C |
| N69/2 | Right front door control unit | 4C |
| N73 | EIS [EZS] control unit | 8C |
| N80 | Steering column module | 13J |
| S4 | Combination switch | 11K |
| U1028 | Valid for engine 157 | 21D |
| U275 | Valid for engine 642.8 | 21A |
| U401 | Valid for engine 176 | 18G |
| U402 | Valid for engine 273 | 21C |
