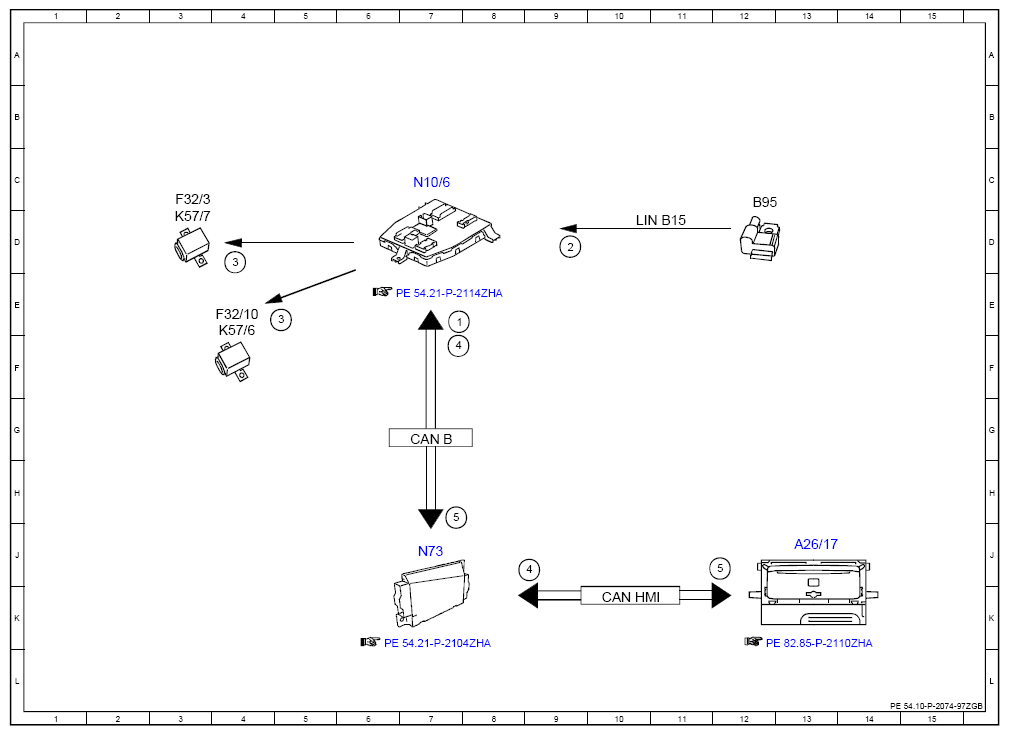

Electrical Function Schematic For No-Load Current Management - PE54.10-P-2074-97ZGB
Model 463 (except 463.342)
as of model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 7E |
| 2 | Battery sensor, signal | 9D |
| 3 | Battery disconnect switch relay, actuation | 4D |
| 3 | Battery disconnect switch relay, actuation | 5E |
| 4 | Rest mode, request | 8E |
| 4 | Rest mode, request | 9K |
| 5 | Rest mode, status | 7J |
| 5 | Rest mode, status | 12K |
| A26/17 | Head unit | 13J |
| B95 | Battery sensor | 12C |
| CAN B | Interior CAN | 7G |
| CAN HMI | User interface CAN | 10K |
| F32/10 | Starter battery prefuse box | 4E |
| F32/3 | Engine compartment prefuse box | 3C |
| K57/6 | Starter battery prefuse box battery disconnect switch relay | 4E |
| K57/7 | Engine compartment prefuse box battery disconnect switch relay | 3D |
| LIN B15 | Battery sensor LIN | 10D |
| N10/6 | Front SAM control unit | 7C |
| N73 | Electronic ignition switch control unit | 7J |
