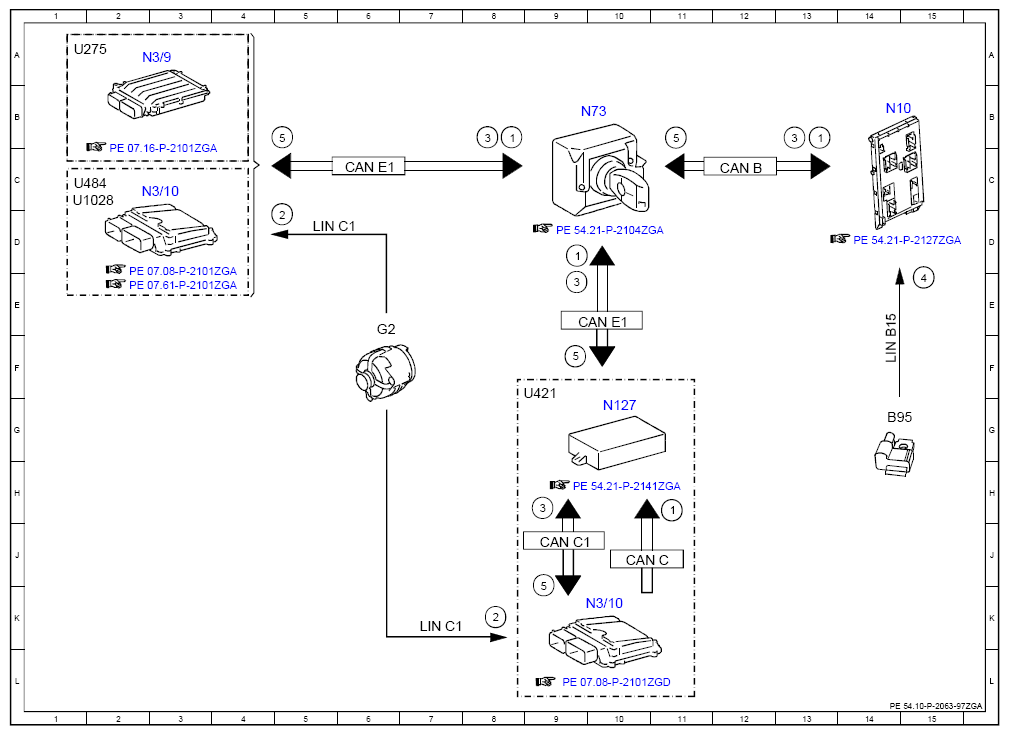

Electrical Function Schematic For Dynamic Idle Speed Increase - PE54.10-P-2063-97ZGA
Model 463 (except 463.342)
as of model year 2013 up to model year 2019
Model 463.342
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 8B |
| 1 | Engine running, signal | 13B |
| 1 | Engine running, signal | 9D |
| 1 | Engine running, signal | 11H |
| 2 | Alternator, signal | 5D |
| 2 | Alternator, signal | 5D |
| 3 | Alternator operating rate, signal | 8B |
| 3 | Alternator operating rate, signal | 13B |
| 3 | Alternator operating rate, signal | 9H |
| 3 | Alternator operating rate, signal | 9E |
| 4 | Battery sensor, signal | 15E |
| 5 | Idle speed increase, request | 5B |
| 5 | Idle speed increase, request | 11B |
| 5 | Idle speed increase, request | 9K |
| 5 | Idle speed increase, request | 9F |
| B95 | Battery sensor | 14G |
| CAN B | Interior CAN | 12C |
| CAN C | Drive train CAN | 10J |
| CAN C1 | Engine CAN | 9J |
| CAN E1 | Chassis CAN 1 | 6C |
| CAN E1 | Chassis CAN 1 | 10E |
| G2 | Alternator | 6E |
| LIN B15 | Battery sensor LIN | 14F |
| LIN C1 | Drive train LIN | 5D |
| LIN C1 | Drive train LIN | 7K |
| N10 | SAM control unit | 14B |
| N127 | Drivetrain control unit | 10G |
| N3/10 | ME-SFI [ME] control unit | 3C |
| N3/10 | ME-SFI [ME] control unit | 10K |
| N3/9 | CDI control unit | 3A |
| N73 | EIS [EZS] control unit | 9B |
| U1028 | Valid for engine 157 | 1C |
| U275 | Valid for engine 642.8 | 1A |
| U421 | Valid with engine 176 | 8F |
| U484 | Valid for M273 ME | 1C |
