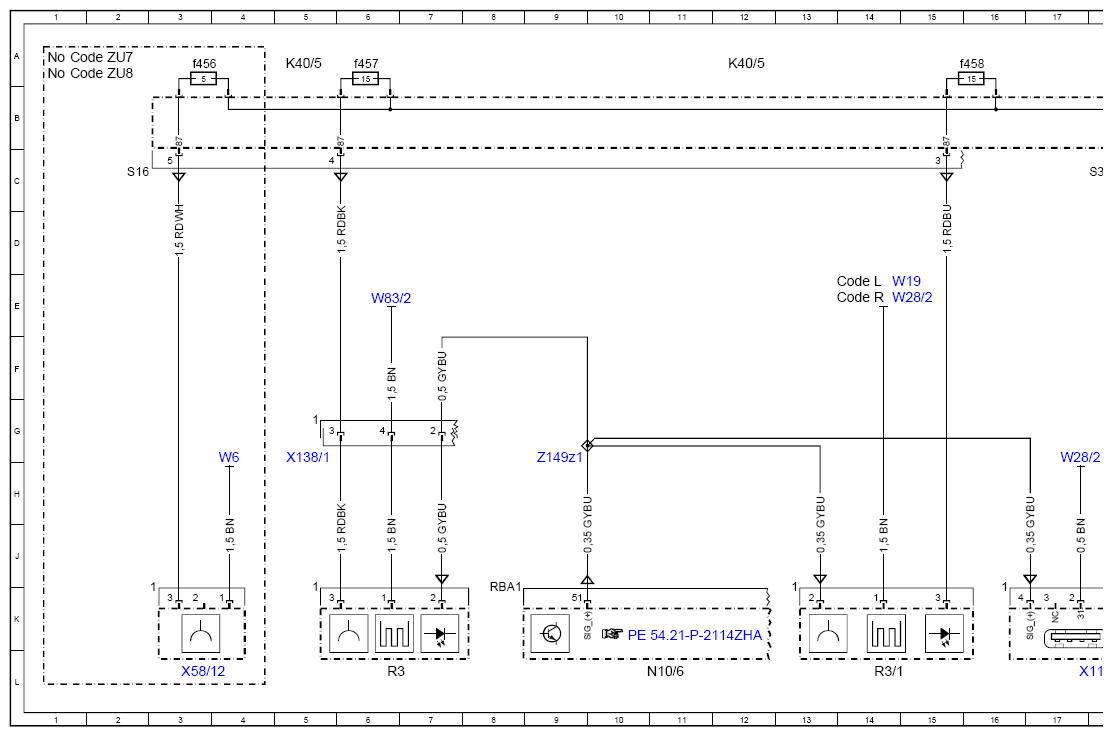

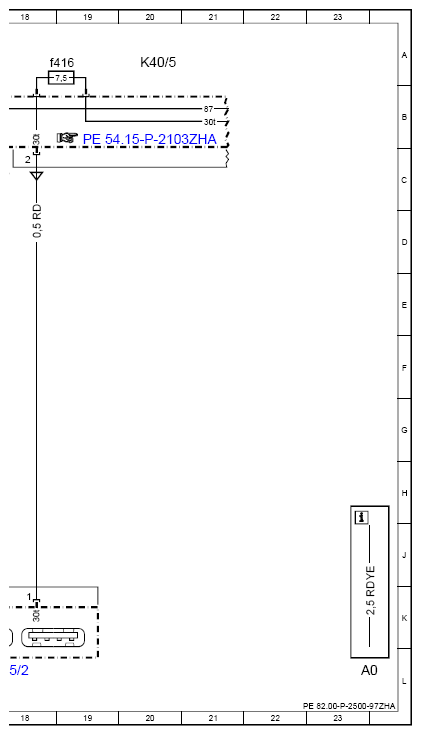

Wiring Diagram For Vehicle Interior Sockets - PE82.00-P-2500-97ZHA
Model 463 (except 463.342)
as of model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| Code L | LEFT-HAND DRIVE | 14E |
| Code R | RIGHT-HAND DRIVE | 14E |
| Code ZU7 | Canada national version | 1A |
| Code ZU8 | USA national version | 1A |
| K40/5 | Rear fuse and relay module | 5A |
| K40/5 | Rear fuse and relay module | 12A |
| K40/5 | Rear fuse and relay module | 20A |
| K40/5f416 | Fuse 416 | 19A |
| K40/5f456 | Fuse 456 | 3A |
| K40/5f457 | Fuse 457 | 6A |
| K40/5f458 | Fuse 458 | 16A |
| N10/6 | Front SAM control unit | 11L |
| R3 | Front cigarette lighter with ashtray illumination | 6L |
| R3/1 | Cigarette lighter with ashtray illumination, rear | 14L |
| W19 | Right front seat crossmember ground point | 14E |
| W28/2 | Right front seat crossmember ground point 2 | 17H |
| W28/2 | Right front seat crossmember ground point 2 | 14E |
| W6 | Left rear wheel well ground point | 4H |
| W83/2 | Lower right center tunnel ground point | 6E |
| X115/2 | Rear passenger compartment USB connector | 18L |
| X138/1 | Front center console electrical connector | 5H |
| X58/12 | Load compartment socket | 3L |
| Z149z1 | Voltage supply connector sleeve | 9G |
