Remove/Install Front Door Lining - AR72.10-P-1000XG

Model 463

as of model year 2019

Shown on left side of vehicle

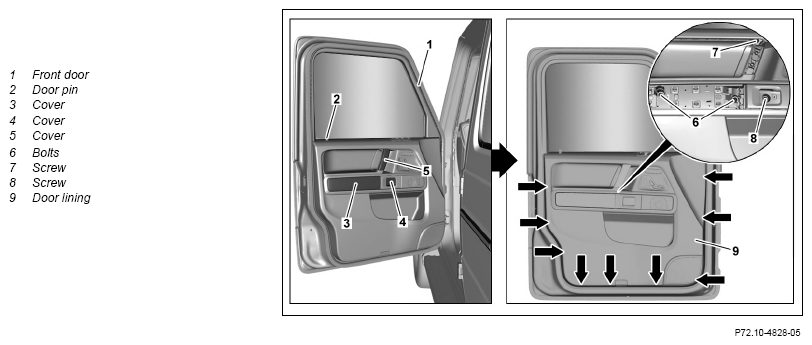

Fig 1: Front Door Lining Components Location - Model 463 As Of Model Year 2019 (Shown On Left Side Of Vehicle)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	On the front door (1), unclip the covers (3, 4, 5).	Long wedge	Fig 2
2	Remove screws (6, 7, 8).
3	Unclip door lining (9) at mounting clips (arrows) from front door (1).	Guide long wedge directly to each mounting clip (arrows). Otherwise, the retaining tabs of the mounting clips will break. Check the mounting clips on the door lining (9) for damage and replace if necessary. Long wedge	Fig 2
4	Separate door lining (9) from the front door (1) and guide the door pin (2) out of the door lining (9).	Separate door lining (9) from the front door (1) until the electrical connectors and the cable of the inside door opener are accessible.
5	Unhook cable from door trim.
6	Release and disconnect electrical connectors.
7	Remove door lining (9).
8	Install in reverse order.

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
