Remove/Install Lower B-Pillar Trim - AR68.30-P-4704XG

Model 463

as of model year 2019

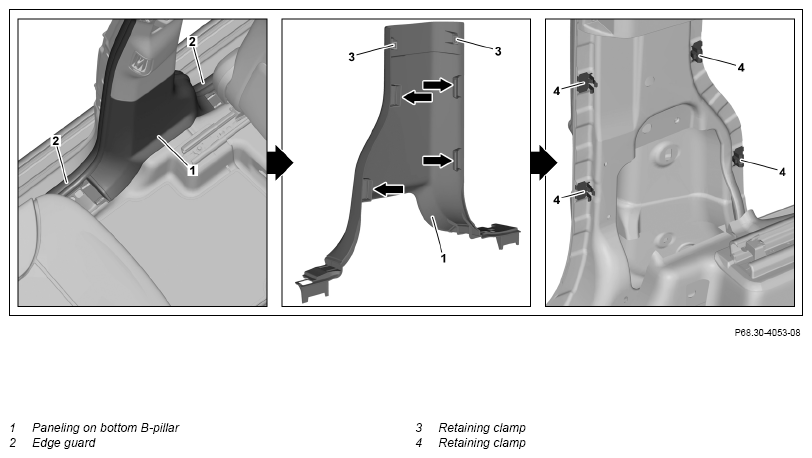

Fig 1: Lower B-Pillar Trim Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move front seat forward to end position.
2	Remove front door sill and rear door sill.		AR68.30-P-4100XG
3	Loosen edge guard (2) in the area of the trim on the bottom B-pillar (1).	Ensure that edge guard (2) is seated correctly.
4	Unclip trim on the bottom B-pillar (1) from the retaining clamps (3, 4) and remove.	Ensure retaining clamps (4) are seated correctly in the mounts (arrows) on the trim on the bottom B-pillar (1). If the retaining clamps (3, 4) are damaged, ↓ Install new retaining clamps (3, 4).
5	Install in reverse order.
