Remove/Install Load Compartment Floor - AR68.80-P-5800XG

Model 463

as of model year 2019

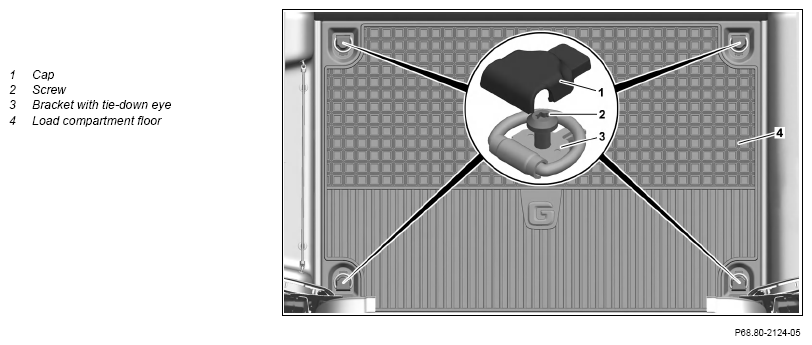

Fig 1: Load Compartment Floor Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open tailgate.
2	Remove floor covering.
3	Remove covers (1) of load securing.
4	Remove screws (2).	Bolt, cargo retainers/tie-down eye to body	*BA68.50-P-1001-03K
5	Remove brackets with tie-down eyes (3).
6	Remove load compartment floor (4).
7	Install in reverse order.

CARGO RETAINERS

Number	Designation		Model 463 up to model year 2019	Model 463 as of model year 2019
BA68.50-P-1001-03K	Bolt, cargo retainers/tie-down eye to body	Nm	24	24
