Remove/Install Door Sill Molding - AR68.30-P-4100GW

Model 463

as of model year 2013 up to model year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install

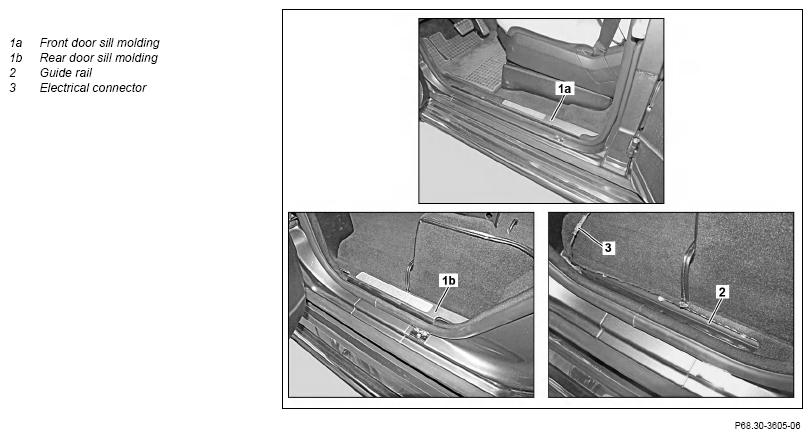

1.1	Lift door sills (1a, 1b) and unclip from guide rail (2)	Vehicles without illuminated door sill moldings Long wedge	Fig 1
1.2	Lift left front illuminated door sill molding (E17/47), right front illuminated door sill molding (E17/48), left rear illuminated door sill molding (E17/51), and right rear illuminated door sill molding (E17/52) and unclip from guide rail (2)	Vehicles with illuminated door sill molding Ensure that electric line is routed correctly.
	Long wedge		Fig 1
2	Disconnect electrical connector (3)
3	Install in the reverse order

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
