Remove/Install Center Console - AR68.20-P-2000XG

Model 463

as of model year 2019

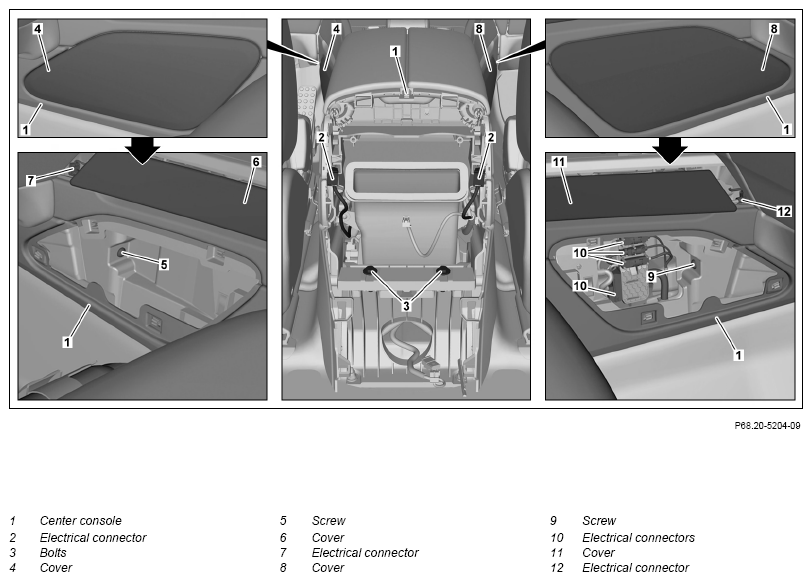

Fig 1: Center Console Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear cover at center console.		AR68.20-P-2358XG
2	Remove screws (3).
3	Disconnect electrical connectors (2).
4	Unclip and remove cover (4).
5	Remove screw (5).
6	Unclip cover (6) until electrical connector (7) can be accessed.
7	Disconnect the electrical connector (7).
8	Unclip and remove cover (8).
9	Remove screw (9).
10	Unclip cover (11) until electrical connector (12) can be accessed.
11	Disconnect electrical connector (12).
12	Disconnect electrical connectors (10).
13	Move out center console (1) towards rear and remove.	Accordingly cover vehicle interior. Otherwise damage will occur.
14	Install in reverse order.
