Remove/Install Center Console - AR68.20-P-2000GW
Model 463 (except 463.242)
as of model year 2013 up to model year 2019
Model 463.242
up to model year 2019
MODIFICATION NOTES
| 26.09.2014 | Repair method adjusted | Operation steps 1 to 23 |

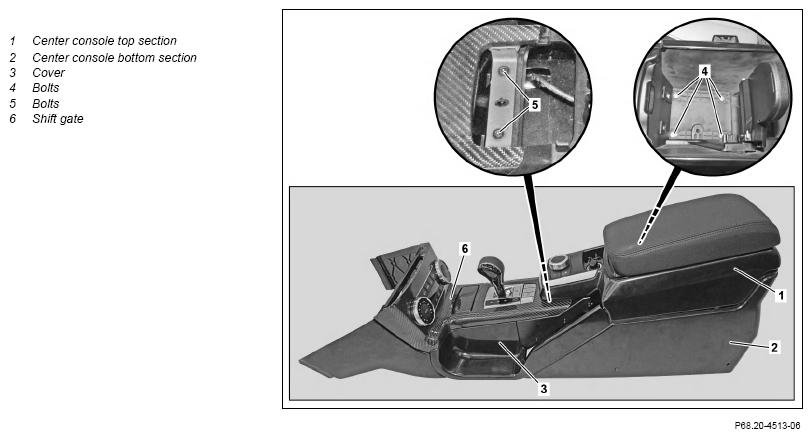

Fig 1: Center Console Components Location - Model 463 (Except 463.242) As Of Model Year 2013 Up To Model Year 2019
| Notes on battery | AH54.10-P-0001-01A | ||
| Remove/install | |||
| 1 | Move front seats to front-most position | ||
| 2 | Unscrew bolts (10) on right and left | ||
| 3 | Move front seats to center position | ||
| 4 | Disconnect ground line from battery | Model 463 (except 463.234/236/241/242/248) as of model year 2013 up to model year 2019 | AR54.10-P-0003GW |
| 5 | Remove center dashboard cover | Model 463 (except 463.242) as of model year 2013 up to model year 2019 Model 463.242 as of model year 2013 up to model year 2019 |
AR68.10-P-3430GW |
| 6 | Remove cover in stowage compartment on armrest and unscrew bolts (4) | ||
| 7 | Unclip center console top section (1) upward and lay down to side | ||
| 8 | Disconnect electrical connectors from center console | ||
| 9 | Disconnect electrical line from 12 V socket on center console top section (1) | ||

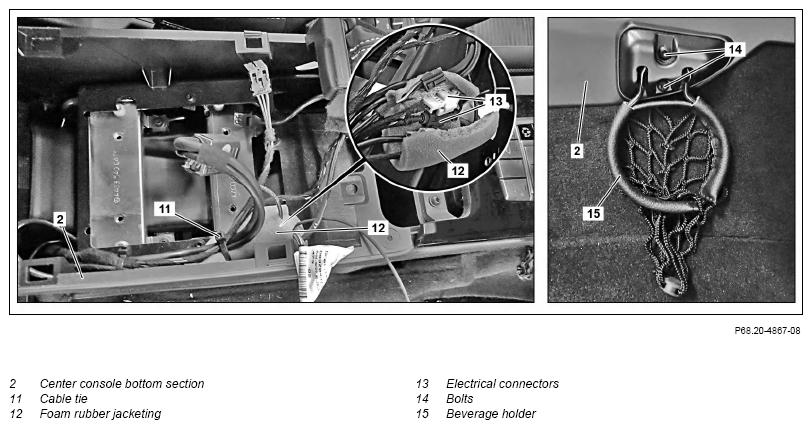

| 10 | Remove cable ties (11) | ||
| 11 | Open foam jacketing (12) on electrical lines | Install new foam rubber jacketing (12). | |
| 12 | Disconnect electrical connectors (13) from foam jacketing (12) | ||
| 13 | Unscrew bolts (5) and unclip shift gate (6) upward at an angle | Fig 2 | |
| 14 | Disconnect electrical connectors from shift gate (6) | ||
| 15 | Unclip cover (3) from parking brake lever | Model 463 (except 463.234) as of model year 2013 up to model year 2019 Model 463.234 as of model year 2013 up to model year 2019 with code ZQ0 (G 500 4x42 ) |
AR68.20-P-2311-01GW |

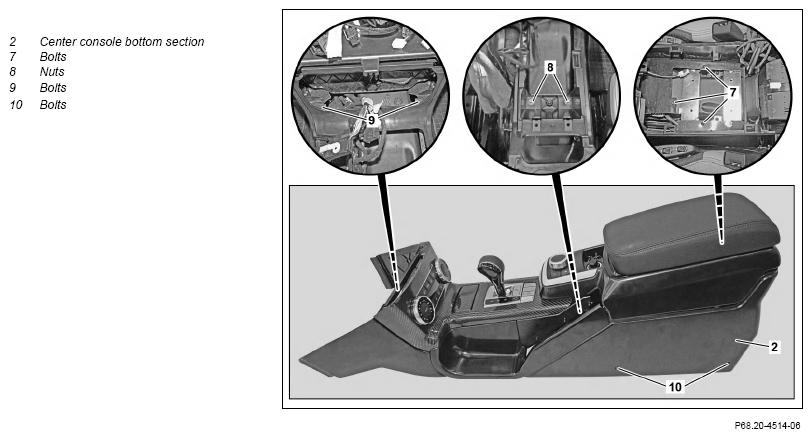

| Fig 2 | |||
| 16 | Remove screws (7) | ||
| 17 | Remove nuts (8) | ||
| 18 | Remove screw/bolts (9) | ||
| 19 | Unscrew bolts (14) and remove beverage holder (15) in passenger footwell | ||
| 20 | Lift center console bottom section (2) until electrical connector on 12-V socket is accessible | ||
| 21 | Disconnect electrical connector from 12-V socket on center console bottom section (2) | ||
| 22 | Remove center console bottom section (2) | ||
| 23 | Install in the reverse order |
