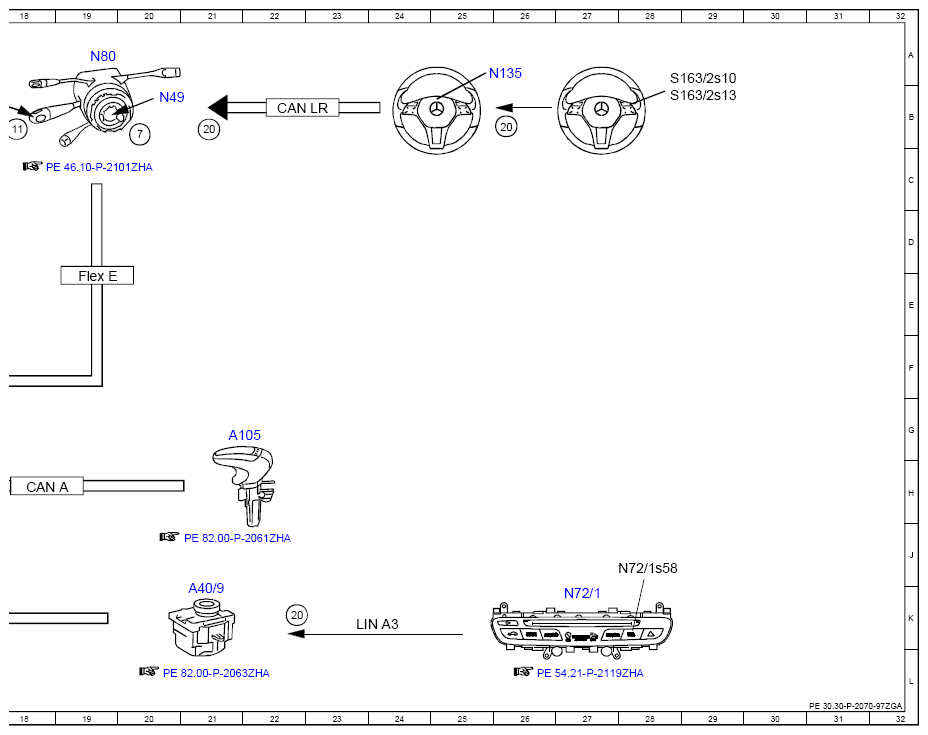

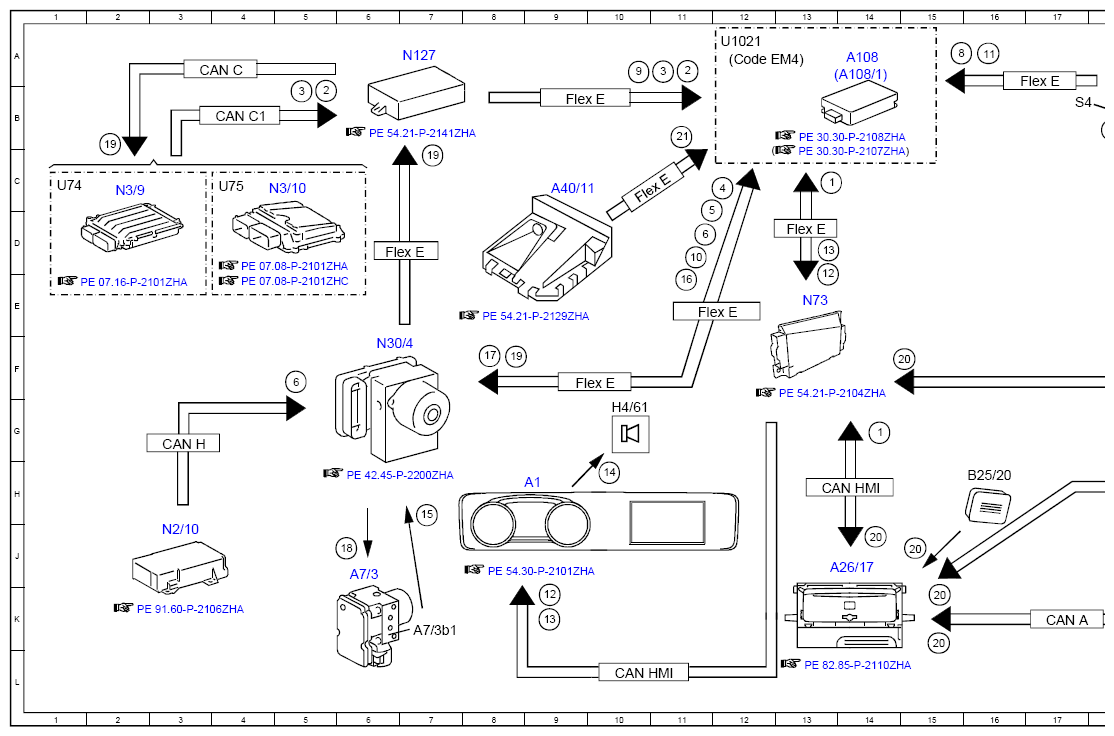

Electrical Function Schematic For Active Brake Assist - PE30.30-P-2070-97ZGA
Model 463 (Except 463.342) As Of Model Year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Active Brake Assist, status | 13C |
| 1 | Active Brake Assist, status | 14G |
| 10 | Brake pedal, status | 11D |
| 11 | Combination switch, status | 18B |
| 11 | Combination switch, status | 16A |
| 12 | Warning lamp, request | 9K |
| 12 | Warning lamp, request | 13E |
| 13 | Warning tone, request | 9K |
| 13 | Warning tone, request | 13D |
| 14 | Speaker, actuation | 10H |
| 15 | Brake pressure, signal | 7H |
| 16 | Braking torque, signal | 11E |
| 17 | Service brake braking torque, request | 8F |
| 18 | Traction system hydraulic unit, actuation | 6J |
| 19 | Engine torque, reduce request | 2B |
| 19 | Engine torque, reduce request | 8F |
| 19 | Engine torque, reduce request | 7C |
| 2 | Engine running, signal | 5B |
| 2 | Engine running, signal | 11A |
| 20 | Operation, signal | 15F |
| 20 | Operation, signal | 15J |
| 20 | Operation, signal | 15K |
| 20 | Operation, signal | 21B |
| 20 | Operation, signal | 26B |
| 20 | Operation, signal | 22K |
| 20 | Operation, signal | 14J |
| 21 | Data for object recognition, signal | 11B |
| 3 | Drivetrain operational, signal | 5B |
| 3 | Drivetrain operational, signal | 11A |
| 4 | Wheel speed, signal | 12C |
| 5 | Wheel rotation direction, signal | 11D |
| 6 | Speed, turn rate and lateral acceleration, signal | 5F |
| 6 | Speed, turn rate and lateral acceleration, signal | 11D |
| 7 | Steering wheel angle sensor, signal | 20B |
| 8 | Steering wheel angle, signal | 15A |
| 9 | Accelerator pedal position, signal | 10A |
| A1 | Instrument cluster | 9H |
| A105 | Touchpad | 21G |
| A108 | Active Brake Assist controller unit | 14A |
| A108/1 | DISTRONIC Distance-Pilot controller unit | 14A |
| A26/17 | Head unit | 14J |
| A40/11 | Mono multifunction camera | 9C |
| A40/9 | Audio/COMAND control panel | 21K |
| A7/3 | Traction system hydraulic unit | 6J |
| A7/3b1 | Front axle brake pressure sensor | 7K |
| B25/20 | Driver hands-free system microphone | 16H |
| CAN A | Telematics CAN | 17K |
| CAN A | Telematics CAN | 18H |
| CAN C | Engine CAN | 4A |
| CAN C1 | Engine CAN | 4B |
| CAN H | Vehicle dynamics CAN | 3G |
| CAN HMI | User interface CAN | 10L |
| CAN HMI | User interface CAN | 14H |
| CAN LR | Steering wheel CAN | 22B |
| Code EM4 | Driving Assistance Plus Package | 12A |
| Flex E | Chassis FlexRay | 6D |
| Flex E | Chassis FlexRay | 9B |
| Flex E | Chassis FlexRay | 9F |
| Flex E | Chassis FlexRay | 13D |
| Flex E | Chassis FlexRay | 19E |
| Flex E | Chassis FlexRay | 10C |
| Flex E | Chassis FlexRay | 11E |
| Flex E | Chassis FlexRay | 17B |
| H4/61 | Instrument cluster speaker | 10G |
| LIN A3 | LCP LIN | 23K |
| N127 | Drivetrain control unit | 7A |
| N135 | Steering wheel electronics | 26A |
| N2/10 | Supplemental restraint system control unit | 3J |
| N3/10 | ME-SFI [ME] control unit | 5C |
| N3/9 | CDI control unit | 2C |
| N30/4 | Electronic Stability Program control unit | 6F |
| N49 | Steering wheel angle sensor | 20B |
| N72/1 | Upper control panel control unit | 27K |
| N72/1s58 | Vehicle button | 27J |
| N73 | Electronic ignition switch control unit | 13E |
| N80 | Steering column module control unit | 19A |
| S163/2s10 | Head unit finger navigation pad | 29A |
| S163/2s13 | "Back" button | 29B |
| S4 | Combination switch | 17B |
| U1021 | Valid except code EM4 (Driver assistance package Plus) | 12A |
| U74 | Valid for diesel engines | IC |
| U75 | Val id for gasoline engines | 4C |
