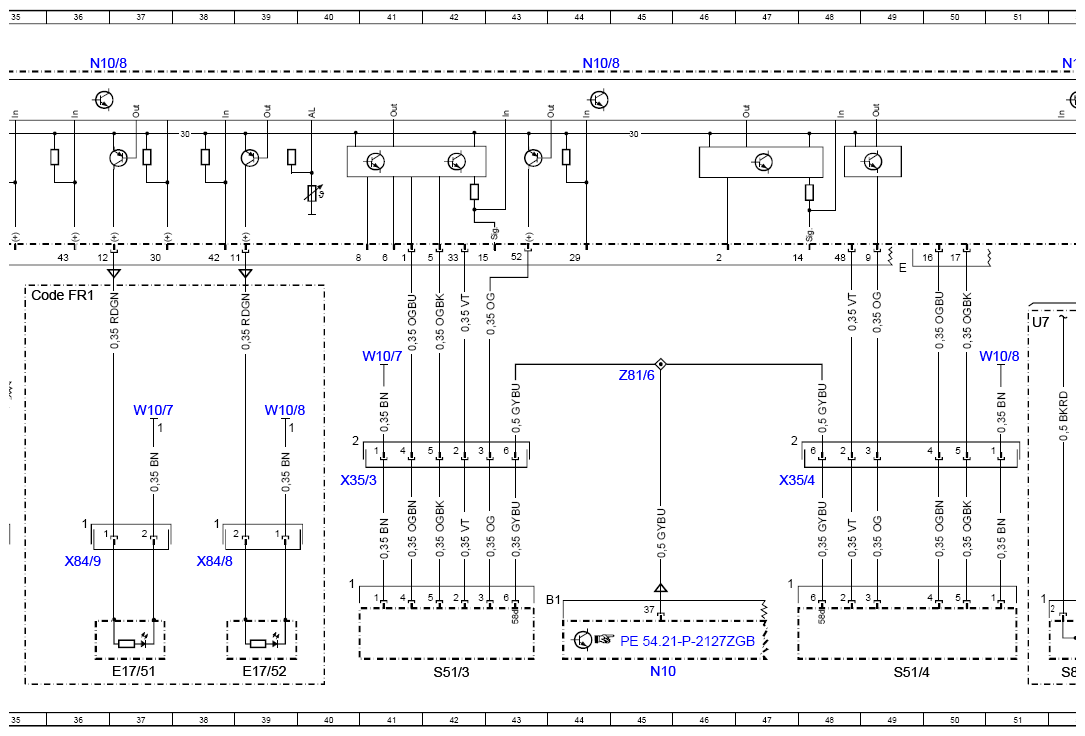

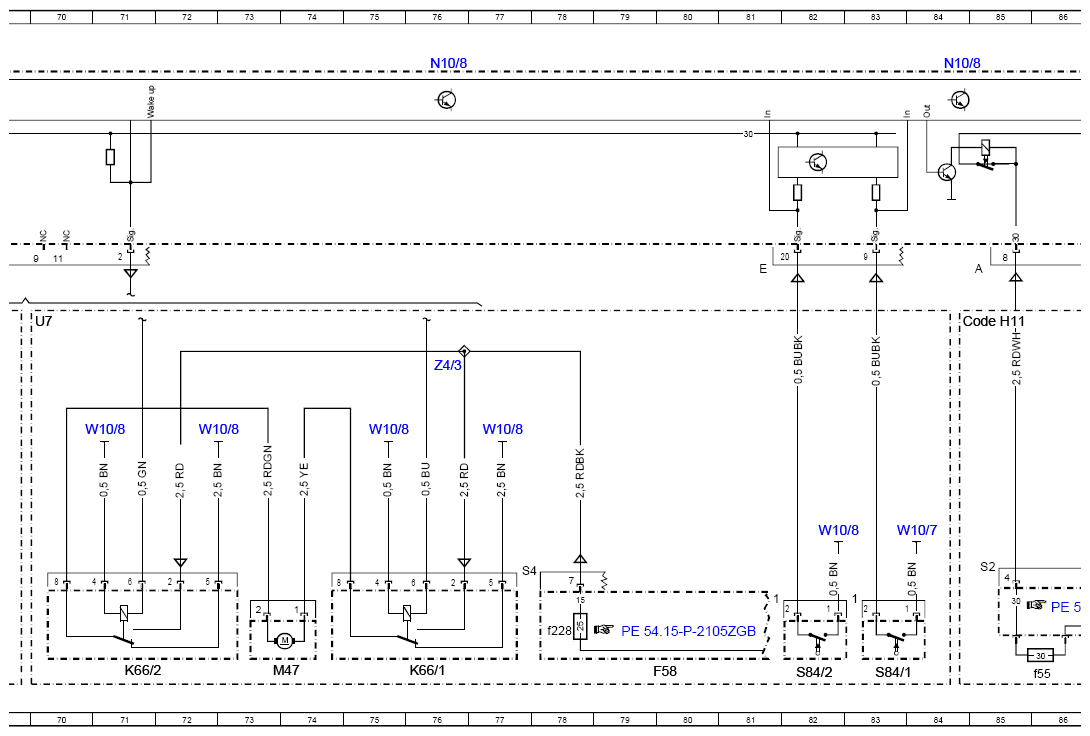

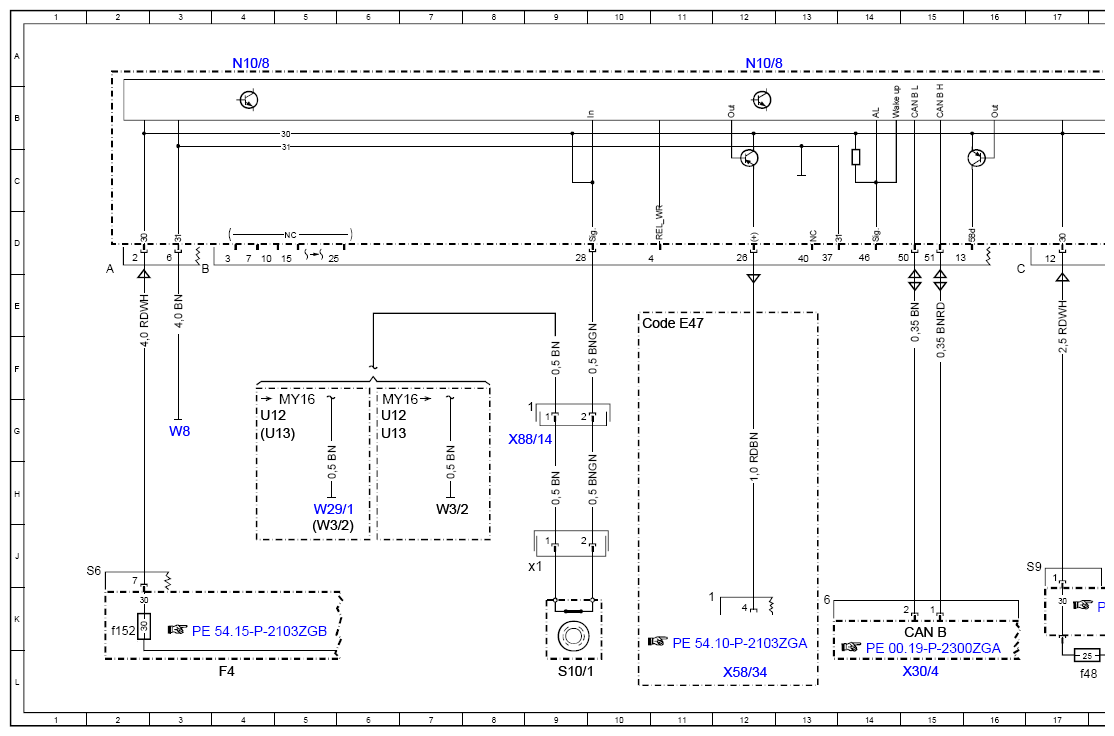

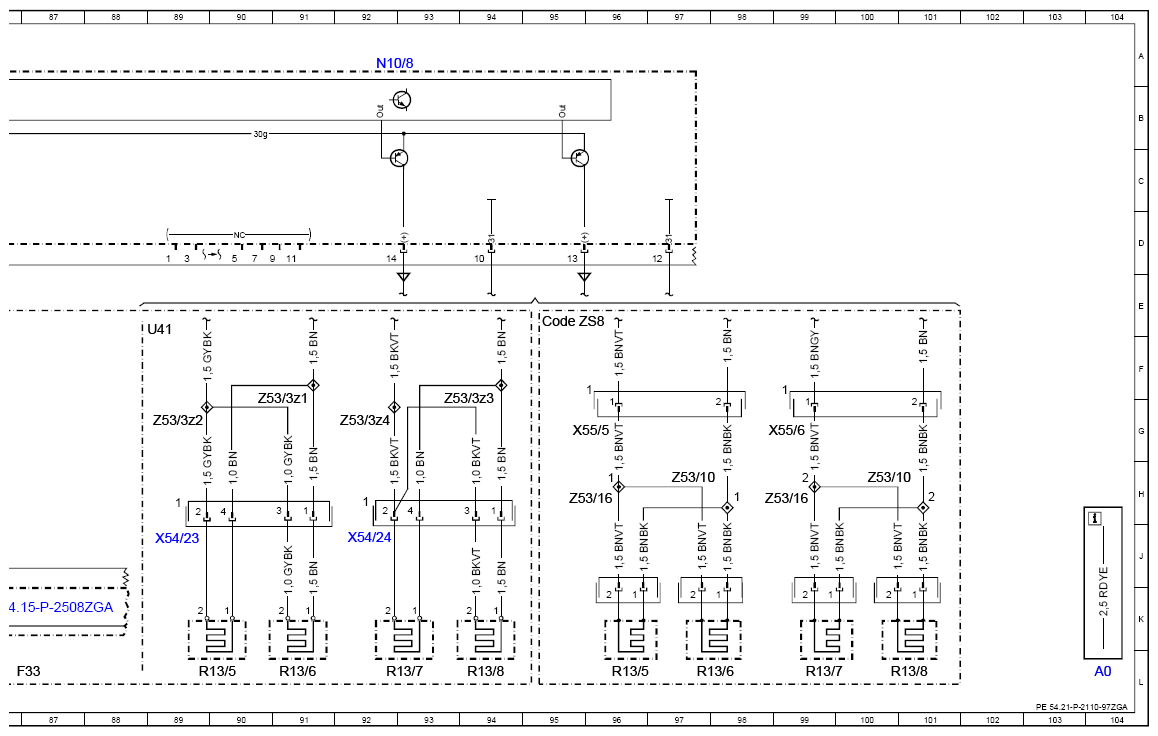

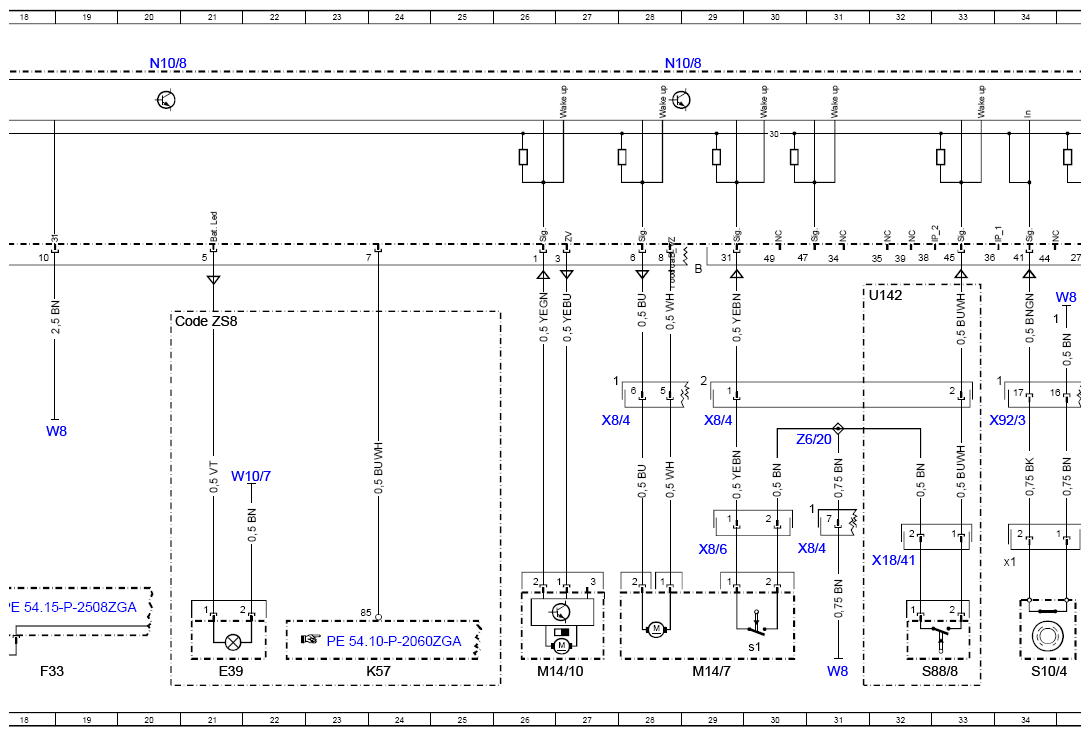

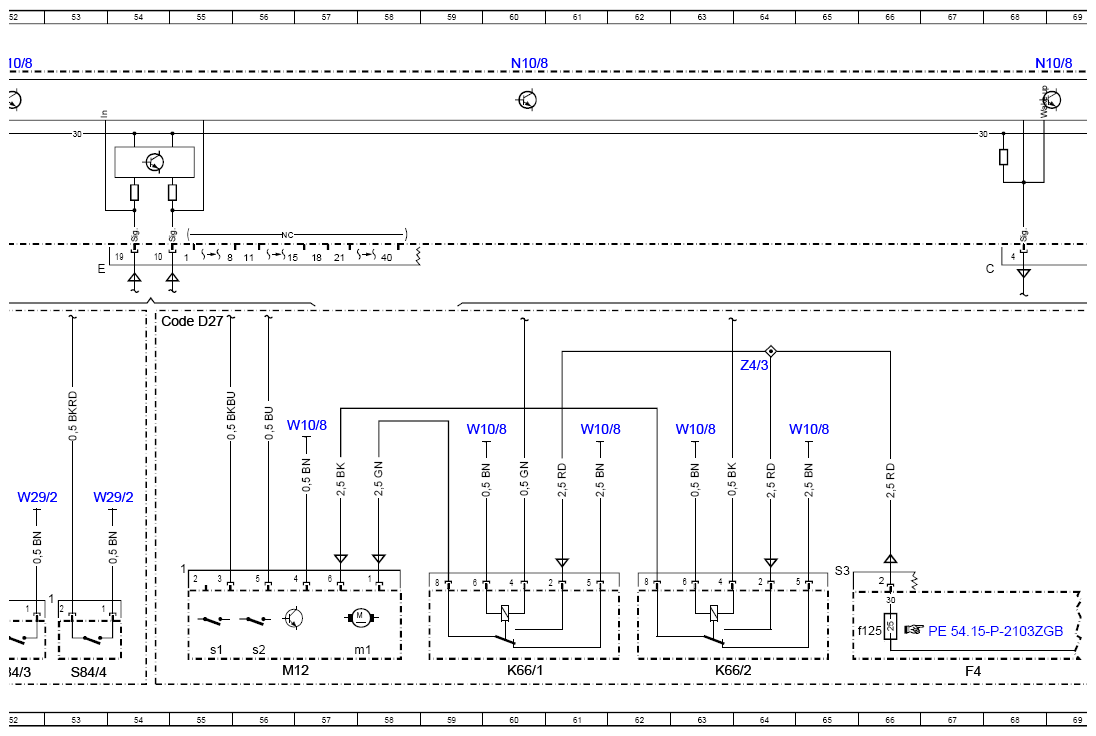

Wiring Diagram Rear Control Unit - PE54.21-P-2110-97ZGA
Model 463 as of model year 2013 up to model year 2019
/YoM 12 model refinement package up to YoM 18 model refinement package, control unit N10/8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 104L |
| CAN B | Interior CAN | 15K |
| Code D27 | Power tilting/sliding roof | 54E |
| Code E47 | Socket, 115V | 10E |
| Code FR1 | Ambiance illumination | 35E |
| Code H11 | Rear bench seat heater | 84E |
| Code ZS8 | Protection class VR7/glass area VR9 | 95E |
| Code ZS8 | Protection class VR7/glass area VR9 | 20E |
| E17/51 | Left rear illuminated door sill molding | 37L |
| E17/52 | Right rear illuminated door sill molding | 39L |
| E39 | Additional battery charge indicator lamp | 21L |
| F33 | Battery compartment prefuse box | 87L |
| F33 | Battery compartment prefuse box | 18L |
| F33f48 | Fuse 48 | 17L |
| F33f55 | Fuse 55 | 86L |
| F4 | Rear fuse and relay module | 4L |
| F4 | Rear fuse and relay module | 67L |
| F4f125 | Fuse 125 | 66K |
| F4f152 | Fuse 152 | 2K |
| F58 | Front passenger footwell fuse and relay module | 80L |
| F58f228 | Fuse 228 | 78K |
| K57 | Battery cutoff relay | 24L |
| K66/1 | Roof system "Open" relay | 76L |
| K66/1 | Roof system "Open" relay | 60L |
| K66/2 | Roof system "Close" relay | 71L |
| K66/2 | Roof system "Close" relay | 63L |
| M12 | Roof system drive unit | 56L |
| M12m1 | Roof motor | 58L |
| M12s1 | Roof system "Forward/back" limit switch | 55L |
| M12s2 | Roof system "Raise/lower" limit switch | 56L |
| M14/10 | Tank cap central locking motor | 26L |
| M14/7 | Rear-end door central locking motor | 29L |
| M14/7s1 | Rear-end door rotary tumbler switch | 30L |
| M47 | Electric soft top motor | 73L |
| N10 | SAM control unit | 45L |
| N10/8 | Rear control unit | 4A |
| N10/8 | Rear control unit | 12A |
| N10/8 | Rear control unit | 28A |
| N10/8 | Rear control unit | 36A |
| N10/8 | Rear control unit | 44A |
| N10/8 | Rear control unit | 68A |
| N10/8 | Rear control unit | 76A |
| N10/8 | Rear control unit | 92A |
| N10/8 | Rear control unit | 20A |
| N10/8 | Rear control unit | 52A |
| N10/8 | Rear control unit | 60A |
| N10/8 | Rear control unit | 84A |
| R13/5 | Left rear seat sitting surface heated cushion | 89L |
| R13/5 | Left rear seat sitting surface heated cushion | 96L |
| R13/6 | Left rear backrest heated cushion | 91L |
| R13/6 | Left rear backrest heated cushion | 97L |
| R13/7 | Right rear seat sitting surface heated cushion | 92L |
| R13/7 | Right rear seat sitting surface heated cushion | 99L |
| R13/8 | Right rear backrest heater pad | 94L |
| R13/8 | Right rear backrest heater pad | 101L |
| S10/1 | Left front brake wear sensor | 9L |
| S10/1x1 | Left front brake wear sensor electrical connector | 9J |
| S10/4 | Right rear brake wear sensor | 34L |
| S10/4x1 | Right rear brake wear sensor electrical connector | 34J |
| S51/3 | Left rear seat heaters button | 42L |
| S51/4 | Right rear seat heaters button | 49L |
| S84/1 | Left rear "soft top locked" switch | 83L |
| S84/2 | Right rear "soft top locked" switch | 82L |
| S84/3 | Left front "soft top unlocked" switch | 52L |
| S84/4 | Right front "soft top unlocked" switch | 53L |
| S88/8 | Rear-end door external operation switch | 32L |
| U12 | Valid for left-hand drive vehicles | 4G |
| U12 | Valid for left-hand drive vehicles | 6G |
| U13 | Valid for right-hand drive vehicles | 4G |
| U13 | Valid for right-hand drive vehicles | 6G |
| U142 | Not valid for convertible | 31E |
| U41 | Not valid for code ZS8 Protection class VR7/glass area VR9 | 88E |
| U7 | valid for convertibles | 70E |
| U7 | valid for convertibles | 51E |
| W10/7 | Left battery recess ground point | 37G |
| W10/7 | Left battery recess ground point | 84J |
| W10/7 | Left battery recess ground point | 41F |
| W10/7 | Left battery recess ground point | 21H |
| W10/8 | Right battery recess ground point | 39G |
| W10/8 | Right battery recess ground point | 75G |
| W10/8 | Right battery recess ground point | 71G |
| W10/8 | Right battery recess ground point | 77G |
| W10/8 | Right battery recess ground point | 72G |
| W10/8 | Right battery recess ground point | 82J |
| W10/8 | Right battery recess ground point | 59G |
| W10/8 | Right battery recess ground point | 63G |
| W10/8 | Right battery recess ground point | 61G |
| W10/8 | Right battery recess ground point | 65G |
| W10/8 | Right battery recess ground point | 57G |
| W10/8 | Right battery recess ground point | 51F |
| W29/1 | A-pillar ground connection, left | 5H |
| W29/2 | Right A-pillar ground connection | 52H |
| W29/2 | Right A-pillar ground connection | 53H |
| W3/2 | Left front wheel arch ground point | 7H |
| W3/2 | Left front wheel arch ground point | 5J |
| W8 | Liftgate ground point | 3G |
| W8 | Liftgate ground point | 35E |
| W8 | Liftgate ground point | 31L |
| W8 | Liftgate ground point | 18G |
| X18/41 | Load compartment switch electrical connector | 32J |
| X30/4 | Interior CAN 1 (CAN B) potential distributor electrical connector | 15L |
| X35/3 | Left rear door electrical connector | 40H |
| X35/4 | Right rear door electrical connector | 47H |
| X54/23 | Left rear seat heater electrical connector | 89J |
| X54/24 | Right rear seat heater electrical connector | 92J |
| X55/5 | Left rear seat adjustment connector block | 96G |
| X55/6 | Right rear seat adjustment connector block | 99G |
| X58/34 | 115 V socket | 12L |
| X8/4 | Tailgate electrical connector | 27G |
| X8/4 | Tailgate electrical connector | 29G |
| X8/4 | Tailgate electrical connector | 31J |
| X8/6 | Electrical connection, contact switch for rear door and rear-end door | 29J |
| X84/8 | Right rear door exit lamp electrical connector | 38J |
| X84/9 | Left rear door exit lamp electrical connector | 36J |
| X88/14 | Left front brake wear indicator sensor electrical connector | 9G |
| X92/3 | Vehicle frame electrical connector (22-pin) | 34G |
| Z4/3 | Terminal 30 connector sleeve | 76F |
| Z4/3 | Terminal 30 connector sleeve | 64F |
| Z53/10 | Seat heater ground line connector sleeve | 100H |
| Z53/10 | Seat heater ground line connector sleeve | 97H |
| Z53/16 | Seat heater signal line connector sleeve | 99H |
| Z53/16 | Seat heater signal line connector sleeve | 96H |
| Z53/3z1 | Left rear seat (2nd seat row) seat heater ground line connector sleeve | 91G |
| Z53/3z2 | Left rear seat heater power supply connector sleeve | 89G |
| Z53/3z3 | Right rear seat (2nd seat row) seat heater ground line connector sleeve | 94G |
| Z53/3z4 | Right rear seat heater power supply connector sleeve | 92G |
| Z6/20 | Liftgate ground connector sleeve | 31G |
| Z81/6 | Circuit 58d connector sleeve | 45F |
