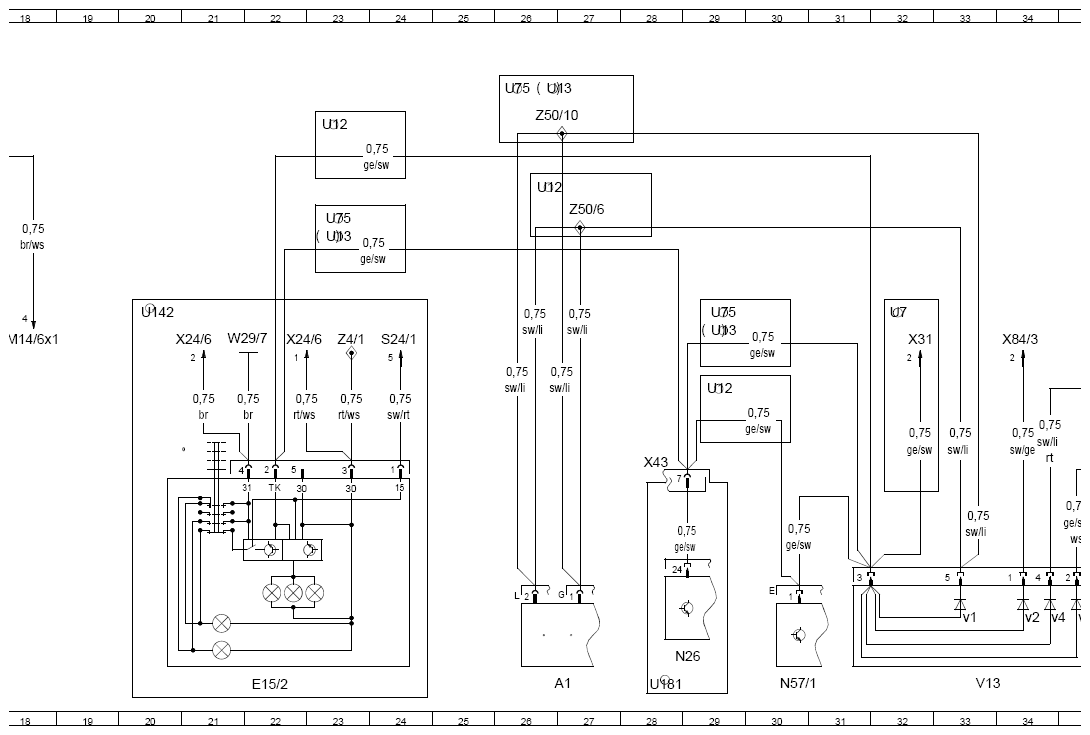

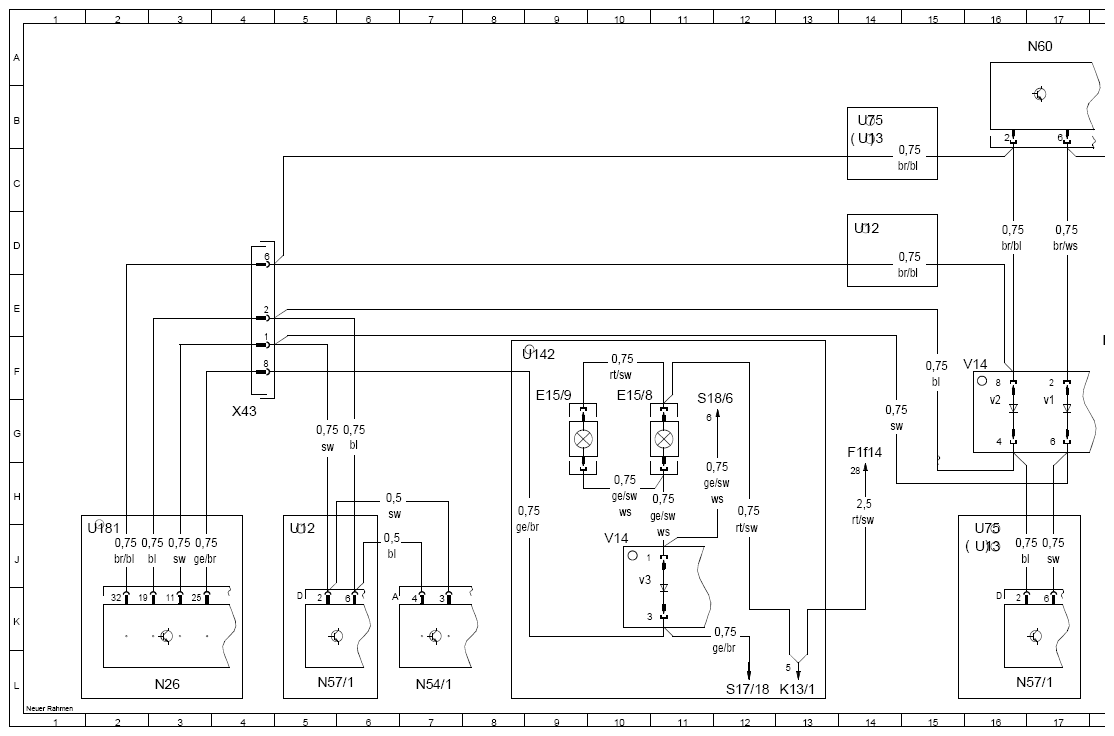

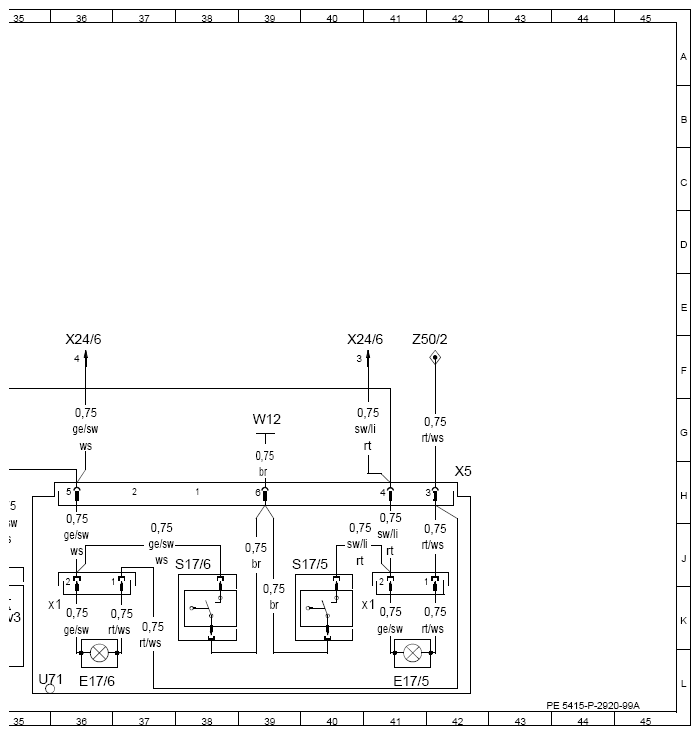

Wiring Diagram For Diode Modules (V13 And V14) - PE54.15-P-2920-99A
MODEL 463 as of 1.6.99 up to 31.5.12
| Code: | Designation: | Position: |
|---|---|---|
| A1 | Instrument cluster | 27L |
| E15/2 | Front dome lamp with shut-off delay and front reading lamp | 22L |
| E15/8 | Left rear dome lamp | 10F |
| E15/9 | Right rear dome lamp | 9F |
| E17/5 | Left rear door entrance/exit lamp | 41L |
| E17/5x1 | Left rear entrance/exit lamp connector | 41K |
| E17/6 | Right rear door entrance/exit lamp | 36L |
| E17/6x1 | Right rear entrance/exit lamp connector | 36K |
| F1f14 | Fuse 14 | 14G |
| K13/1 | Heated rear window relay | 13L |
| M14/6x1 | Left front door CL [ZV] motor connector | 18F |
| N26 | ATA [EDW] control unit | 29L |
| N26 | ATA [EDW] control unit | 3L |
| N54/1 | Drive authorization system infrared control unit | 7L |
| N57/1 | Convenience feature control unit | 30L |
| N57/1 | Convenience feature control unit | 5L |
| N57/1 | Convenience feature control unit | 17L |
| N60 | CL [ZV] control unit | 17A |
| S17/18 | Tailgate contact switch | 12L |
| S17/5 | Left rear door contact switch | 40J |
| S17/6 | Right rear door contact switch | 38J |
| S18/6 | Rear interior lamp switch | 12F |
| S24/1 | Warm/cool air switch (heating systems) | 24E |
| U12 | Valid for left-hand drive vehicles | 14D |
| U12 | Valid for left-hand drive vehicles | 29F |
| U12 | Valid for left-hand drive vehicles | 23B |
| U12 | Valid for left-hand drive vehicles | 5J |
| U12 | Valid for left-hand drive vehicles | 26C |
| U13 | Valid for right-hand drive vehicles | 16J |
| U13 | Valid for right-hand drive vehicles | 14B |
| U13 | Valid for right-hand drive vehicles | 29E |
| U13 | Valid for right-hand drive vehicles | 23D |
| U13 | Valid for right-hand drive vehicles | 27B |
| U142 | Not valid for convertible | 9F |
| U142 | Not valid for convertible | 20D |
| U181 | Valid for ATA [EDW] | 28L |
| U181 | Valid for ATA [EDW] | 2J |
| U7 | Valid for convertibles | 32D |
| U71 | Valid for five-door model | 36L |
| U75 | Valid for gasoline engines | 16J |
| U75 | Valid for gasoline engines | 14B |
| U75 | Valid for gasoline engines | 29E |
| U75 | Valid for gasoline engines | 23C |
| U75 | Valid for gasoline engines | 26B |
| V13 | Interior lights diode module (door contact) | 33L |
| V13v1 | Left front door entrance/exit lamp diode 1 | 33K |
| V13v2 | Right front door entrance/exit lamp diode 2 | 34K |
| V13v3 | Right rear door entrance/exit lamp diode 3 | 35K |
| V13v4 | Left rear door entrance/exit lamp diode 4 | 35K |
| V14 | IRCL [IFZ] and rear interior lights diode module | 10H |
| V14 | IRCL [IFZ] and rear interior lights diode module | 16F |
| V14v1 | IRCL [IFZ] open diode 1 | 17F |
| V14v2 | IRCL [IFZ] close diode 2 | 16F |
| V14v3 | Rear interior lamps diode 3 | 10J |
| W12 | Ground (center console) | 39G |
| W29/7 | Ground (steering column) | 22F |
| X24/6 | Main wiring harness/rear interior lamps connector | 21F |
| X24/6 | Main wiring harness/rear interior lamps connector | 23F |
| X24/6 | Main wiring harness/rear interior lamps connector | 41F |
| X24/6 | Main wiring harness/rear interior lamps connector | 36E |
| X31 | Dome lamp/reading lamp connector | 32E |
| X43 | ATA [EDW]/central locking (CL [ZV]) connector | 4G |
| X43 | ATA [EDW]/central locking (CL [ZV]) connector | 28G |
| X5 | Rear door feed connector | 42H |
| X84/3 | Right front door DC/AC converter feed connector | 34F |
| Z4/1 | Circuit 30 (fused) connector sleeve, convenience and rear dome lamp | 23F |
| Z50/10 | Right interior lights door contact connector sleeve | 26B |
| Z50/2 | Connector sleeve 2 | 42F |
| Z50/6 | Connector sleeve 6 | 27C |
