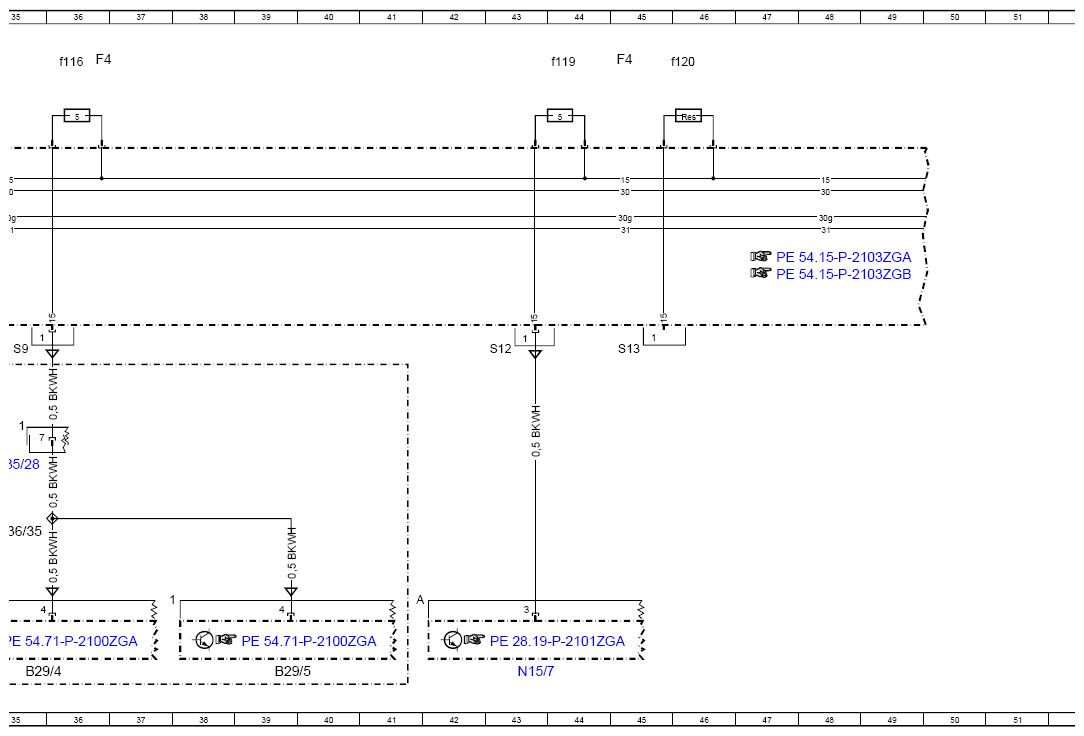

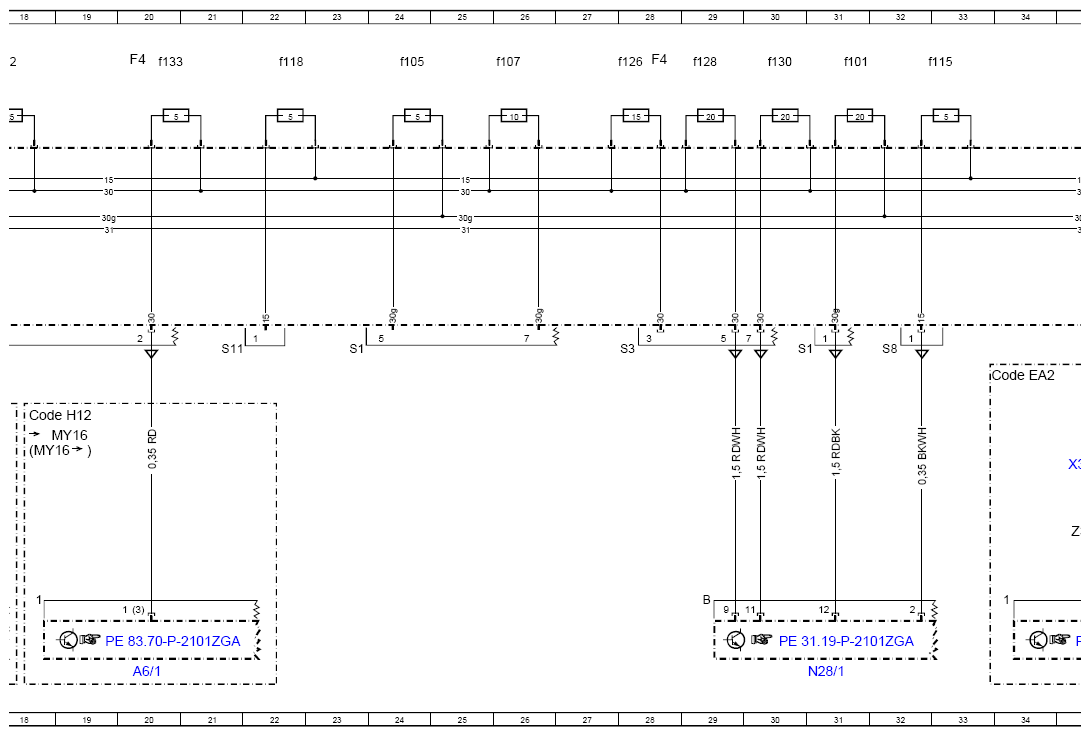

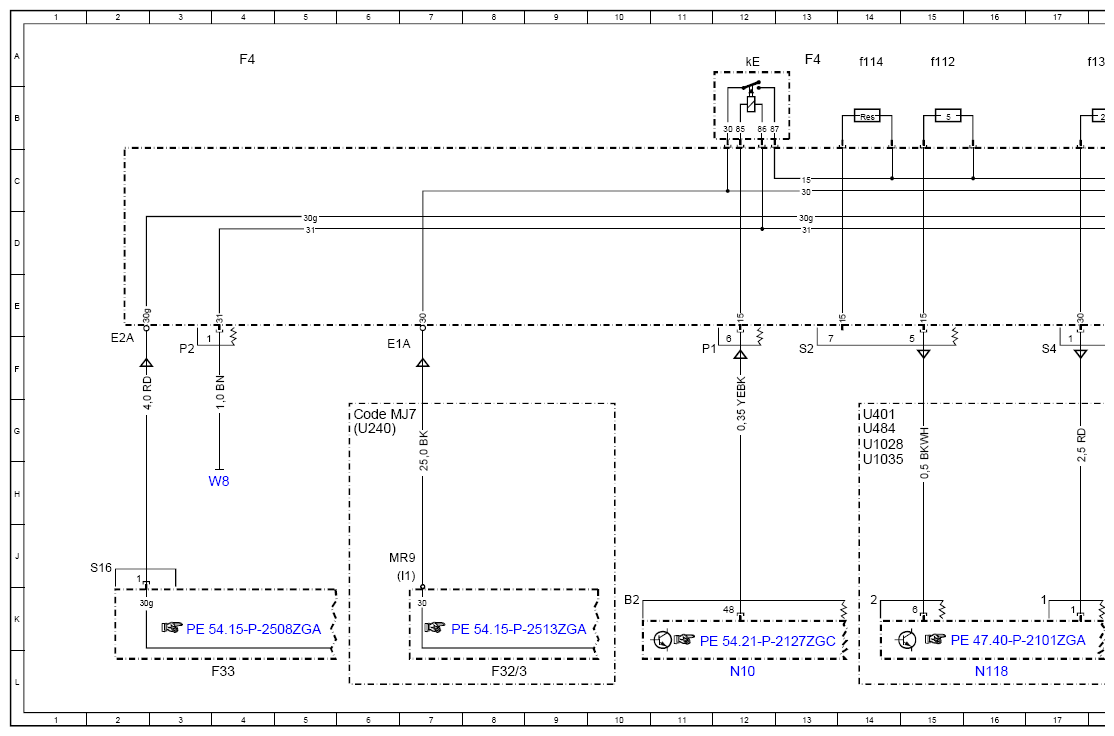

Rear Fuse And Relay Box Wiring Diagram - PE54.15-P-2103-97ZGC
Model 463
as of model year 2013 up to model year 2019
/YoM 12 model refinement package up to YoM 18 model refinement package, sheet 3
| Code: | Designation: | Position: |
|---|---|---|

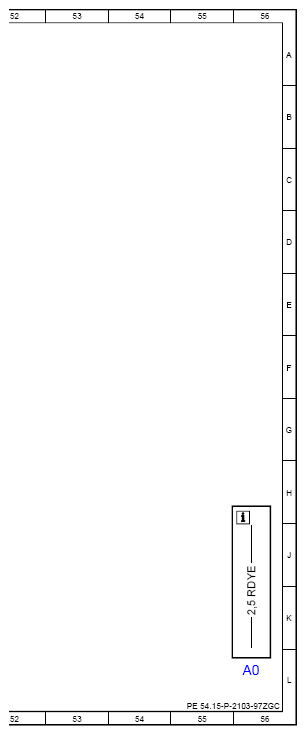

| AO | Color code key | 56L |
| A6/1 | Stationary heater radio remote control receiver | 20L |
| B29/4 | Left rear bumper intelligent radar sensor | 35L |
| B29/5 | Right rear bumper intelligent radar sensor | 39L |
| Code EA2 | Blind Spot Assist | 33F |
| Code H12 | Auxiliary heater | 18G |
| Code MJ7 | Stop/start function | 6G |
| F32/3 | Engine compartment prefuse box | 8L |
| F33 | Battery compartment prefuse box | 4L |
| F4 | Rear fuse and relay module | 4A |
| F4 | Rear fuse and relay module | 13A |
| F4 | Rear fuse and relay module | 28A |
| F4 | Rear fuse and relay module | 36A |
| F4 | Rear fuse and relay module | 45A |
| F4 | Rear fuse and relay module | 20A |
| F4f101 | Fuse 101 | 31A |
| F4f105 | Fuse 105 | 24A |
| F4f107 | Fuse 107 | 26A |
| F4f112 | Fuse 112 | 15A |
| F4f114 | Fuse 114 | 14A |
| F4f115 | Fuse 115 | 33A |
| F4f116 | Fuse 116 | 36A |
| F4f118 | Fuse 118 | 22A |
| F4f119 | Fuse 119 | 44A |
| F4f120 | Fuse 120 | 46A |
| F4f126 | Fuse 126 | 28A |
| F4f128 | Fuse 128 | 29A |
| F4f130 | Fuse 130 | 30A |
| F4f132 | Fuse 132 | 18A |
| F4f133 | Fuse 133 | 20A |
| F4kE | Circuit 15 relay | 12A |
| N10 | SAM control unit | 12L |
| N118 | Fuel pump control unit | 16L |
| N15/7 | Transfer case control unit | 43L |
| N28/1 | Trailer recognition control unit | 31L |
| U1028 | Valid for engine 157 | 14G |
| U1035 | Valid for gasoline engine 279 | 14H |
| U240 | Valid for all except ECO start/stop function | 6G |
| U401 | Valid for engine 176 | 14G |
| U484 | Valid for M273 ME | 14G |
| W8 | Liftgate ground point | 4H |
| X35/28 | Rear bumper parking system electrical connector | 35H |
| Z36/35 | Rear radar sensors sensor power supply connector sleeve | 35J |
