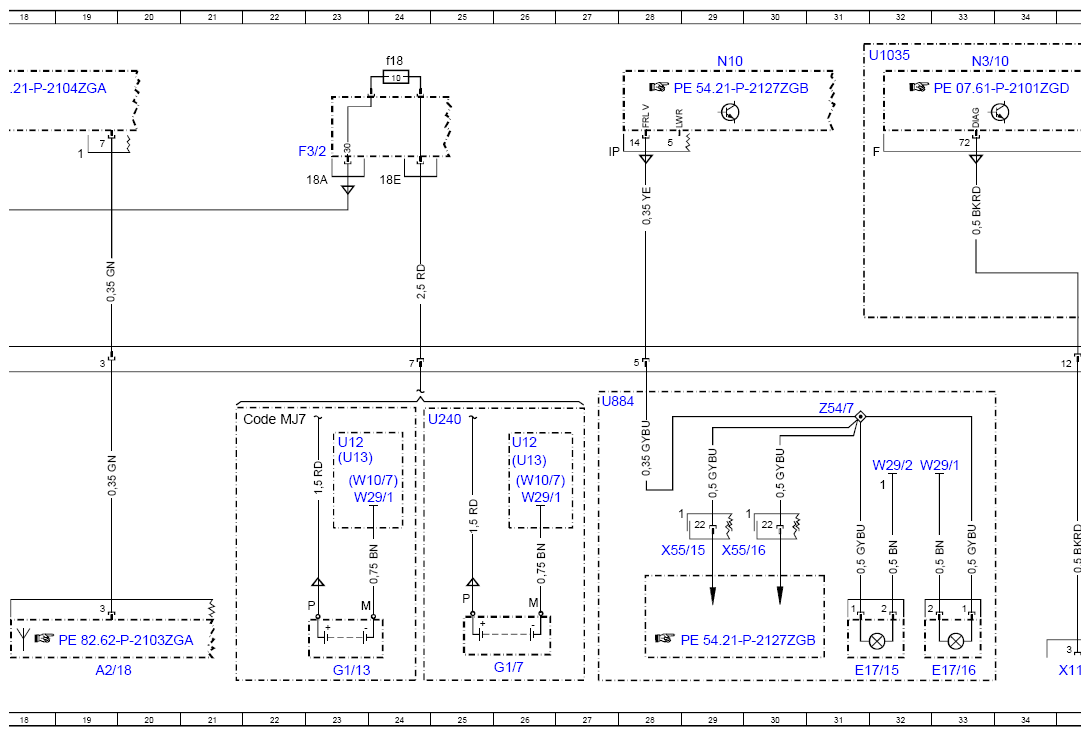

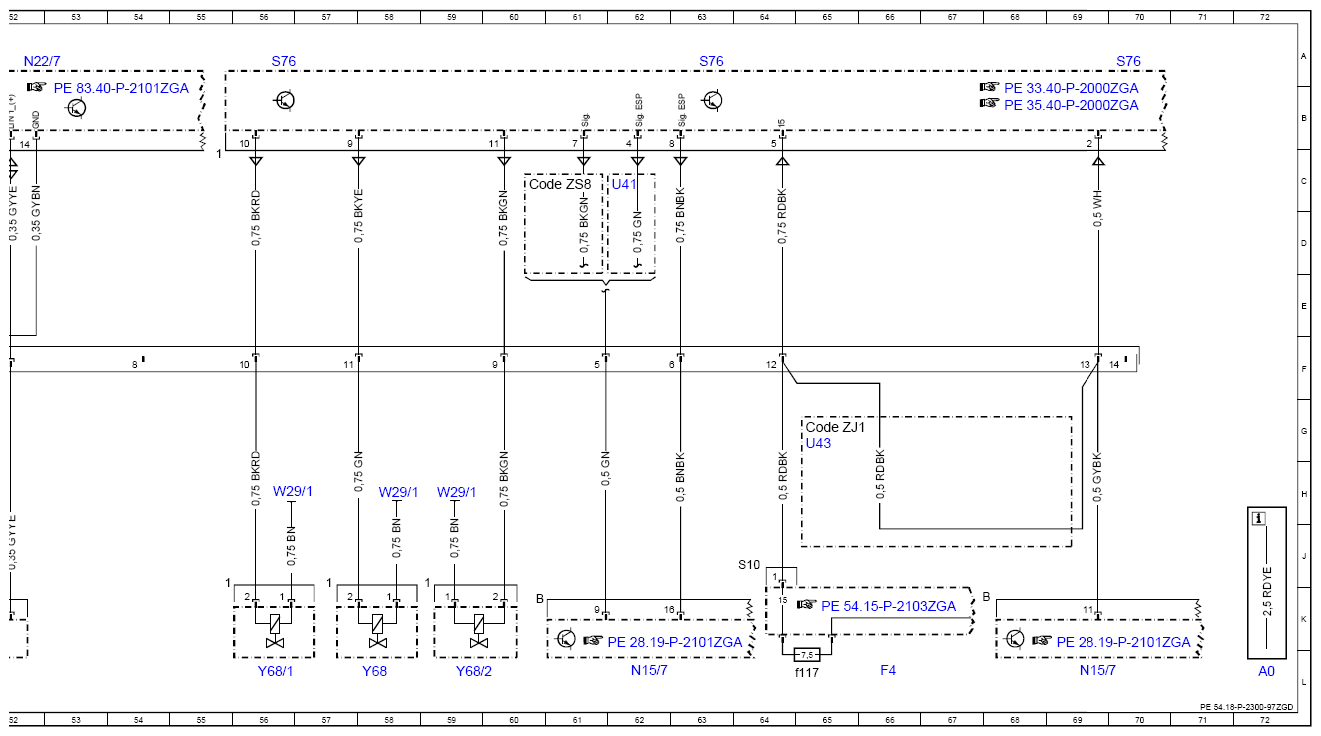

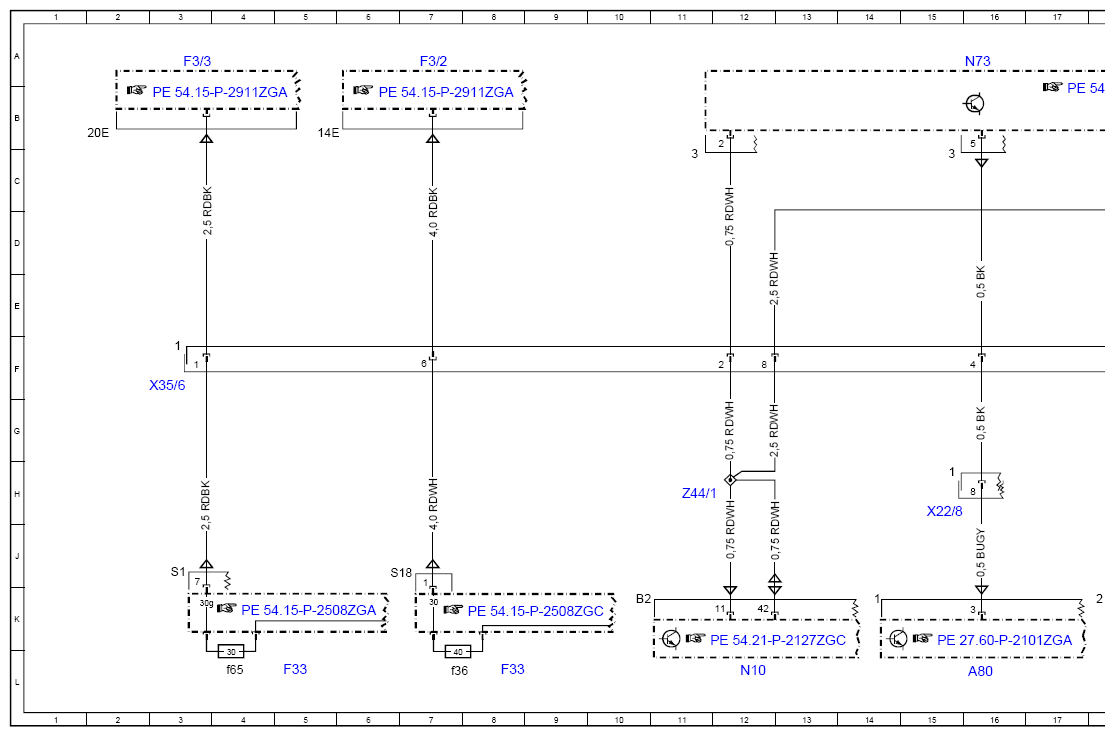

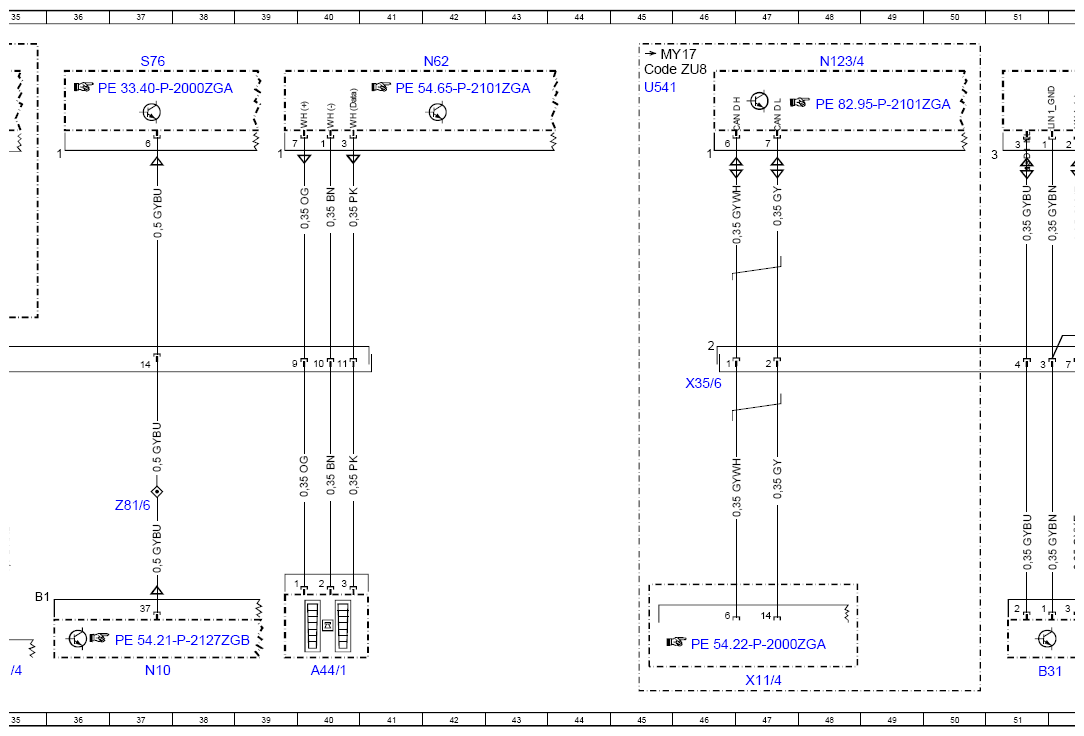

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97ZGD
Model 463 as of model year 2013 up to model year 2019
/YoM 12 model refinement package up to YoM 18 model refinement package, X35/6 (1), X35/6 (2)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| A2/18 | CL [ZV] antenna amplifier | 19L |
| A44/1 | Front parking system warning indicator | 40L |
| A80 | Intelligent servo module for DIRECT SELECT | 16L |
| B31 | Air quality sensor | 51L |
| Code MJ7 | Stop/start function | 22G |
| Code ZJ1 | Japan version | 65G |
| Code ZS8 | Protection class VR7/glass area VR9 | 60C |
| Code ZU8 | USA version | 45A |
| E17/15 | Right front footwell lamp | 31L |
| E17/16 | Left front footwell lamp | 33L |
| F3/2 | Cockpit circuit 30 fuse box | 7A |
| F3/2 | Cockpit circuit 30 fuse box | 22C |
| F3/2f18 | Fuse 18 | 24A |
| F3/3 | Cockpit circuit 30g fuse box | 3A |
| F33 | Battery compartment prefuse box | 5L |
| F33 | Battery compartment prefuse box | 8L |
| F33f36 | Fuse 36 | 7L |
| F33f65 | Fuse 65 | 4L |
| F4 | Rear fuse and relay module | 66L |
| F4f117 | Fuse 117 | 65L |
| G1/13 | ECO start/stop function additional battery | 23L |
| G1/7 | Additional battery | 26L |
| N10 | SAM control unit | 12L |
| N10 | SAM control unit | 37L |
| N10 | SAM control unit | 29A |
| N123/4 | Emergency call system control unit | 48A |
| N15/7 | Transfer case control unit | 62L |
| N15/7 | Transfer case control unit | 69L |
| N22/7 | Climate control and operating unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 33A |
| N62 | Parking system control unit | 42A |
| N73 | Electronic ignition switch control unit | 16A |
| S76 | Differential lock button group | 70A |
| S76 | Differential lock button group | 37A |
| S76 | Differential lock button group | 56A |
| S76 | Differential lock button group | 63A |
| U1035 | Valid for gasoline engine 279 | 31A |
| U12 | Valid for left-hand drive vehicles | 23G |
| U12 | Valid for left-hand drive vehicles | 26G |
| U13 | Valid for right-hand drive vehicles | 23H |
| U13 | Valid for right-hand drive vehicles | 26H |
| U240 | Valid for all except ECO start/stop function | 24G |
| U41 | Not valid for code ZS8 Protection class VR7/glass area VR9 | 62C |
| U43 | Valid for ECE | 65G |
| U541 | Valid for TELEAID emergency call system | 45B |
| U884 | Valid for ambiance illumination | 27G |
| W10/7 | Left battery recess ground point | 23H |
| W10/7 | Left battery recess ground point | 26H |
| W29/1 | A-pillar ground connection, left | 58H |
| W29/1 | A-pillar ground connection, left | 59H |
| W29/1 | A-pillar ground connection, left | 56H |
| W29/1 | A-pillar ground connection, left | 32H |
| W29/1 | A-pillar ground connection, left | 23H |
| W29/1 | A-pillar ground connection, left | 26H |
| W29/2 | Right A-pillar ground connection | 32H |
| X11/4 | Diagnostic connector | 35L |
| X11/4 | Diagnostic connector | 47L |
| X22/8 | Fully integrated transmission controller unit electrical connector | 15H |
| X35/6 | Instrument panel and module box electrical connector | 3F |
| X35/6 | Instrument panel and module box electrical connector | 46F |
| X55/15 | Driver seat electrical connector | 29J |
| X55/16 | Front passenger seat electrical connector | 30J |
| Y68 | Differential lock control solenoid valve, transfer case | 58L |
| Y68/1 | Differential lock control solenoid valve, rear axle | 56L |
| Y68/2 | Differential lock control solenoid valve, front axle | 59L |
| Z44/1 | Backup battery connector sleeve | 11H |
| Z54/7 | Footwell lamps connector sleeve | 31G |
| Z81/6 | Circuit 58d connector sleeve | 37H |
