Remove/Install Instrument Cluster - AR54.30-P-6015XG

Model 463

as of Model year 2019

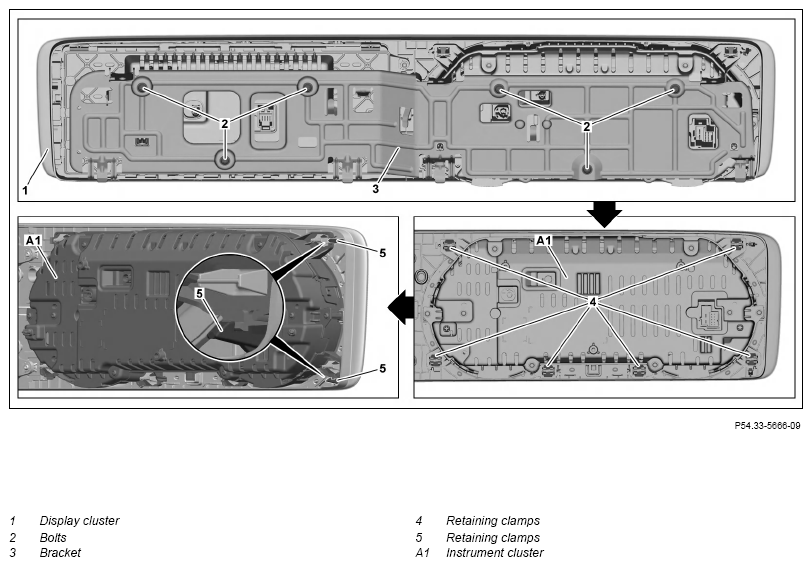

Fig 1: Instrument Cluster Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Commission instrument cluster (A1).	When replacing the instrument cluster (A1).
			AD00.00-P-2000-04B
2	Remove display cluster (1).	The instrument cluster (A1) can be removed or replaced separately. To do so, perform further operation steps.
		Model 463 as of Model year 2019 with code J25 (Widescreen cockpit) The instrument cluster (A1) cannot be removed or replaced separately. With requirement the display cluster (1). Model 463 as of Model year 2019 except code J25 (Widescreen cockpit)	AR54.30-P-6023XG
	Remove/install except code J25 (Widescreen cockpit)
3	Unscrew bolts (2).
4	Remove holder (3).
5	Unclip instrument cluster (A1) from retaining clamps (4, 5) and take off.	Check that instrument cluster (A1) is correctly seated in retaining clips (4, 5).
6	Install in reverse order.
